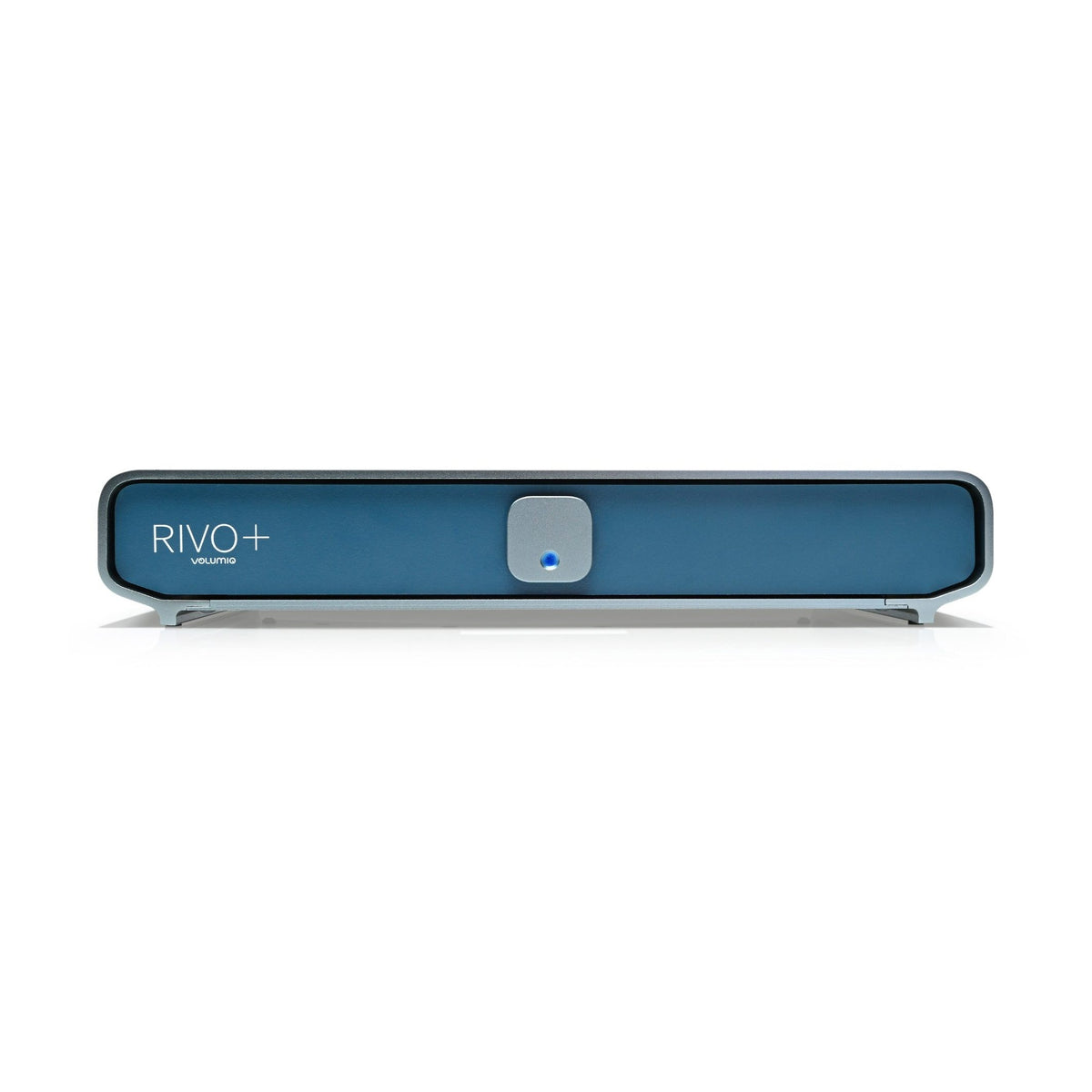

Volumio Rivo Plus Digital Transport
Volumio Rivo Plus Digital Transport
RRP $1599

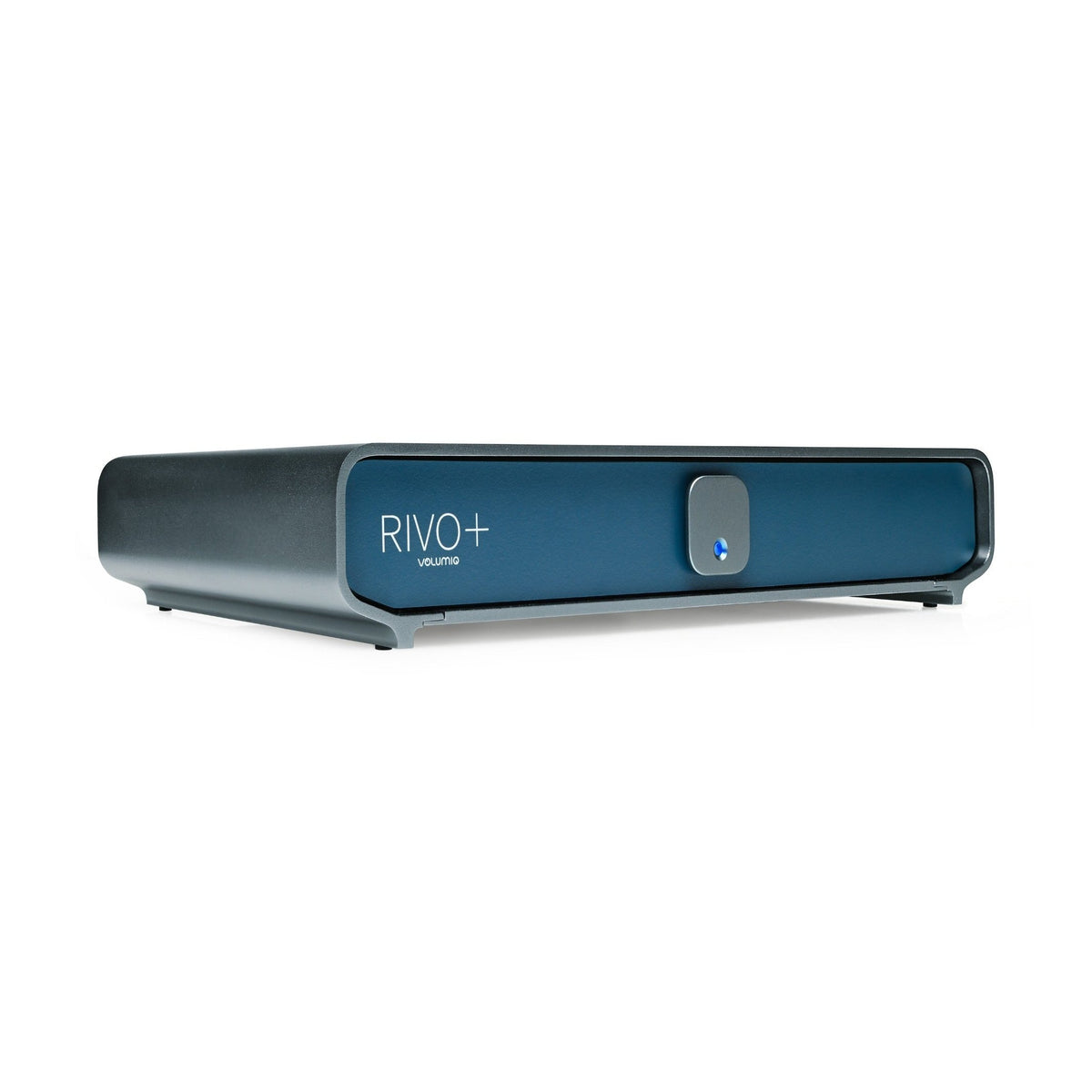

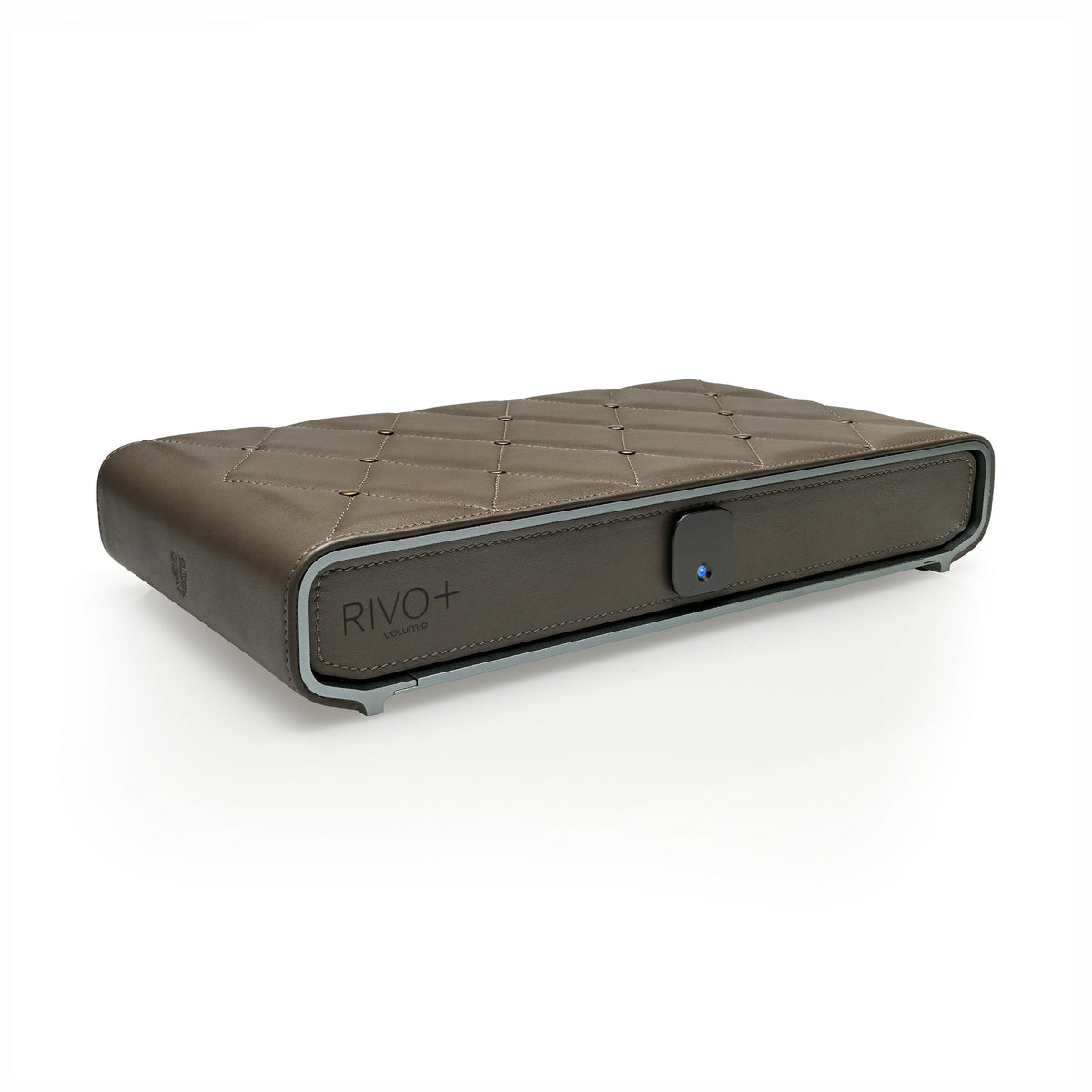

Rivo Plus is Volumio's enhanced digital transport, building on the original Rivo with a dedicated ASIC for S/PDIF and AES/EBU generation, upgraded MEMS clocking, I2S/DSD over HDMI, and a 12 V trigger output. It is designed for listeners who want the highest-quality digital handoff to an external DAC.
The Ultimate Digital Transport
Rivo Plus elevates the original Rivo architecture with a dedicated ASIC that handles S/PDIF and AES/EBU output generation independently of the main CPU. The goal is cleaner digital output, lower jitter and more consistent timing.
Enhanced Audio via I2S/DSD over HDMI
I2S over HDMI adds another high-performance connection option for compatible DACs, supporting high-resolution PCM and DSD. Adjustable pinout routing broadens compatibility with a range of I2S-equipped digital converters.
Engineered for Signal Precision
Upgraded MEMS clocks in the USB hub improve reclocking and signal integrity, while low-noise regulation supports the dedicated digital output circuitry. The design is engineered to maintain stable timing and reduce susceptibility to temperature drift and component aging.
Flexible Digital Connectivity

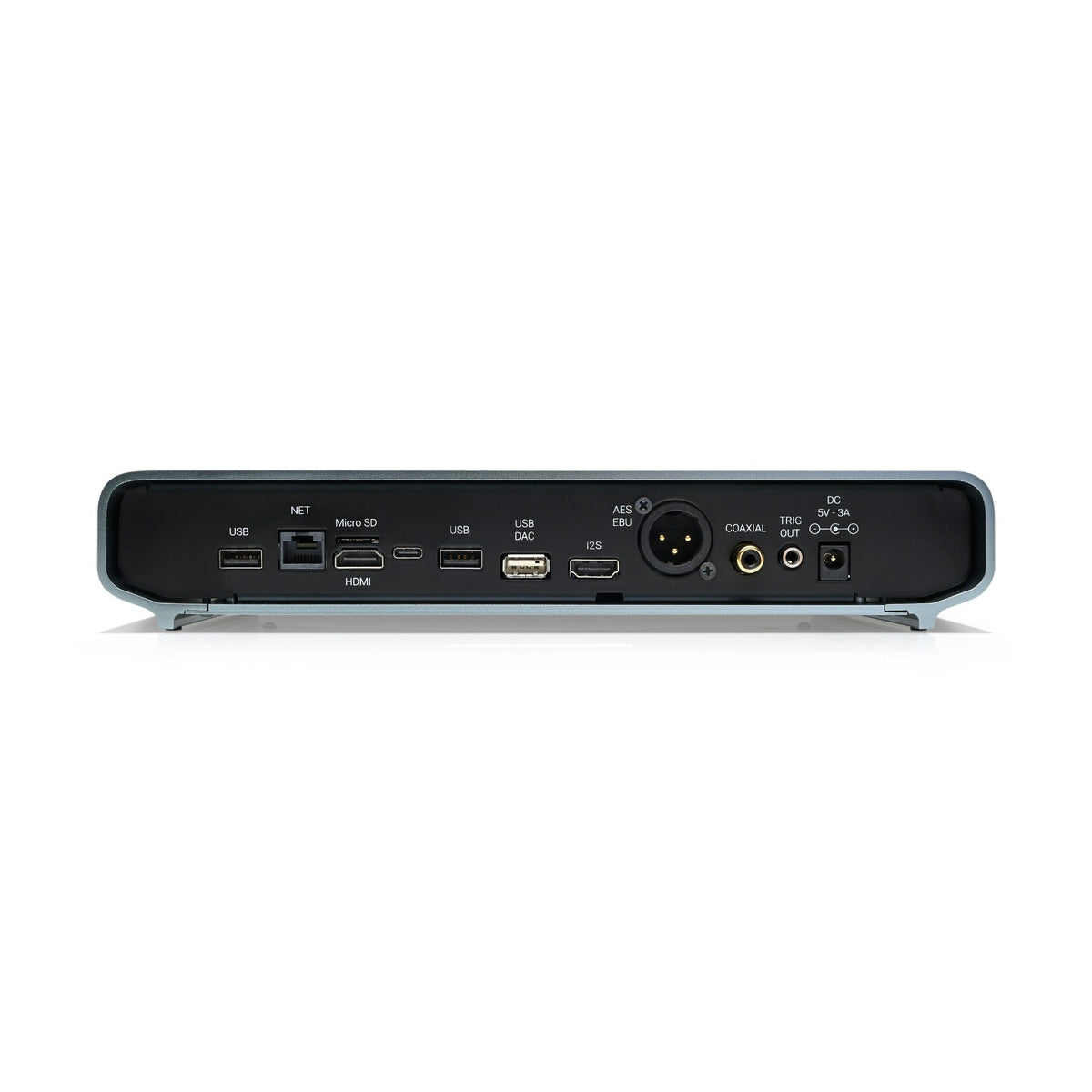

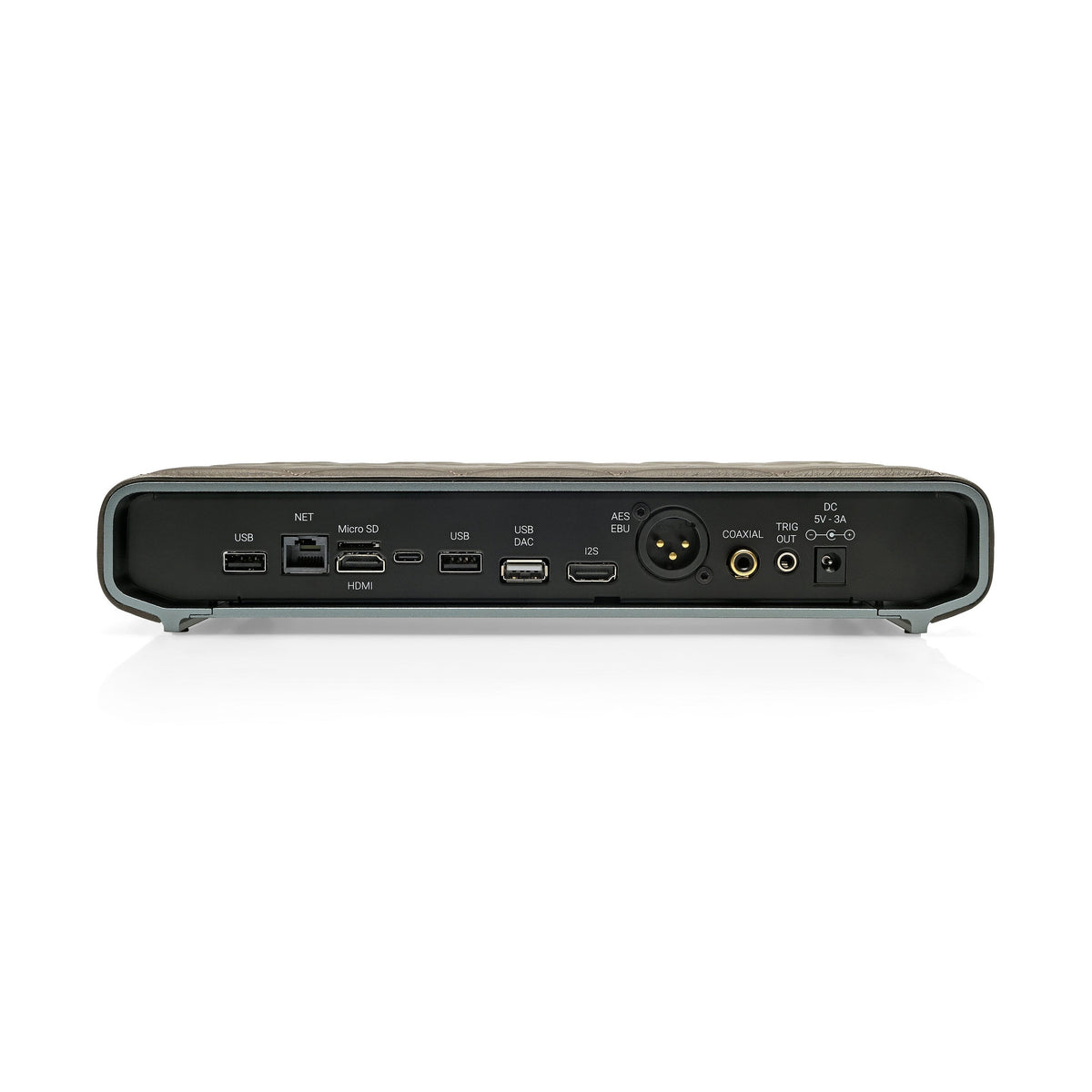

Rivo Plus includes USB digital output, S/PDIF coaxial, AES/EBU, I2S over HDMI, network connectivity and a 12 V trigger output for coordinated system power control.
Volumio Premium Built In
Rivo Plus runs Volumio and includes Volumio Premium features, with access to supported streaming services, local and network libraries, internet radio, multi-room playback and supported plugins. It is also Roon Ready.
Audio Specifications
| USB Output | Up to PCM 1536 kHz / 32-bit and DSD1024 with multi-room disabled |
| I2S over HDMI | Up to PCM 768 kHz / 32-bit and DSD512; DSD256 with multi-room enabled |
| S/PDIF Coaxial Output | Up to PCM 192 kHz / 24-bit and DSD64 via DoP |
| AES/EBU Digital Output | Up to PCM 192 kHz / 24-bit and DSD64 via DoP |
| Supported Formats | DSD, WAV, FLAC, ALAC, AAC, Vorbis, MP3 and others |
| Supported Services | AirPlay via Shairport Sync, Spotify Connect, TIDAL/TIDAL Connect, Qobuz/Qobuz Connect |
| UPnP/DLNA | Renderer with OpenHome support |
Hardware Specifications
| USB DAC Output | USB-A 2.0 with power filtering |
| USB Storage | 1 × USB-A 2.0, 1 × USB-A 3.0 |
| I2S Output | HDMI with adjustable pinout routing |
| Video Output | Volumio OS app mirroring over HDMI up to 4K / 60 fps |
| Trigger Out | 3.5 mm jack, 12 V, positive tip |
| LAN | Gigabit 10/100/1000M |
| Wi-Fi | 802.11a/b/g/n/ac, 2.4 GHz and 5 GHz |
| Bluetooth | 5.0 |
| CPU | Amlogic S905D3, quad-core 1.9 GHz |
| RAM | 2 GB DDR4 |
| Internal Storage | 16 GB eMMC |
| Power | 5 V DC / 3 A |
| Power Input | 5.5 × 2.1 mm barrel jack, positive polarity |
| Dimensions | 27 × 15 × 5 cm |
| Weight | 2.5 kg |
Included in the Box
- Volumio Rivo Plus
- 5 V / 3 A power supply
- NFC/QR code information card
