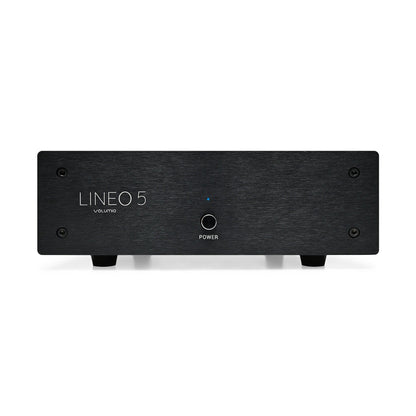

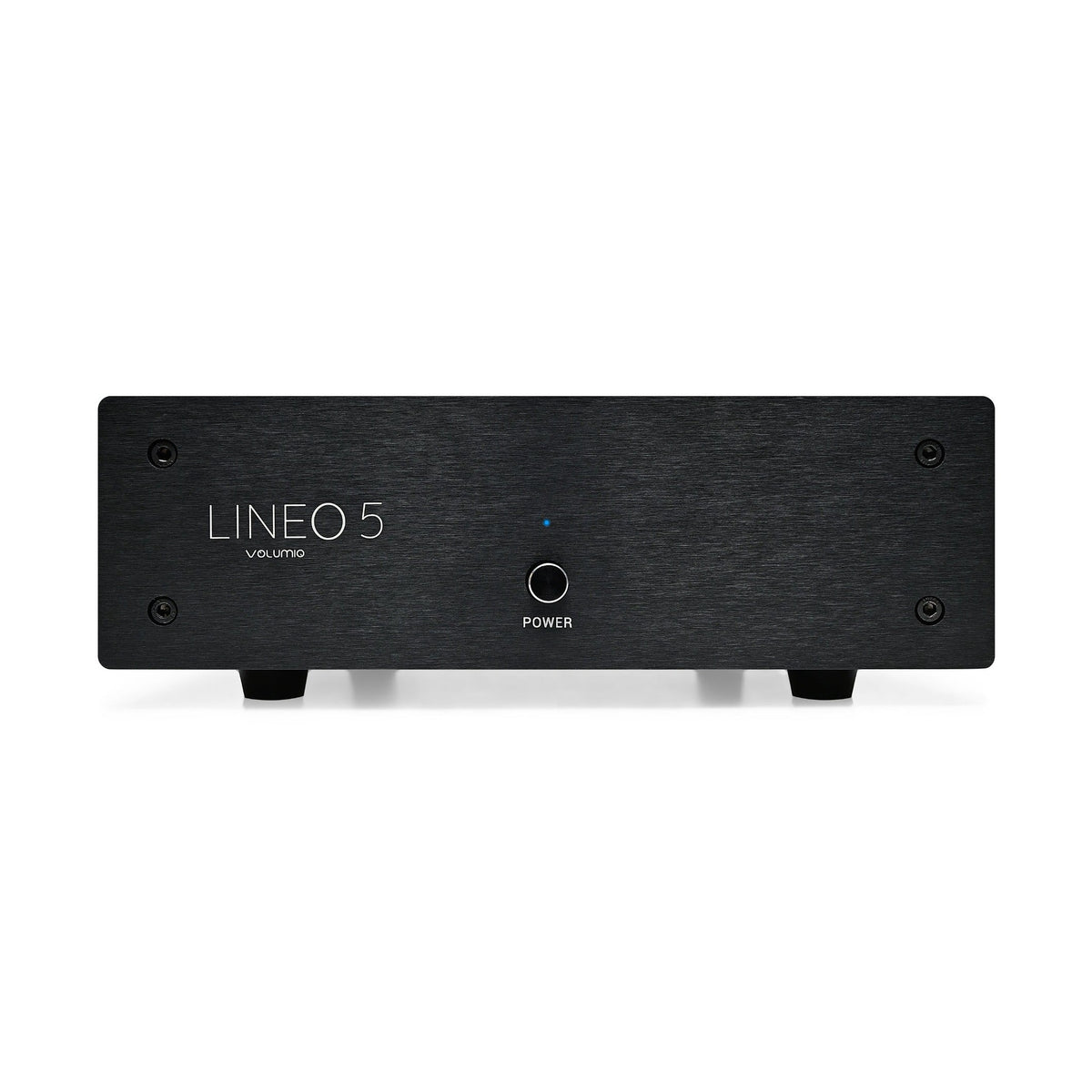

Volumio Lineo5 Linear Power Supply
Volumio Lineo5 Linear Power Supply
RRP: $599
Lineo5 is Volumio's low-noise 5V / 5A linear power supply, designed to provide clean, stable power for Volumio streamers and other compatible 5V audio components.
Clean Linear Power
Lineo5 replaces a conventional switching supply with a linear power architecture designed to reduce electrical noise and provide a stable current source for sensitive digital audio electronics.
Designed for Volumio
Lineo5 is recommended for use with compatible Volumio products including Rivo, Rivo Plus, Preciso, Primo V2, Primo V3 and Primo Plus.
Versatile AC Input
A switchable input supports both 110–120 V / 60 Hz and 220–240 V / 50 Hz mains operation, making Lineo5 suitable for use in multiple regions.
Key Features
- Low-noise linear power supply design
- 5 V DC output
- Up to 5 A output current
- Supports 110–120 V and 220–240 V AC input

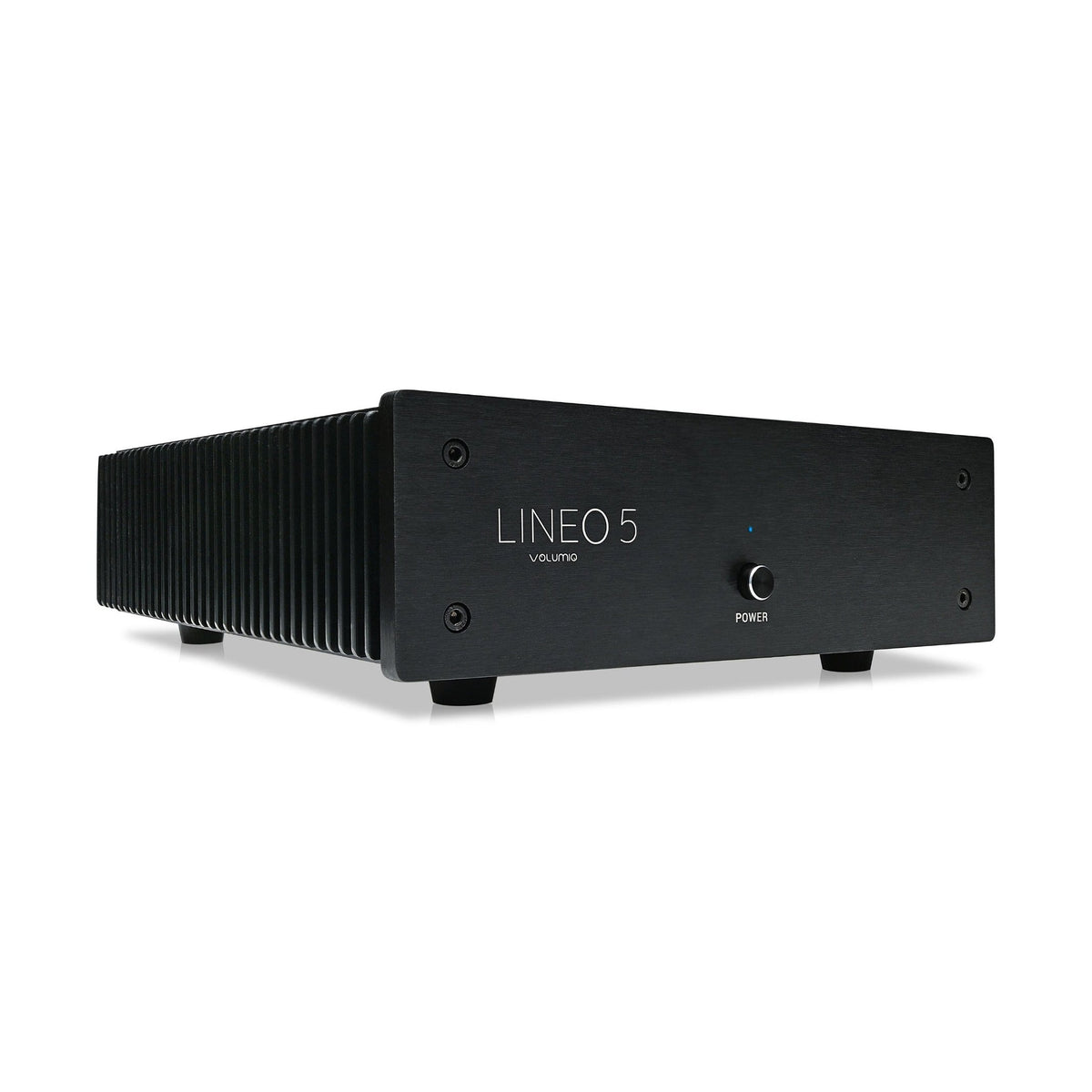

- Aluminum chassis with integrated side heatsinks
- Premium transformer, capacitors and voltage regulation
- 5.5 × 2.1 mm barrel output cable, tip positive
Compatibility
- Volumio Rivo
- Volumio Rivo Plus
- Volumio Preciso
- Volumio Primo V2
- Volumio Primo V3
- Volumio Primo Plus
Hardware Specifications
| Input Voltage | 110–120 V / 60 Hz AC or 220–240 V / 50 Hz AC |
| Output Voltage | 5 V DC |
| Output Current | 5 A maximum |
| Maximum Power Consumption | 90 W at full output load |

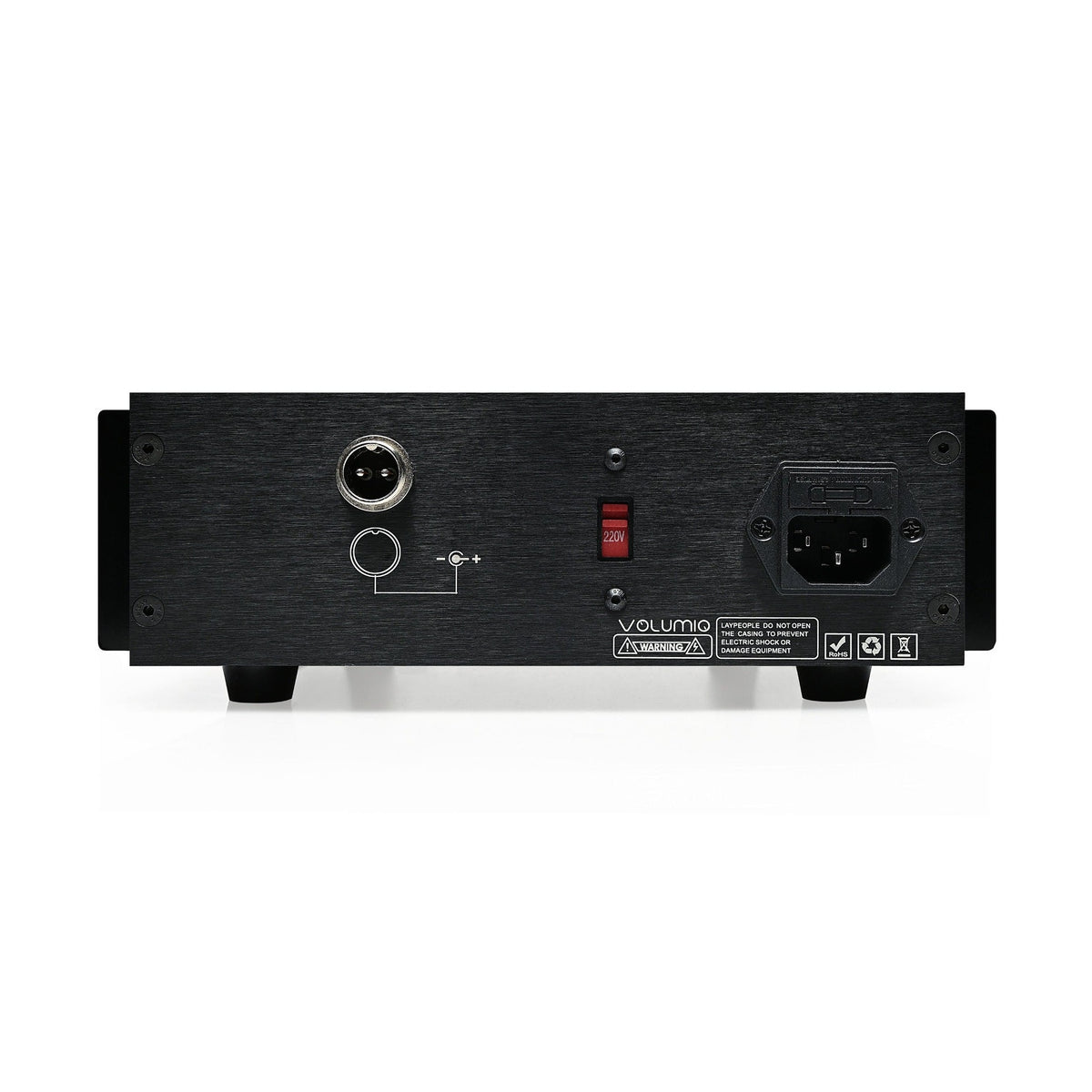

| Output Connector | 5.5 × 2.1 mm barrel jack |
| Output Polarity | Tip positive |
| Dimensions | 27 × 22.7 × 7.7 cm |
| Weight | 4.0 kg |
Included in the Box
- Volumio Lineo5 linear power supply
- AC power cables for EU, US, UK and AU/NZ
- Bipolar-to-DC barrel output cable
