Velodyne Acoustics Sub Contractor In Wall Series Subwoofer Amplifier SC-600DE
Velodyne Acoustics Sub Contractor In Wall Series Subwoofer Amplifier SC-600DE
RRP: $1400
Performance like nothing else
No compromises: Built directly into the wall, these bass wonders remain completely invisible despite impressive performance. Due to inconspicuous wall mounting, subwoofers of the SubContractor series are not seen but felt and heard from their acoustically optimal working environment. The uncompromising solution for professionals.
Specifications
Images
Downloads
The innovative triple-vector design of the SC-600 IW ensures superior performance with minimal vibration transmission to the installation wall. The two 6.5-inch long-throw drivers work together with two passive diaphragms to achieve a total diaphragm area of a lush 14 inches. The system amplifier SC-600 D provides 400 watts of impulse power, while the sister model SC-602 with 2 x 400 watts also helps two SC-600 IW subwoofers to peak performance.

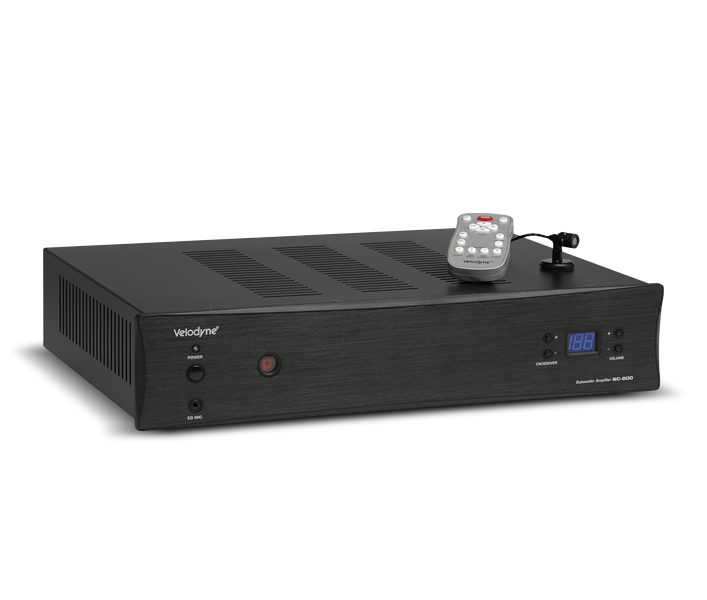

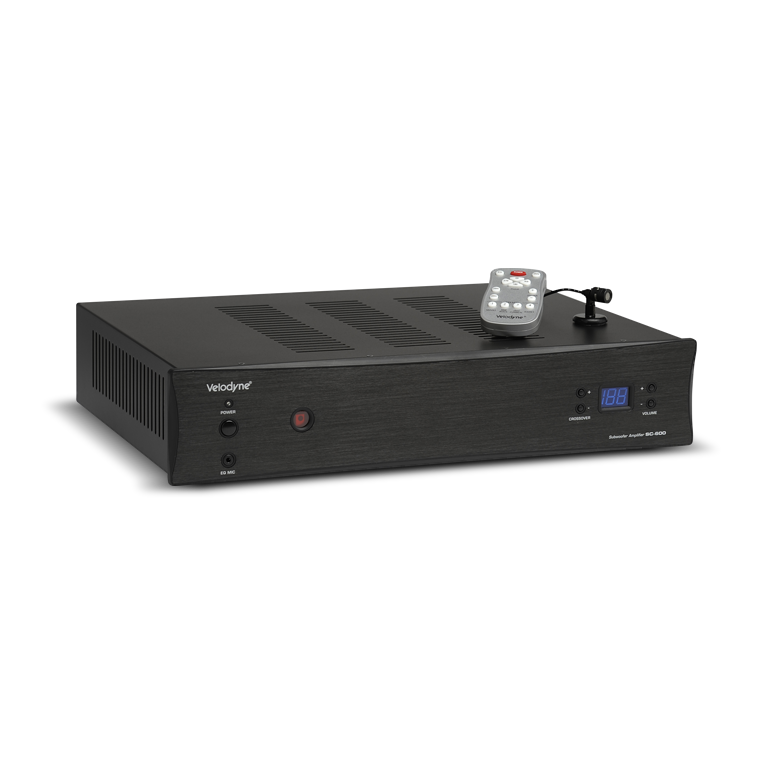

Velodyne Acoustics SC-600D/SC-602
- External system power amplifier SC-600D (for one subwoofer SC-IW) or SC-602 (for two subwoofers SC-IW)
- 1 x 200 watts RMS /400 watts impulse power (SC-600D)
- 2 x 200 Watt RMS /400 Watt impulse power (SC-602)
- Automatic calibration with DSP; supplied measuring microphone
- phase adjustment
- Overload protection and automatic switch-off
Amplifier Class AB | 400 watts dynamic 200 watts RMS power |
|||
---|---|---|---|---|
High Pass Crossover | 80 Hz (6 dB / octave) | |||
Low Pass Crossover | 30 – 160 Hz, defeatable, 24 dB / octave slope | |||
Phase | 0°, 90°, 180°, 270° | |||
Input | Line and Speaker level | |||
Output | Line-level, 80 Hz up, speaker level for up to two subwoofers | |||
Power Selector | Off / Auto / On | |||
Dimensions (W/H/D) | 9 x 43,3 x 33 cm | |||
Weight | 8 kg |
