Velodyne Acoustics SC-600 IW X Sub Contractor In Wall Series Subwoofer
Velodyne Acoustics SC-600 IW X Sub Contractor In Wall Series Subwoofer
RRP: $1800
THIS IS THE NEW SC IW 600 X
The all new SC IW 600 X is an affordable high output in-wall subwoofer that fits flush in a standard 2x4 studded wall. It delivers dynamic bass for Home theatre and music applications. With its own distinctive identity, the all new SC IW 600 X combines the essence of its predecessor with all new technologies used in new Velodyne Acoustics products today. Each of the 4 driver components of SC IW 600 X has been re-evaluated and significantly improved. A highly efficient Carbon Fiber front firing driver produces amazing bass output, that brings your favorite movies and music to life. This new SC IW 600 X subwoofer set a new standard in high performance, high value bass performance with incredible authority, accuracy and low distortion.
New Acoustic Design with updated Four Driver configuration

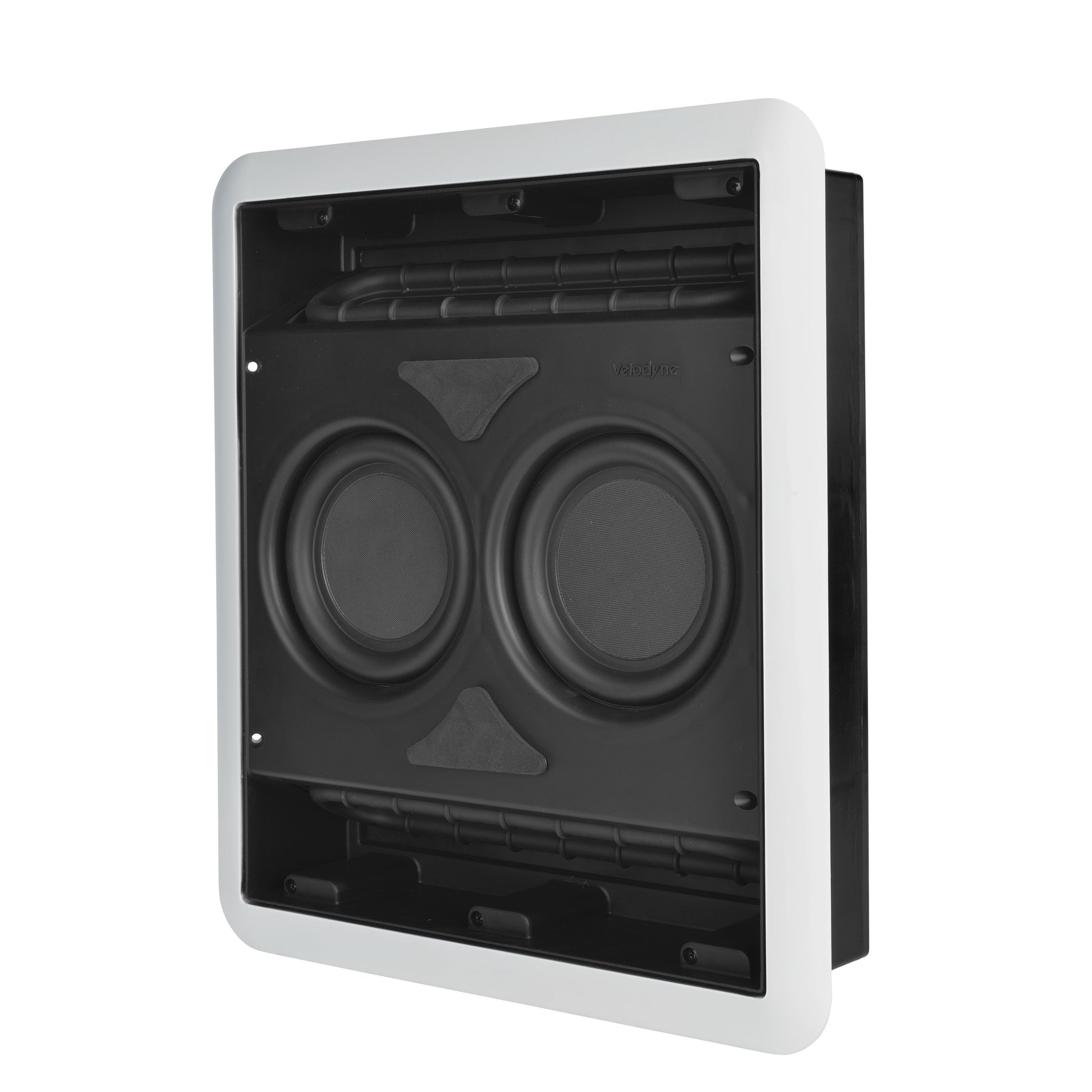

The SC IW 600 X incorporates two active long throw completely new designed 6,5”(16cm) drivers with 2” four layer voice coils and two 14” x 3,5” passive radiators. Combined in a counterbalanced design that limits wall vibration. This unique approach creates as much radiating surface as one 14,5” driver but fits easily in a 2” x 4” wall with a small 16,5” x 19” (42cm x 48cm) footprint. The two active 6.5“ drivers are equipped with a completely newly developed carbon fiber cone a low profile flow-optimized basket and a motor unit with a multi-ventilated 2“ voice coil that can provide more Xmax as its predecessor.
Easy to install Design

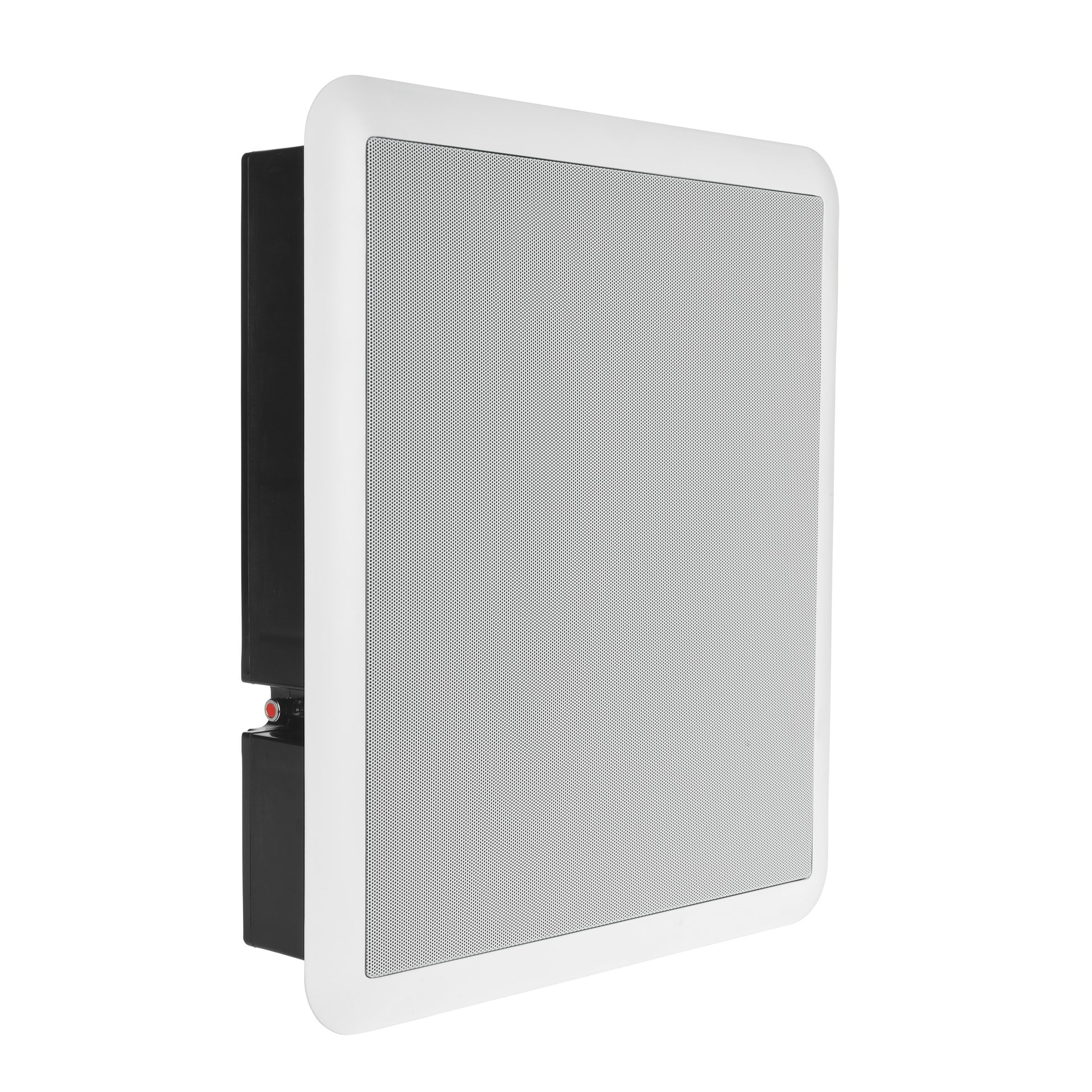

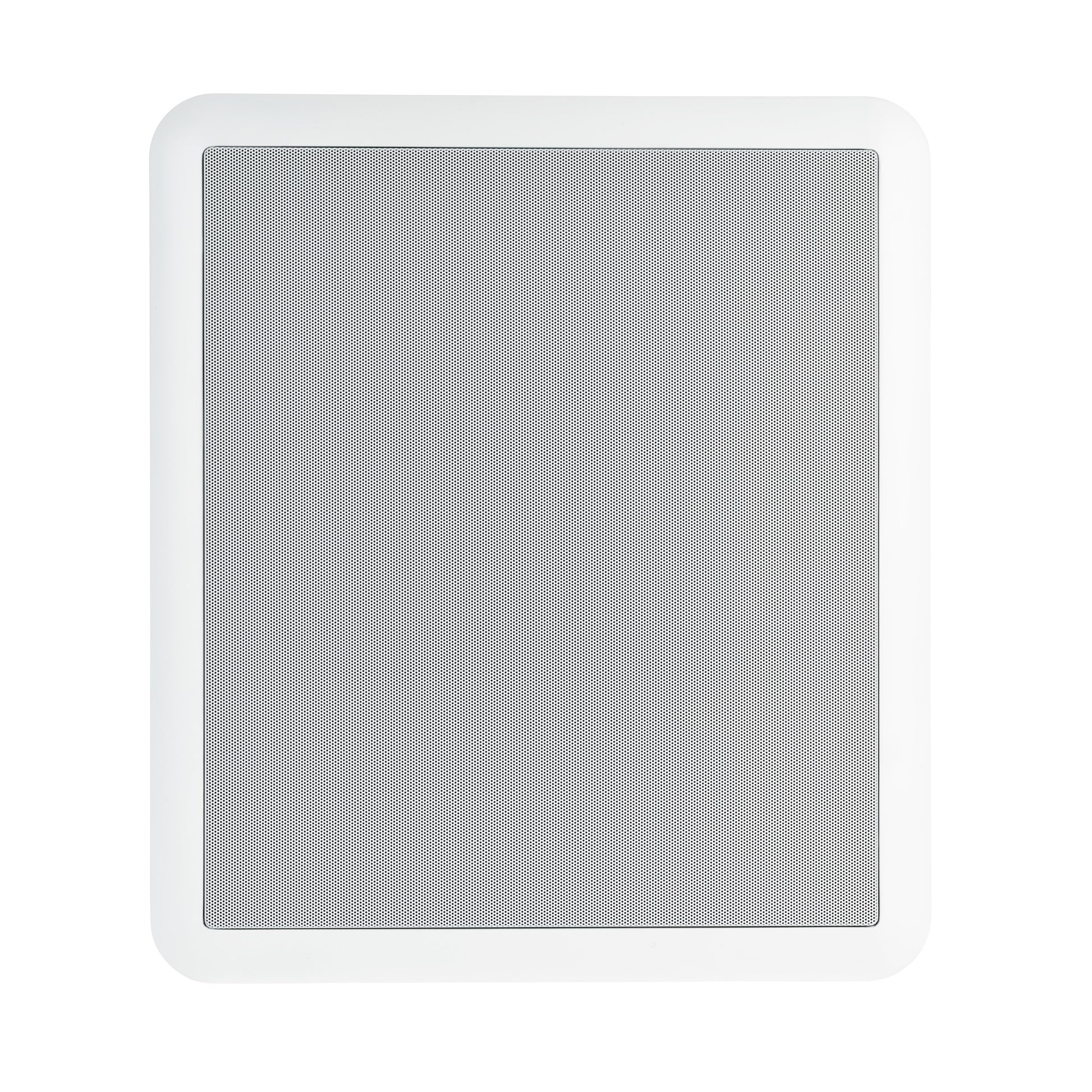

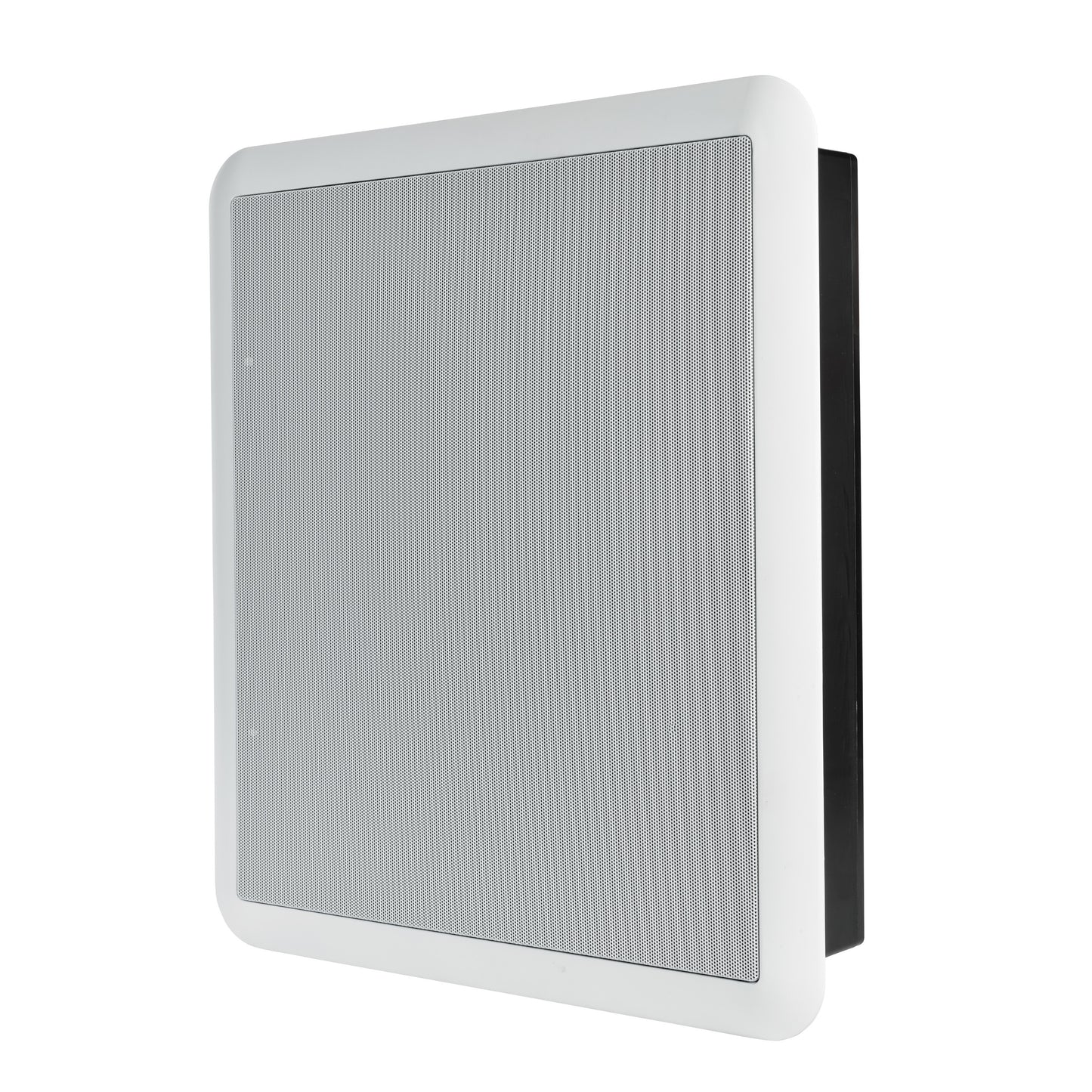

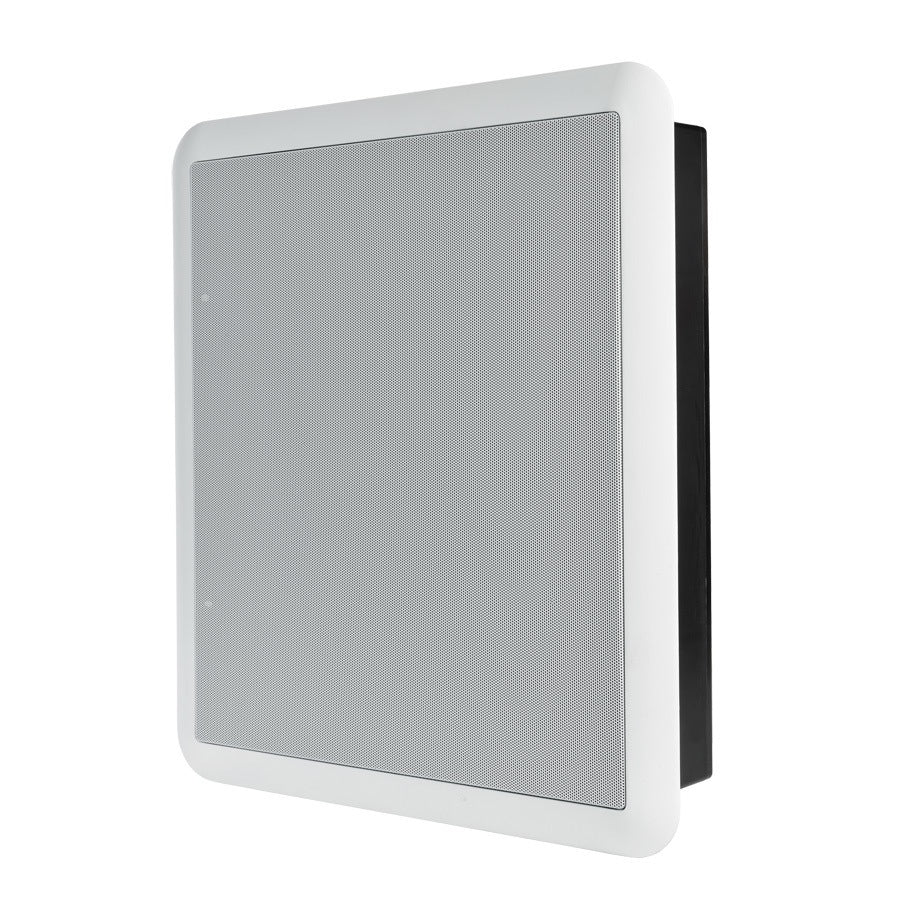

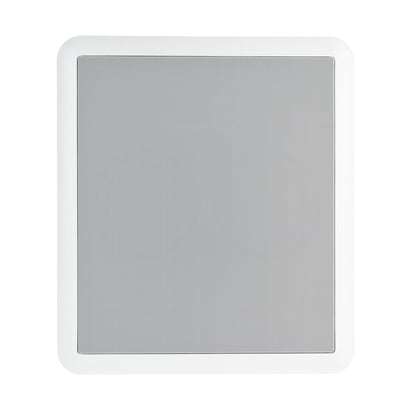

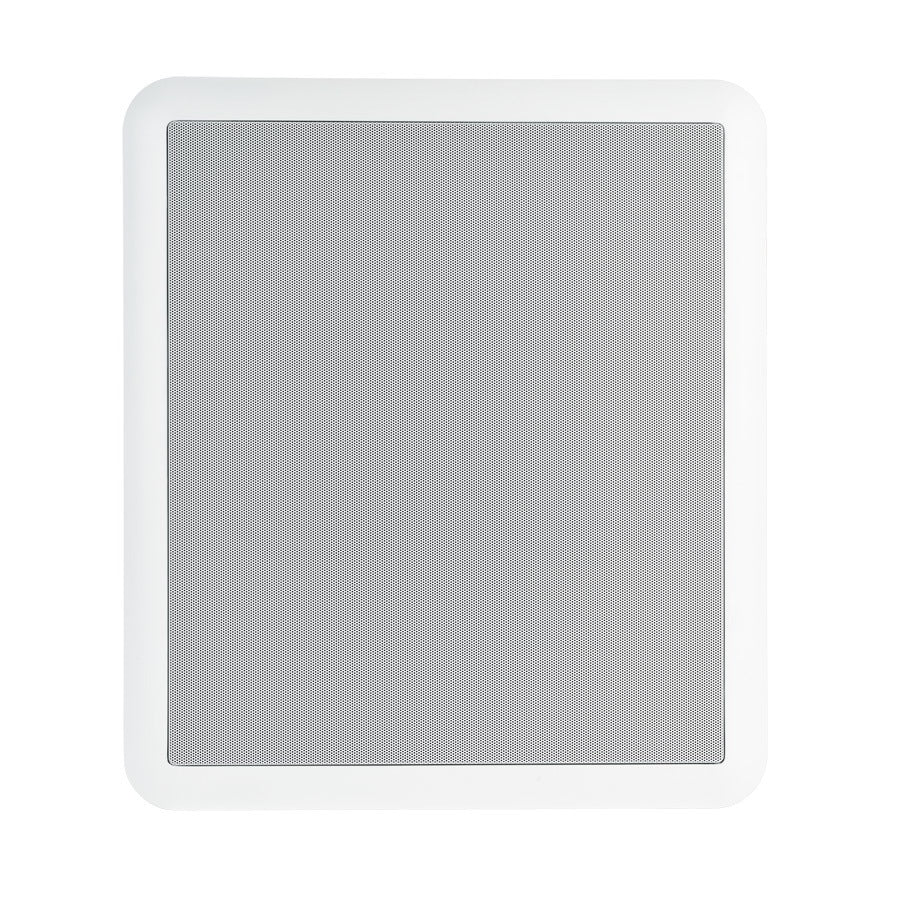

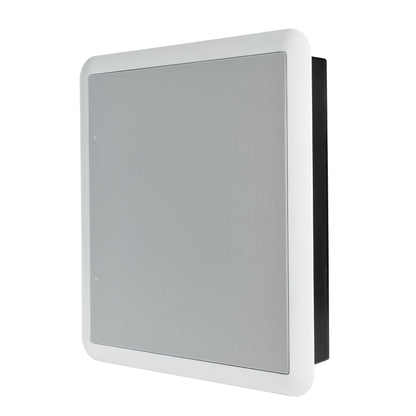

The completely new housing design of the SC IW 600 X is easy to install with its L-shaped mounting system, which is suitable for both new builds and retrofits. The completely new enclosure, manufactured using a special injection molding process, offers even more stability for distortion-free bass reproduction. When redesigning the SC IW 600 X, we focused on the most inconspicuous wall mounting possible and the entire front baffle frame is now covered by a white paintable grill. As this new SC IW 600 X is producing more SPL as its predecessor we also redesigned the grill by using hexagon openings to assure a 30% better airflow through the grill to prevent any unwanted noise or even rattling. Extra strong neodymium magnets with a thin felt layer, as well as new optimized foam rubber inserts additionally prevent resonances from the grill.
Subwoofer Specs

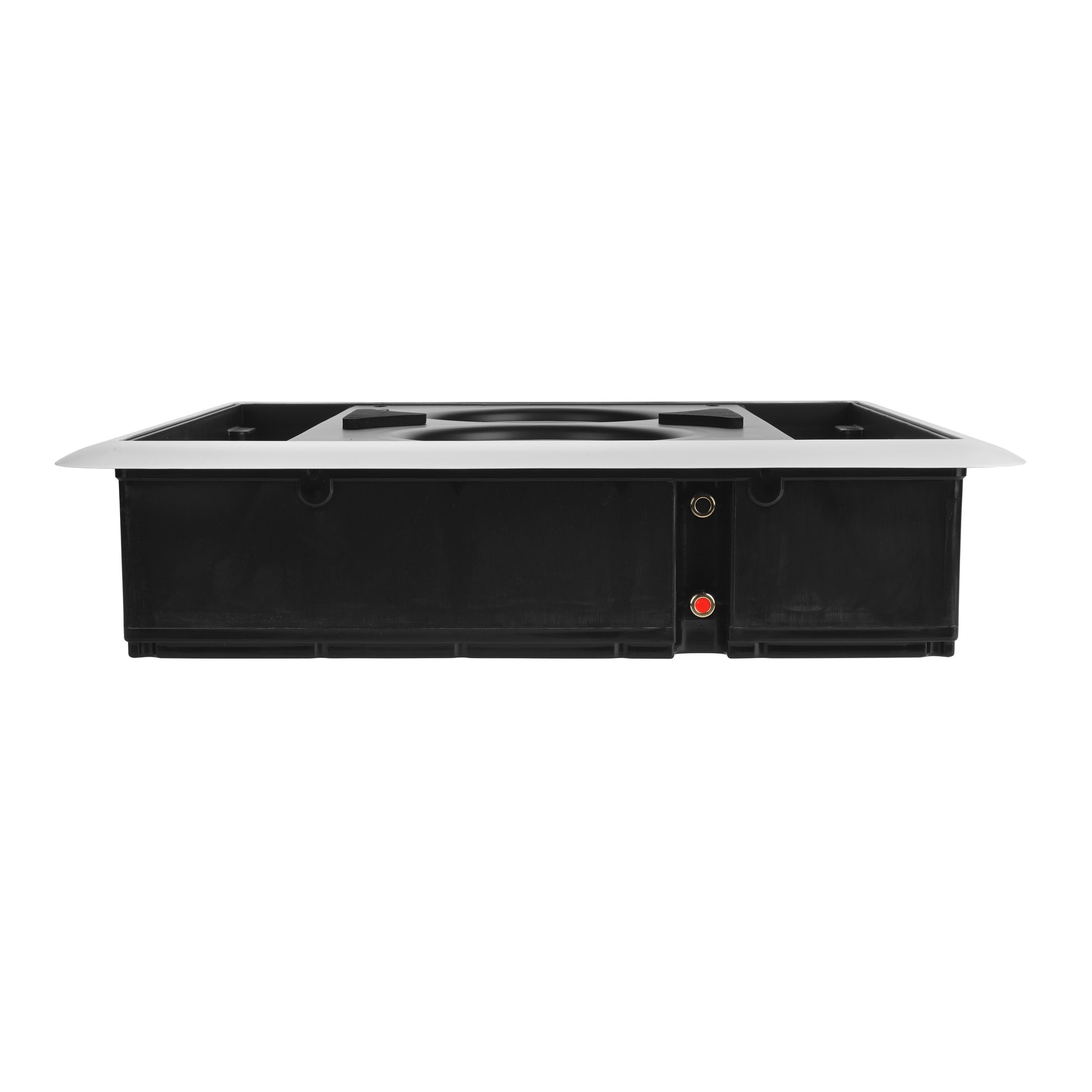

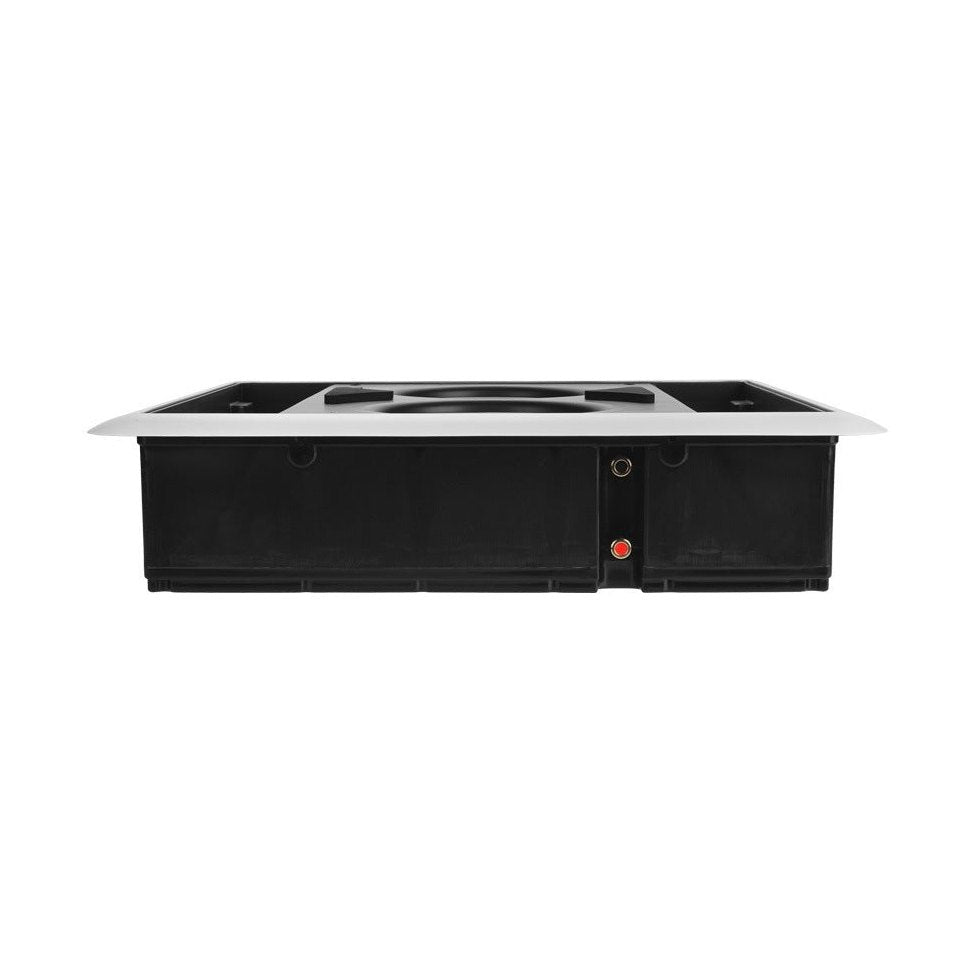

- Spring loaded loudspeaker input connectors
- RoHS compliant, lead-free construction, world-wide safety certifications
- Frequency range: (+/-3 dB) 30Hz-120Hz, (+/-10 dB) 26Hz-170Hz
- Dimensions (H/W/D): 420 mm x 476 mm x 95 mm
- Shipping Dimensions (H/W/D): 60 cm x 50 cm x 28 cm
- Weight (unboxed): 12 kg with Grille
- Shipping Weight: 16 kg
Driver Specs
- All-new proprietary 6.5” long-throw driver with high-precision tuned overhung motor configuration
- 18 mm Xmax mech precision aligned excursion
- 2” diameter Voice Coil with high current 4-layer high-purity copper wire windings
- High grade oversized Ferrite magnet motor
- Low profile air flow optimized basket, double vented
- Nitrile rubber extreme-excursion surround
- Lightweight invers carbon fiber cone for enhanced sensitivity and transient response
Passive Radiator Specs
- All-new proprietary 14” x 3,5” long-throw passive radiator
- Low profile air flow optimized basket
- Nitrile rubber extreme-excursion surround
- Lightweight flat carbon fiber cone for enhanced sensitivity and transient response
Accessories
- Paintable non-resonant hexagon mesh grille
- Installation Guide with cut out template
