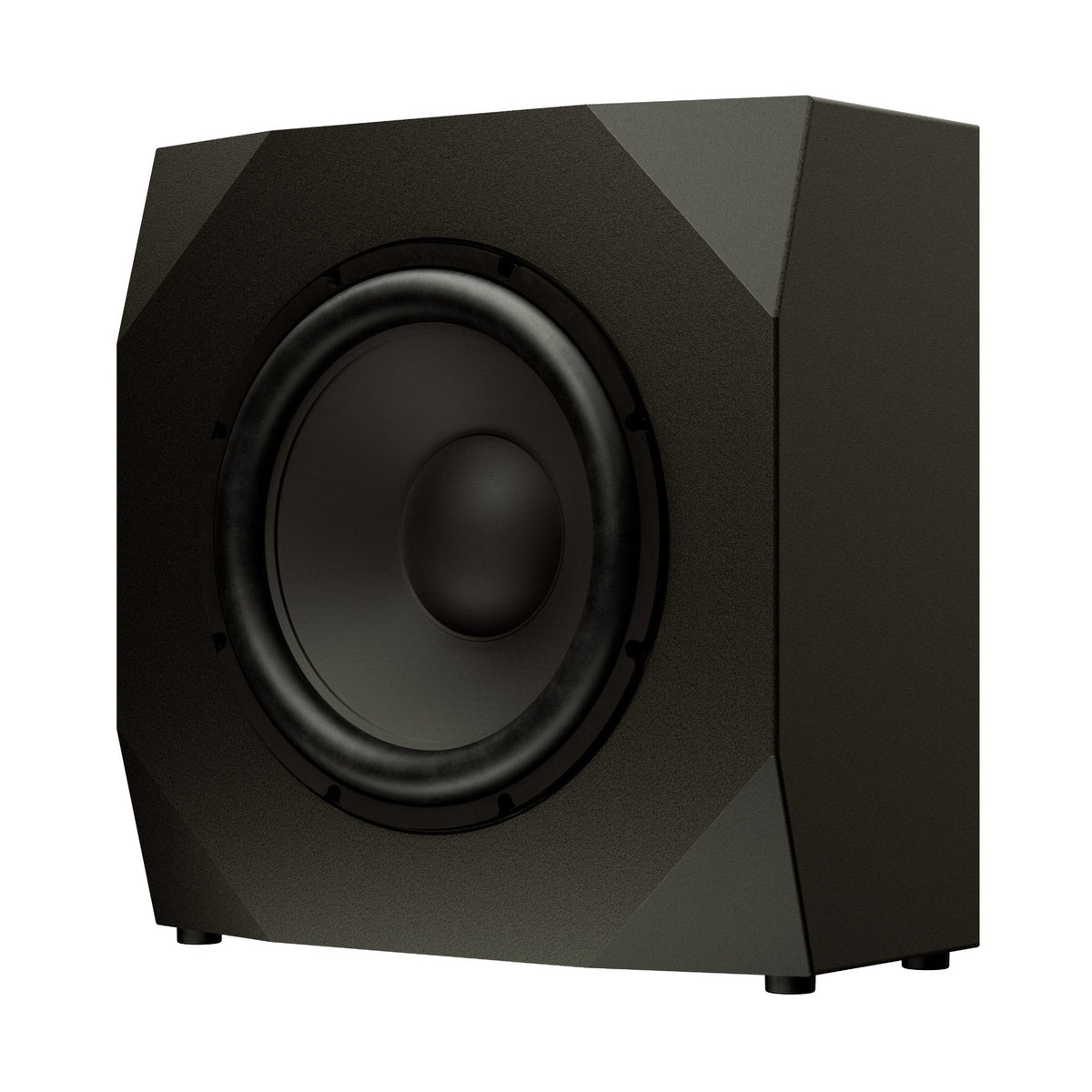

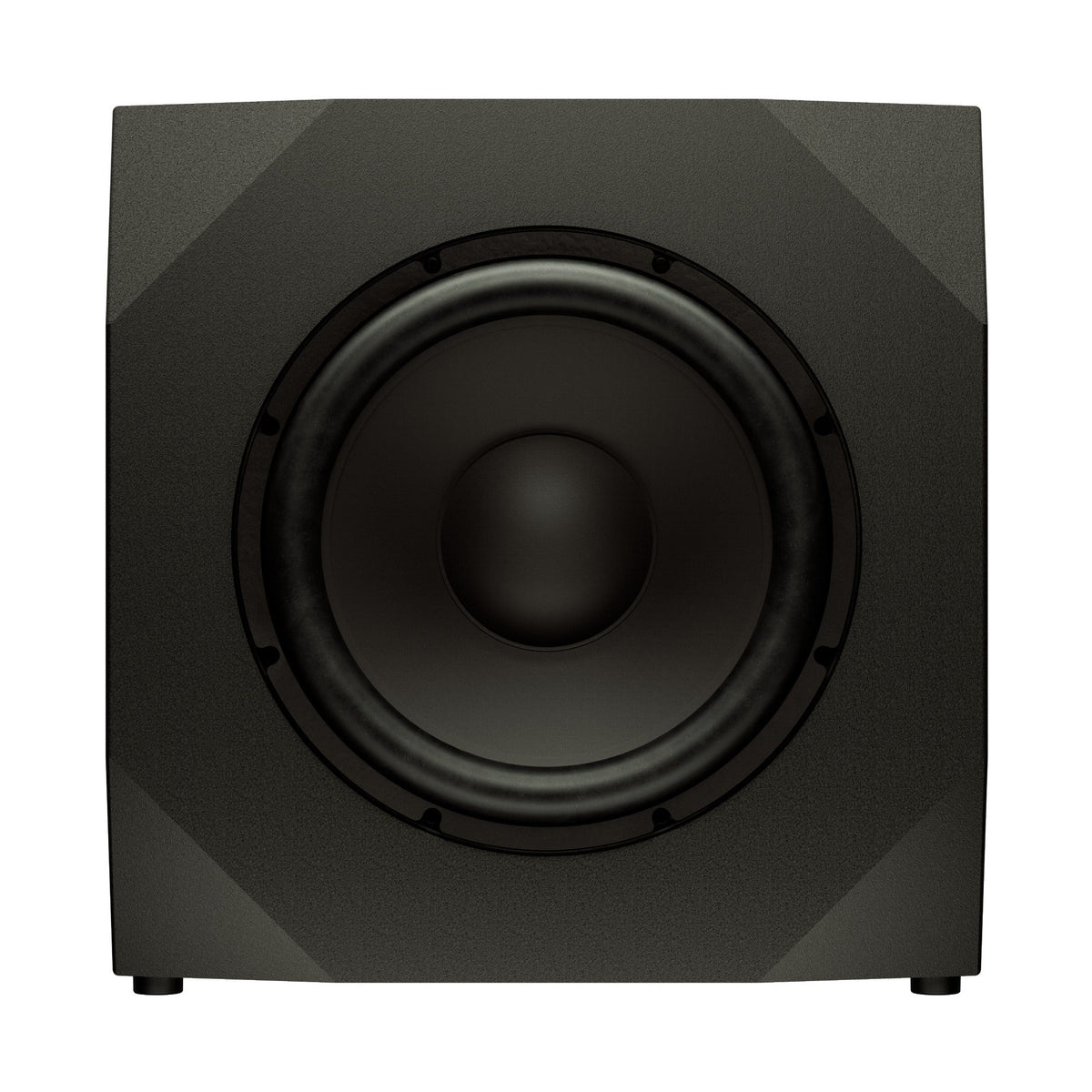

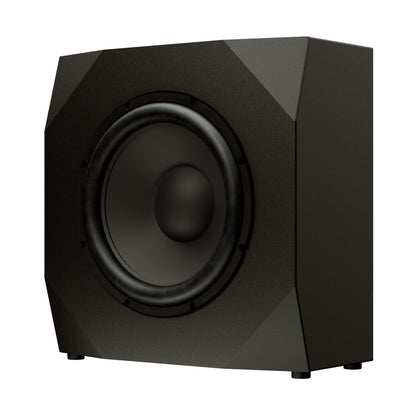

Krix UCX-118 Single 18” Passive Subwoofer
Krix UCX-118 Single 18” Passive Subwoofer
RRP: $7999
Overview
The UCX-118 delivers uncompromising infrasonic performance in a compact, versatile enclosure. Featuring an 18-inch high-excursion driver, the UCX-118 extends deep into the lowest frequencies, reproducing bass that is not only heard, but felt throughout the room.
Whether used as a standalone subwoofer or deployed in multiples for improved room coverage and consistency, the UCX-118 delivers the authority, control and tactile immersion demanded by serious cinema enthusiasts.
Infra-bass performance: Reproduces extremely low-frequency sounds to create a tactile audio experience that you can feel.
Compact high-output design: The single 18-inch high-excursion driver delivers substantial low-frequency output and deep infrasonic extension from a compact footprint.
Flexible placement: The UCX-118 is equally effective as a single subwoofer or as part of a distributed multi-subwoofer configuration.
Installation
Supplied as one passive subwoofer. External amplification and approved DSP are required; consult a Krix Certified System Designer for system configuration.
Specifications
Technical specifications
| Frequency range | 10Hz - 200Hz (with DSP) 15Hz - 3dB, 13Hz-6dB (with DSP) |
|---|---|
| Power handling | 1250 Watts continuous (71Vrms) 2500 Watts program (100Vrms) 5000 Watts peak (141Vrms, 200Vpeak) |
| Recommended amplifier | 1500 – 3000 Watts into 4 Ohms Approved amplifier with DSP required, consult with a Krix Certified System Designer. |
| Low frequency driver | Single 460 mm (18.11 in) (18”) treated paper cone driver. 100 mm (3.94 in) (4”) voice coil, neodymium magnet and demodulating ring for low distortion. 50 mm (1.97 in) peak to peak displacement |
| Sensitivity | See spec sheet |
| Impedance | 4 Ohms |
| Dimensions | 26.18 × 25.59 × 12.64 in (665 × 650 × 321 mm), H × W × D; height includes feet |
| Weight | 75lbs (34 kg (75.0 lb)) each |
