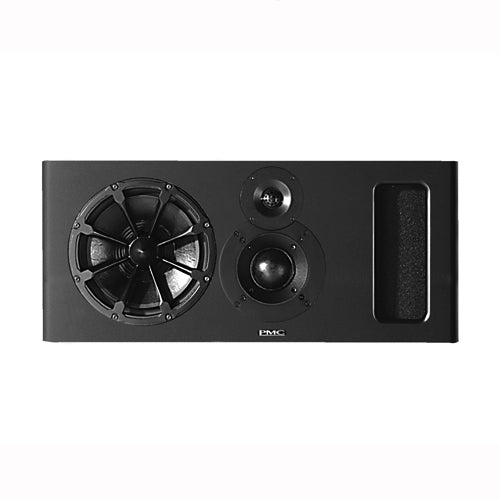

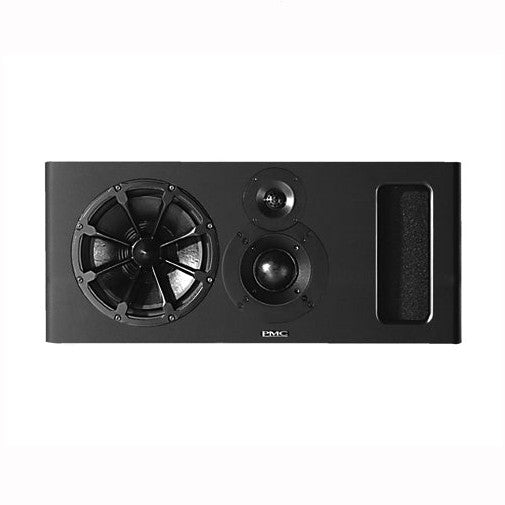

PMC MB2S-P-C-H
PMC MB2S-P-C-H
Sold As Each - RRP $18499.99/each
Horizontal Version
The PMC MB2S-P-C-H is perfect for mid sized control rooms either soffit mounted or on its custom studio stands. The MB2S allows higher SPL’s without distortion and loss of definition normally associated with a device of its size. The distinctive MB2S includes the PMC 75 mid driver that has taken the limits of soft dome design and construction to its ultimate conclusion.
The RadialTM low frequency driver allows massive controlled excursions and avoids the effects of power compression, by cooling via its cast alloy exo-skeleton.
As with all PMC models there is matching low profile centre channels (MB2S-C) and subwoofers for use in surround configuration (XB2S)
The RadialTM low frequency driver allows massive controlled excursions and avoids the effects of power compression, by cooling via its cast alloy exo-skeleton.
As with all PMC models there is matching low profile centre channels (MB2S-C) and subwoofers for use in surround configuration (XB2S)
- Matching low profile centre channel (MB2S-C)
- Matching XB2 subwoofer to complete a surround system
- Film filter option: HF Roll off 1.5dB, 3dB and Flat
- Custom speaker stands for optimising performance 860mm 34" High
- Recommended amp power up to 800W
Specifications
Type: Passive 3-way center channel monitor
Frequency Response: 20Hz – 25kHz
Sensitivity: 91dB 1W 1m
Recommended Amp Power: 200–800W
Drive Units:
- LF: 310mm (12") PMC Radial™ driver
- MF: 75mm PMC fabric dome (PMC75)
- HF: 27mm fabric soft dome
Crossover Frequencies: 380Hz & 3.8kHz
Effective ATL™ (Advanced Transmission Line) Length: 3m (10 ft)
Dimensions (H x W x D): 380mm x 870mm x 535mm (14.96″ x 34.25″ x 21.06″)
Weight: 49kg (108 lbs)
