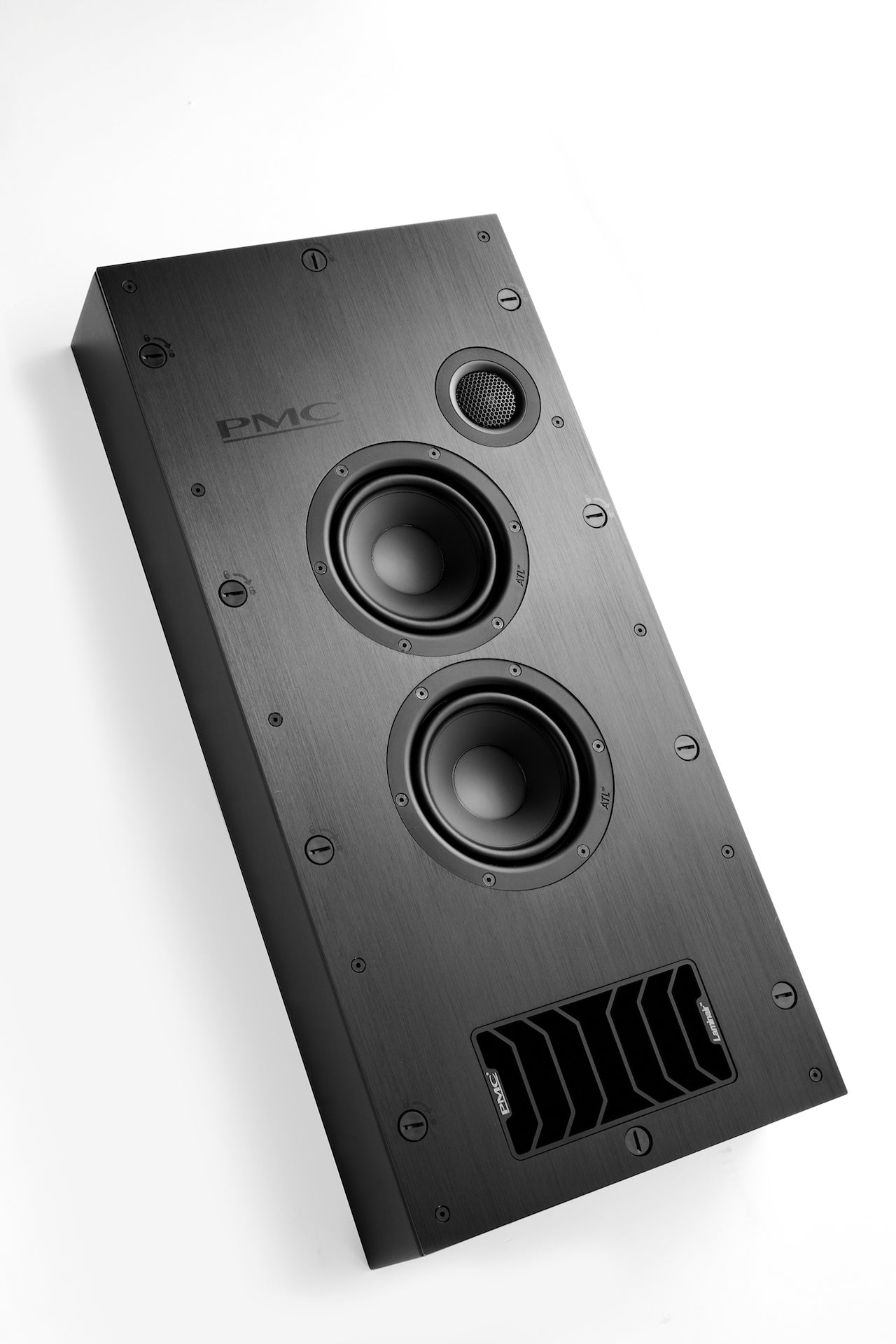

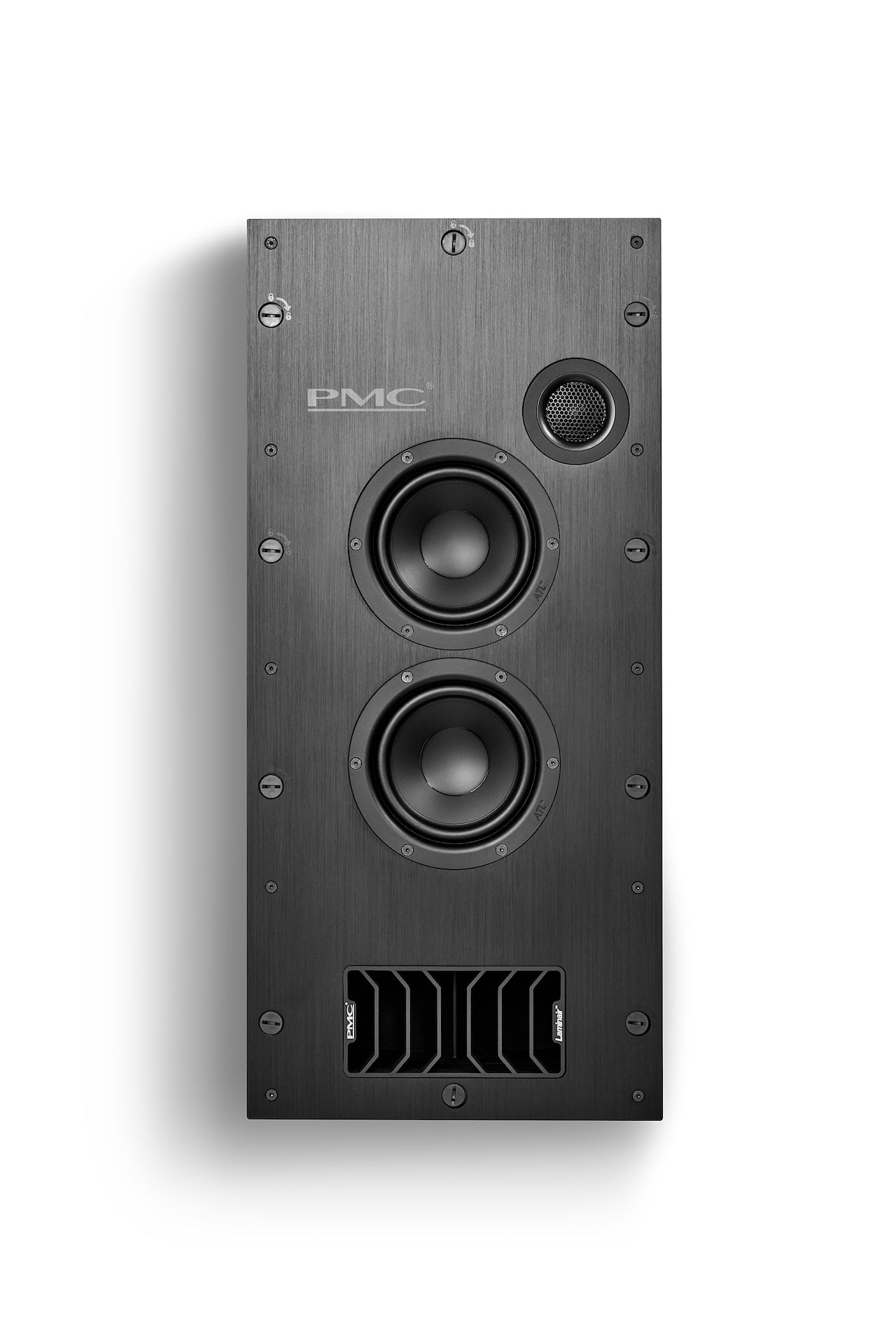

PMC ci65 In-Wall Speaker

PMC ci65 In-Wall Speaker

Login to view price

In Stock

With a second LT™ (long-throw) bass driver, the ci65 creates more slam and presence, with more headroom and bass extension. It’s ideal for use as a surround speaker in medium-to-large theatres.
The ci series are ideal for playback of stereo and immersive formats, and the largest models provide the greatest headroom, bass and dynamics. All models apart from the ci140 and ci140sub may be mounted in- or on-wall, thanks to their Qikfire™ fittings, bezel-less grille and stylish cabinet sleeve.
Specifications
Available Finishes:ci series black
Dimensions:H 650mm (25.5”) W 300mm (11.8”) D 103mm (4”)

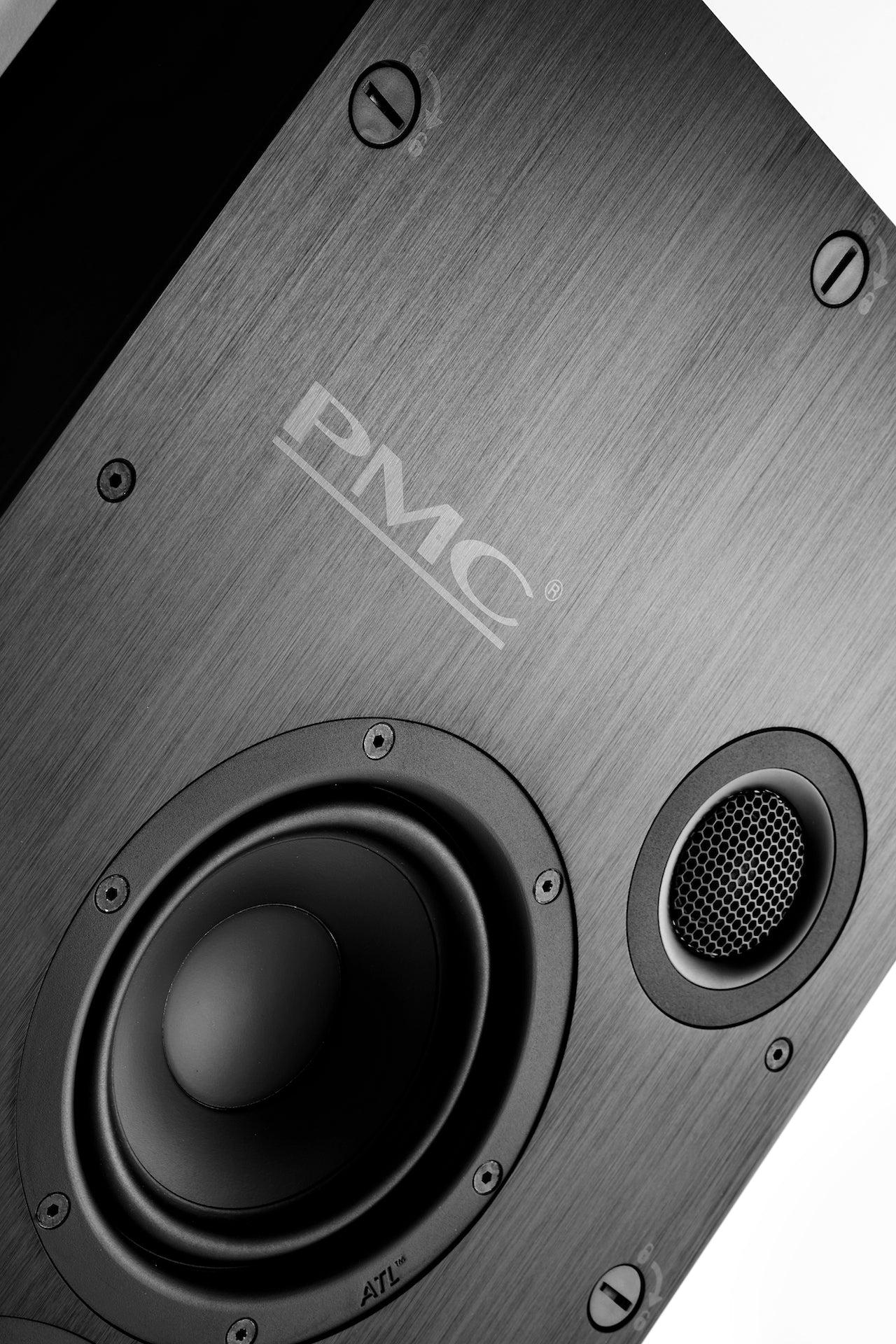

Drive Units:LF 2 x 133mm (5.25”) Natural Fibre LT™
HF 27mm (1”) soft dome

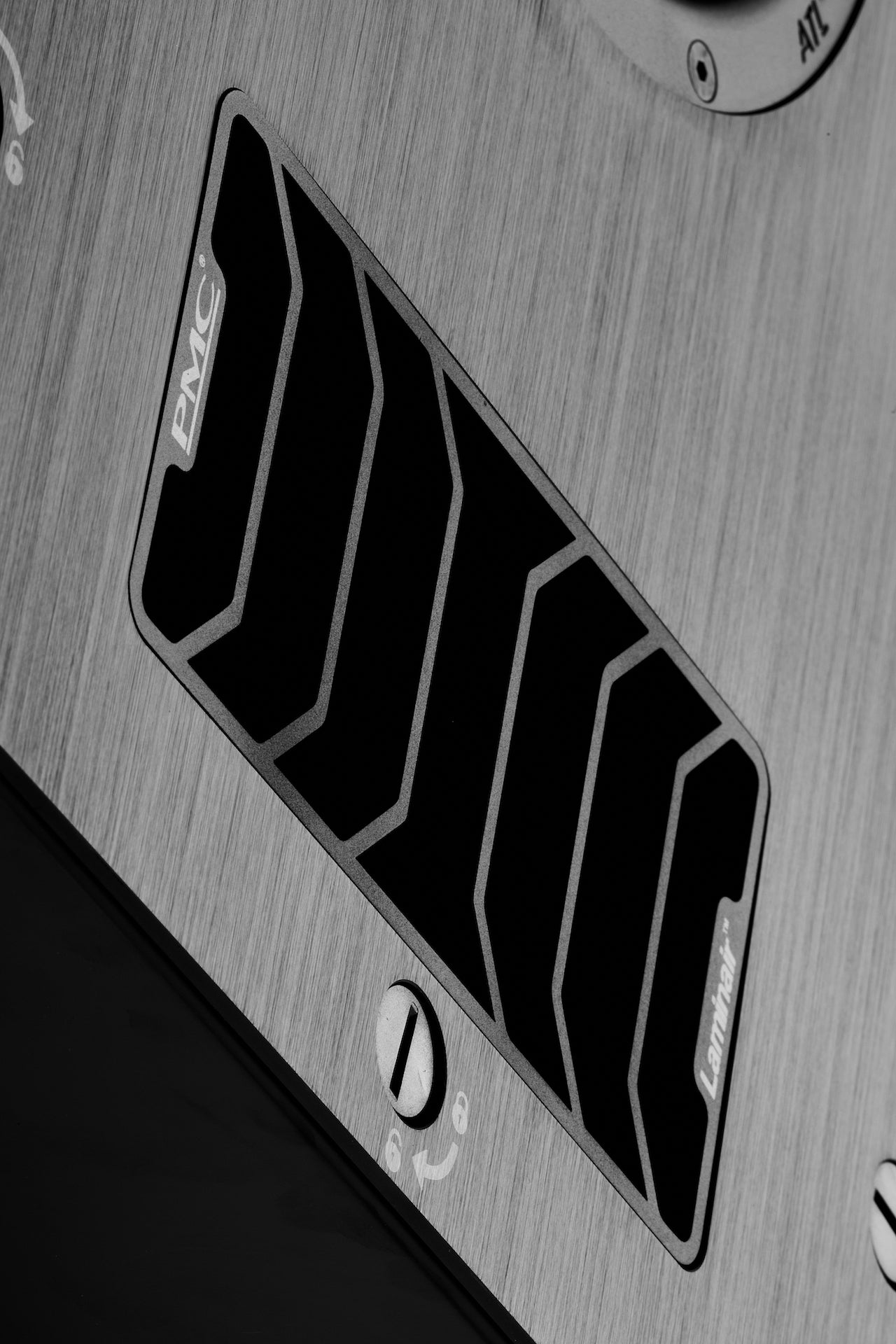

Effective ATL™ Length:1.8m (5.9ft)
Frequency Response:40Hz-25kHz
Impedance:4 Ohms
Input Connectors:1 pair 4mm sockets
Sensitivity:87dB (2.83v @1m)
Recommended Amp Power:20 - 200W
Recommended Drive Unit Torque Settings:HF: 0.5Nm LF: 0.6Nm
Weight:Boxed = 12kg
Unboxed (with Grille)= 9.5kg
Without Grille = 8.5kg

IN-WALL

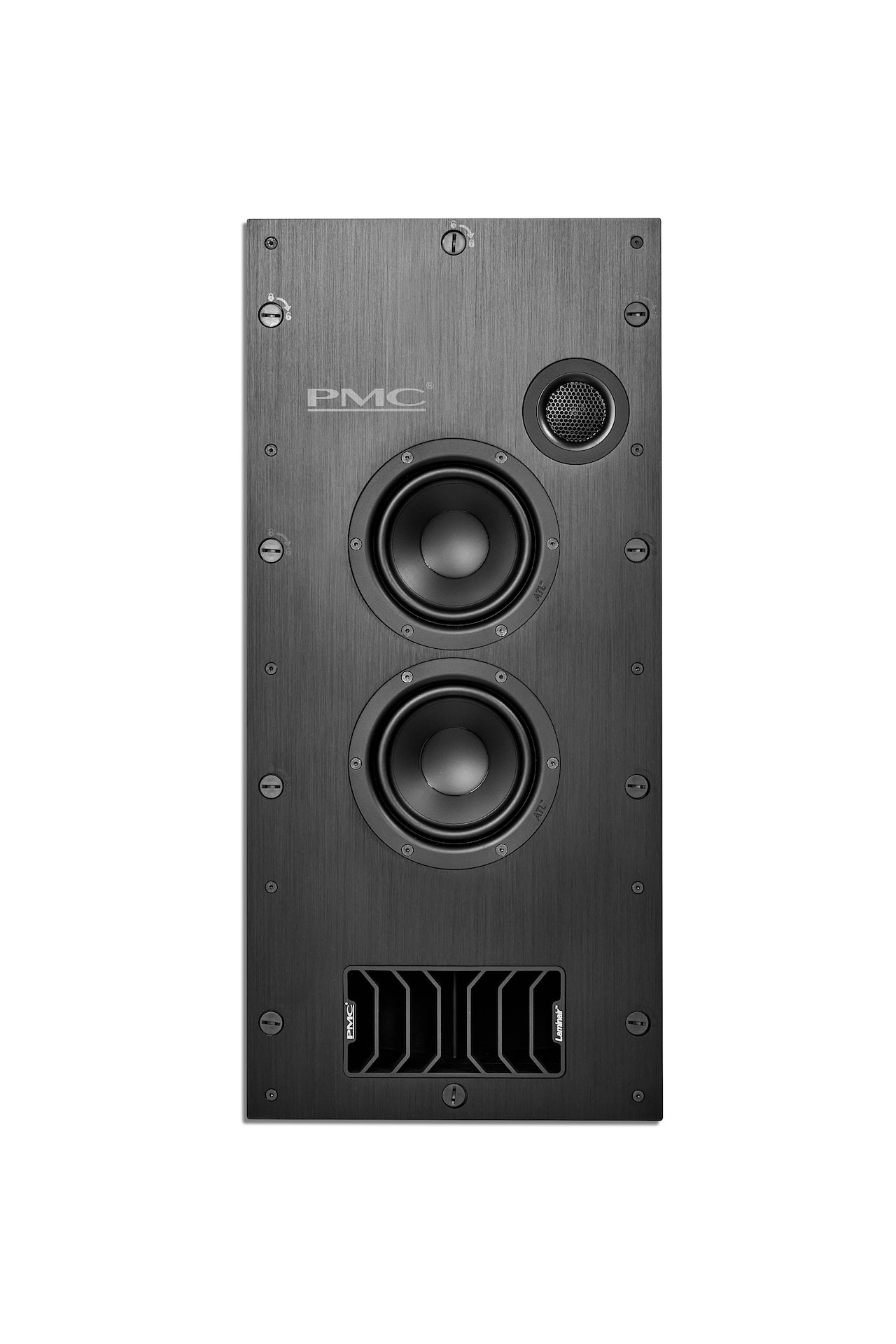

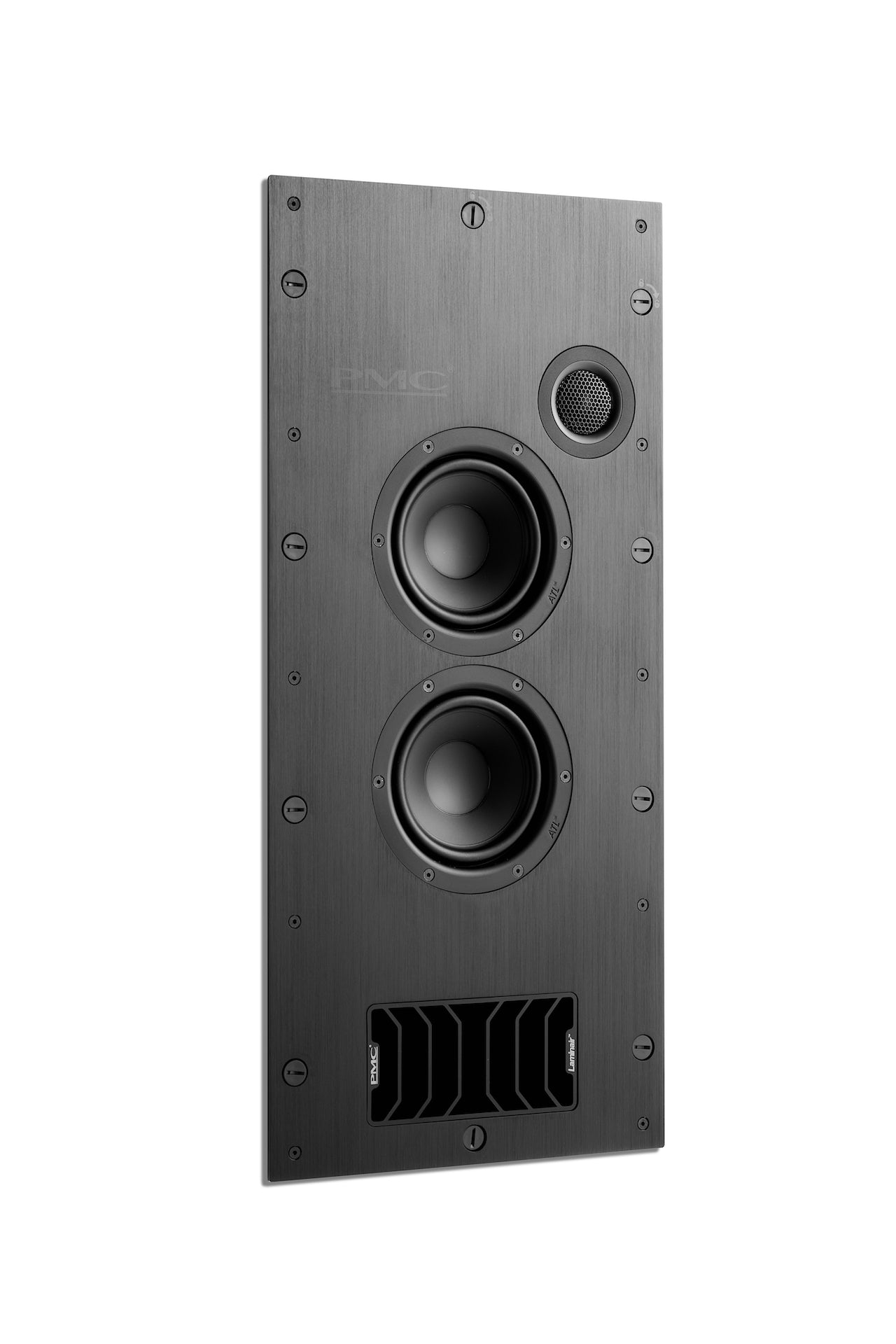

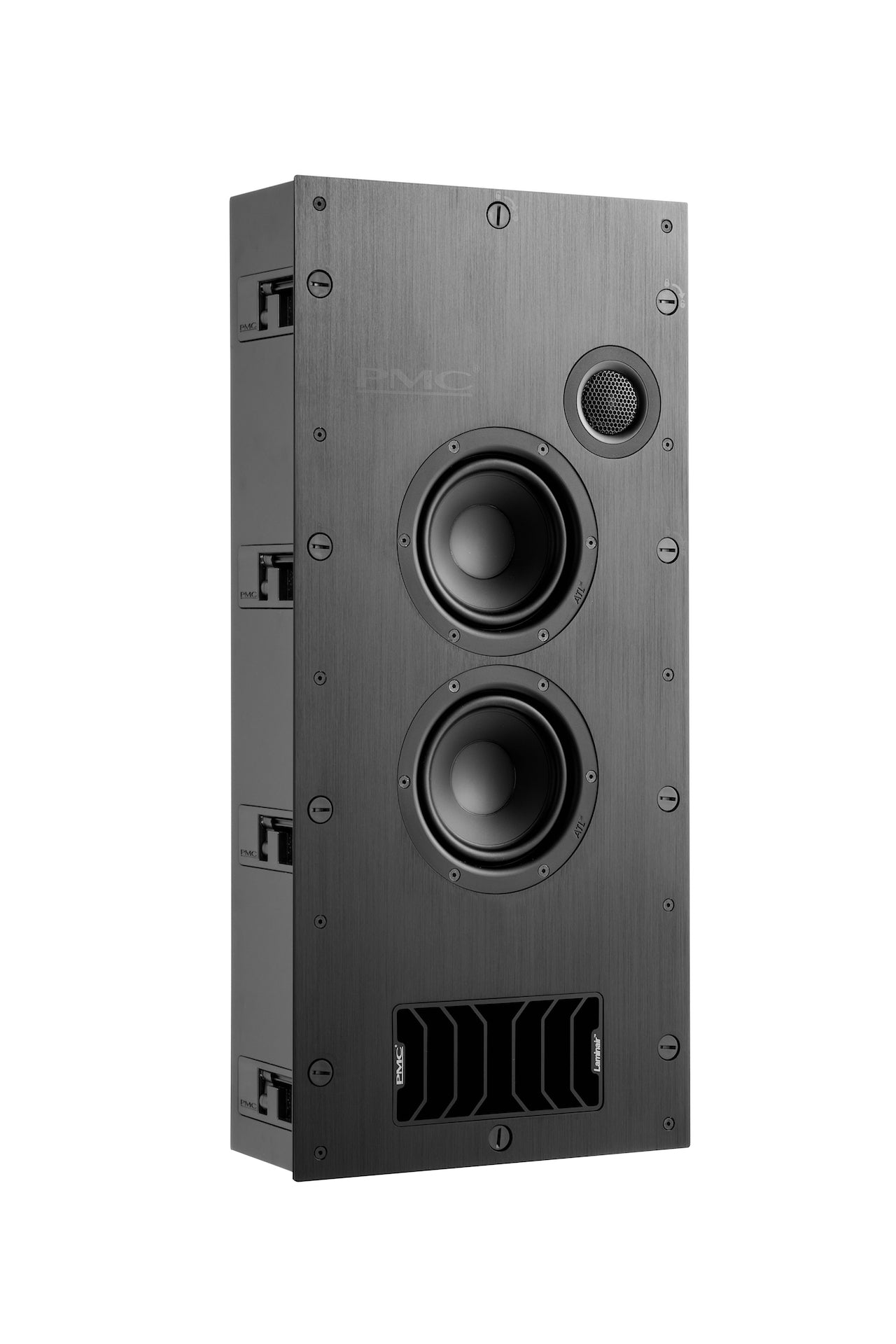

ci65 in-wall

In-wall mounting

The Qikfire™ in-wall mounting system makes the range very “installer-friendly”. The ci30, ci45, ci90slim and ci65 are fitted with Qikfire, a spring-loaded mounting system which allows the loudspeaker to be fixed in position with a simple twist of a screwdriver. Removal is just as easy as installation, with a simple twist.

Optional Extras

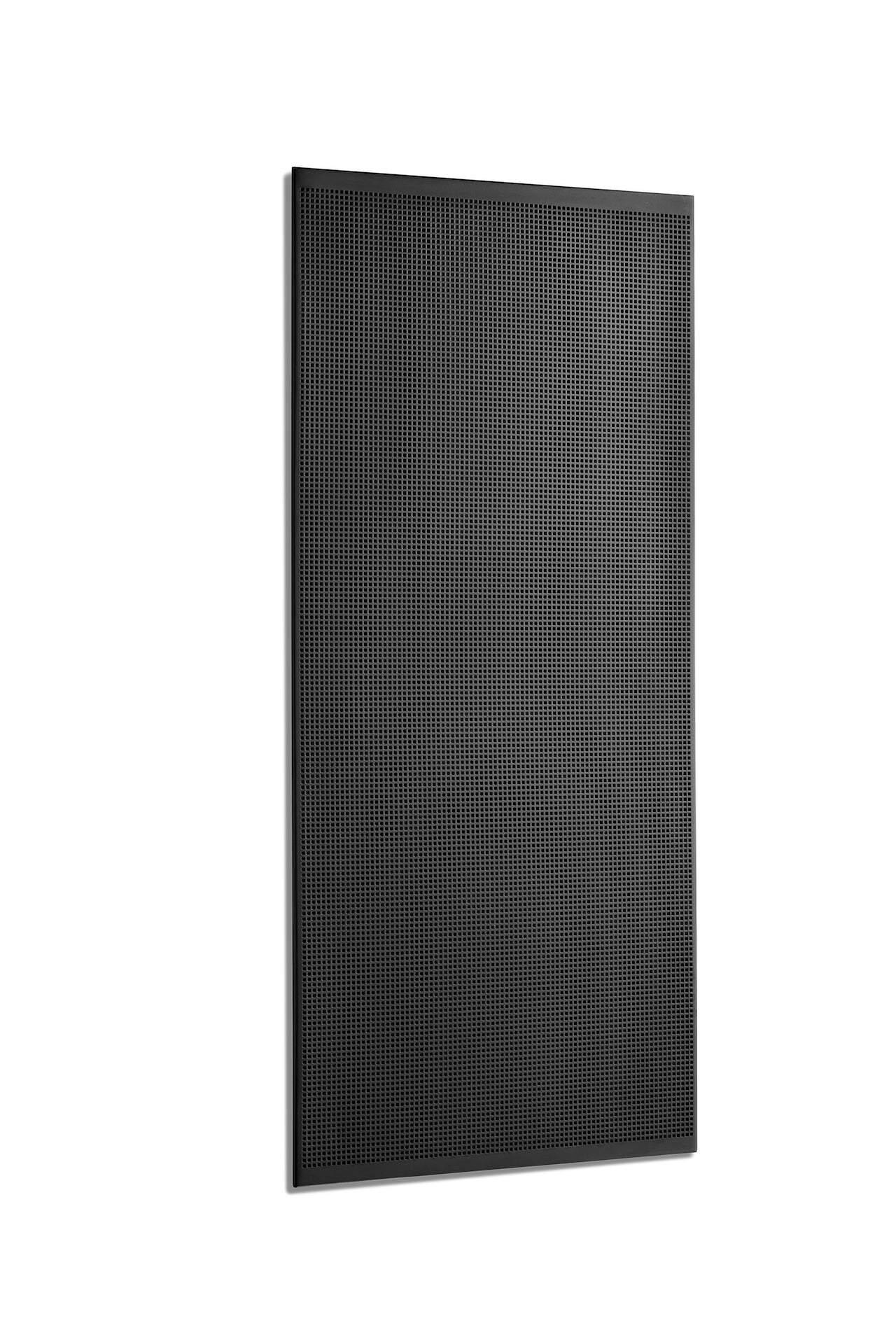

Black Silk Grille

ci65 black grille

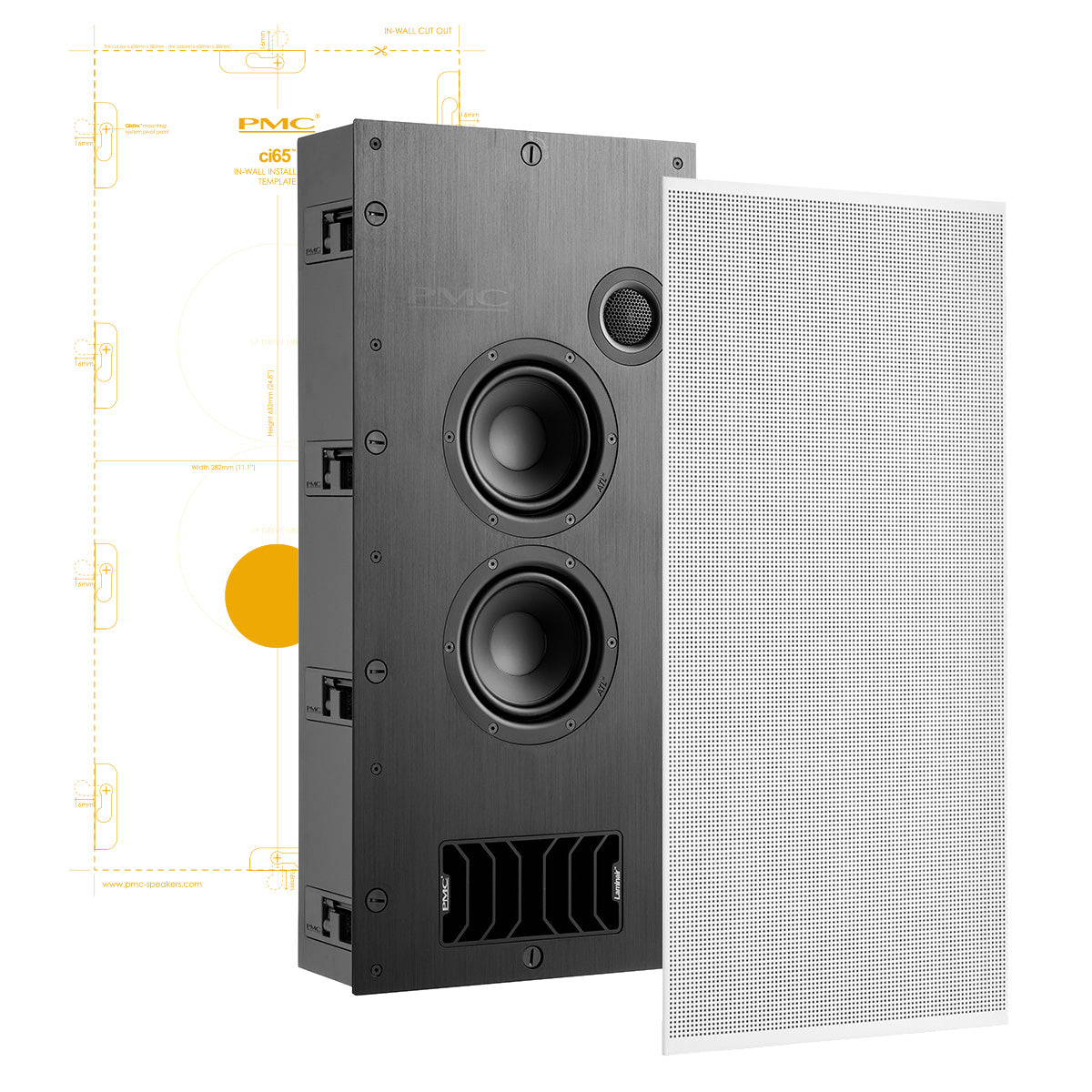

PMK - Pre Mount Kit

This template can be screwed to studs or joists with the speaker cable secured to a supplied eyelet on the rear. After plastering & decoration it provides the perfect sized aperture for the speaker to fitted.

ci65 PMK

ON-WALL

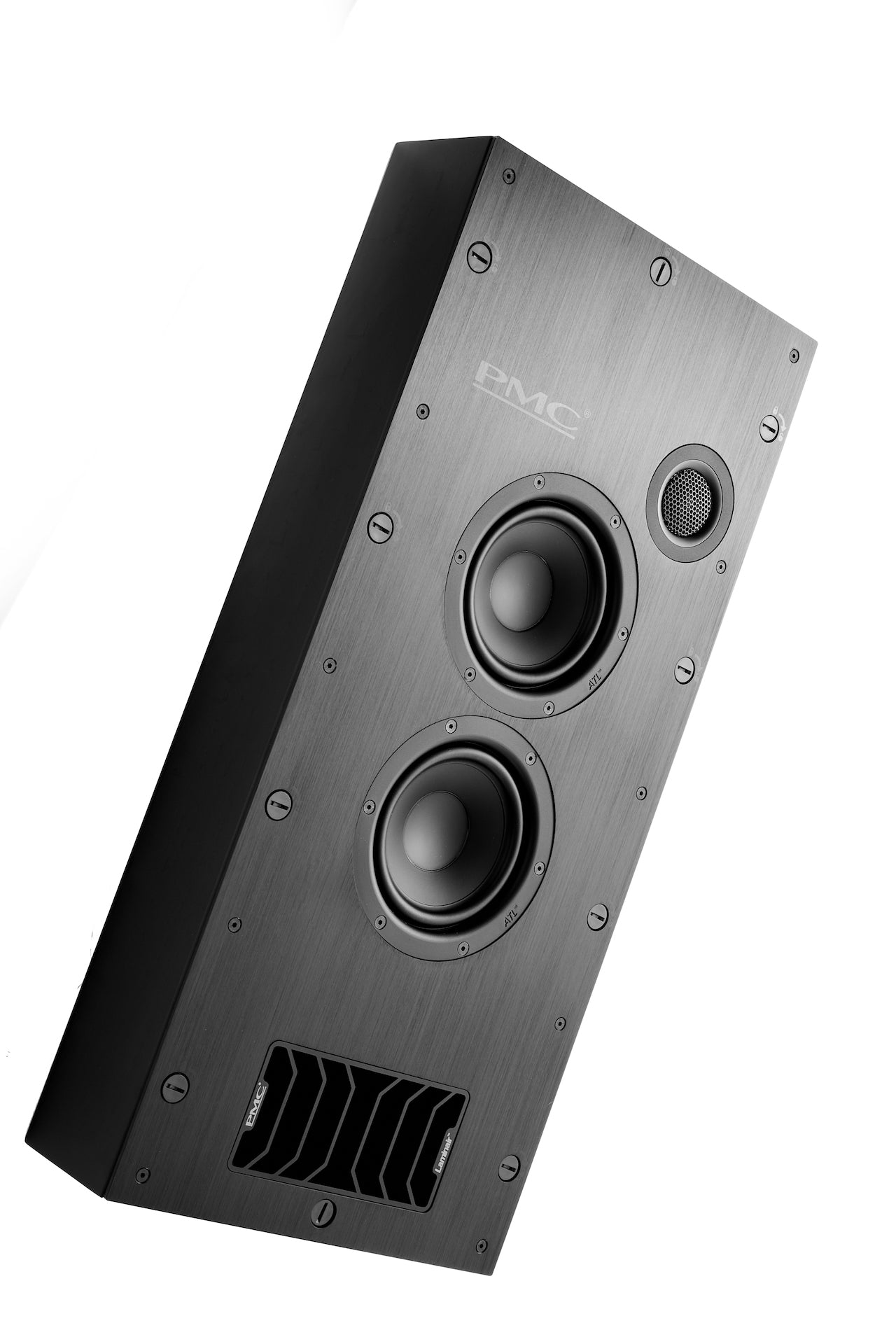

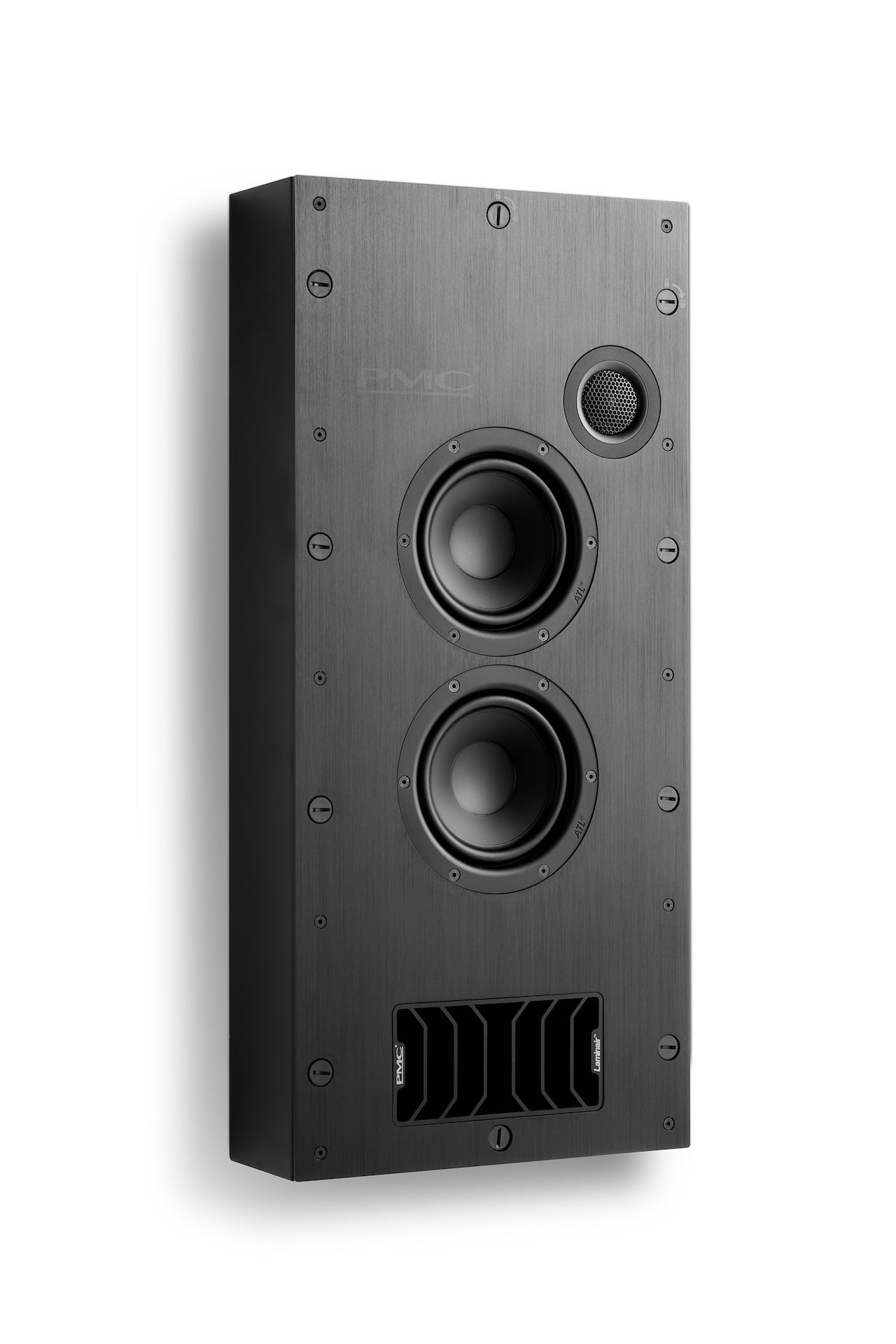

ci65 on-wall

On-wall mounting

On-wall mounting is just as straightforward as in-wall mounting, using the supplied interlocking bracket, which is designed to also offer pin-point level adjustment. For the ci30, ci45, ci90slim and ci65 an optional OWK - on-wallmounting kit in white or black may be fitted around the cabinets to conceal the in-wall mounting system creating an elegant and discrete on-wall loudspeaker.

Optional Extras

OWK - On Wall Kit

SILK WHITE

Convert the in-wall ci65™ into an on-wall loudspeaker with a white cabinet sleeve OWK Kit

ci65 white on wall kit

Includes the on-wall mounting template & 2 piece wall bracket

OWK - On Wall Kit

SILK BLACK

Convert the in-wall ci65™ into an on-wall loudspeaker with a black cabinet sleeve OWK Kit

ci65 black on wall kit

Includes the on-wall mounting template & 2 piece wall bracket

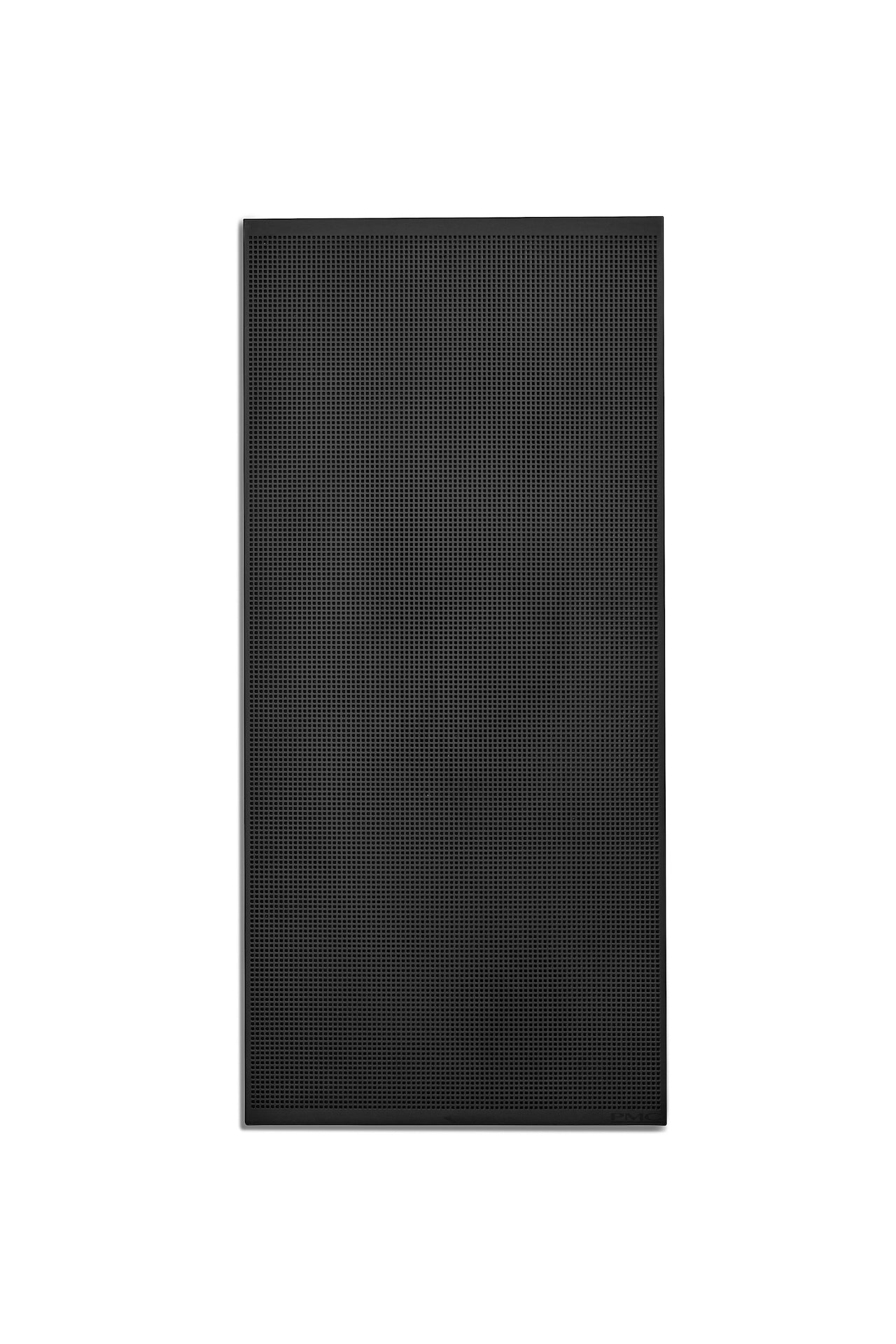

Black Silk Grille

Black grilles are available to ensure each model remains discreet in dark surroundings

ci65 black grille

BRKT - Wall Bracket

The BRKT allows movement in both vertical and horizontal planes allowing the cabinets to be angled.

ci65 wall bracket
ci65 exploded
