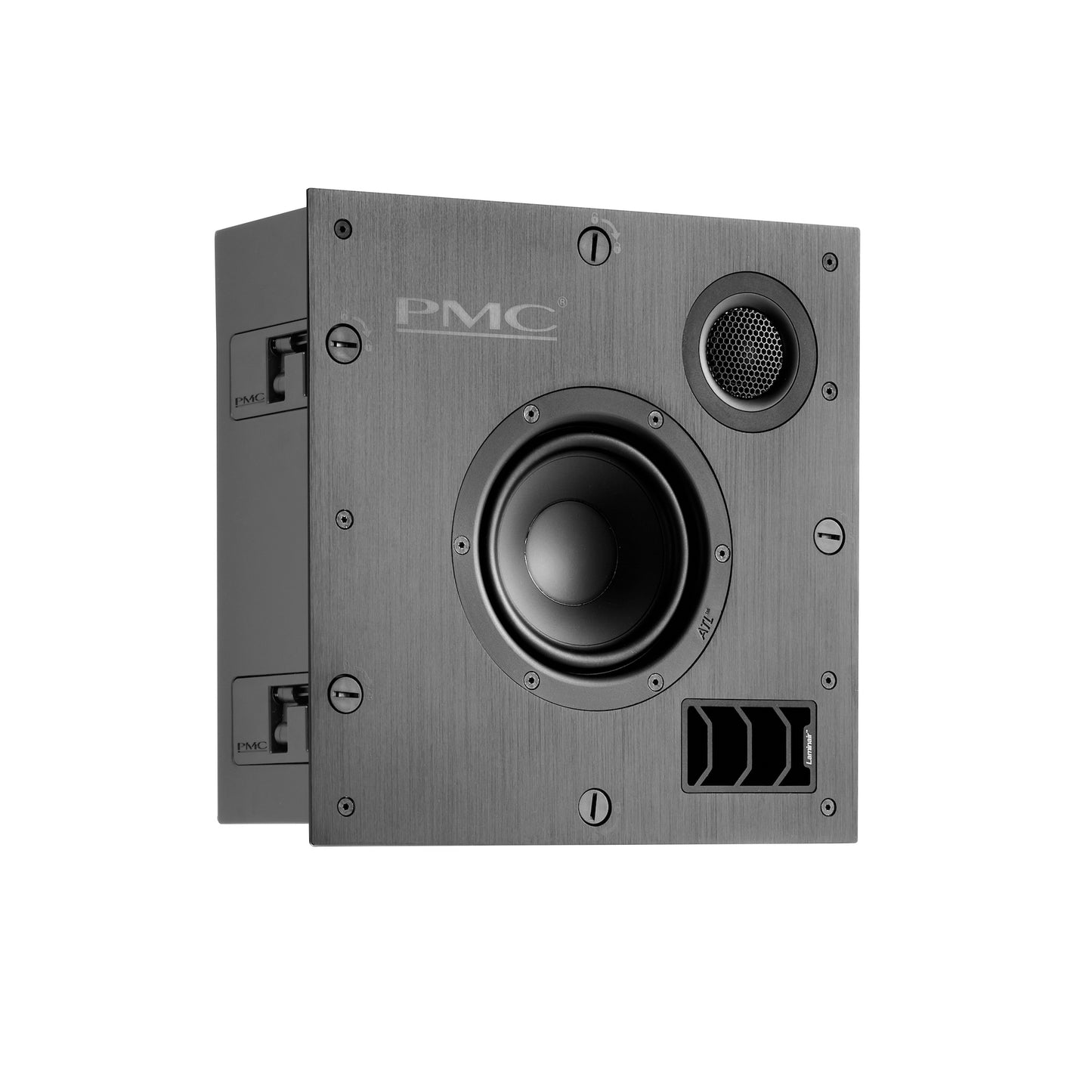

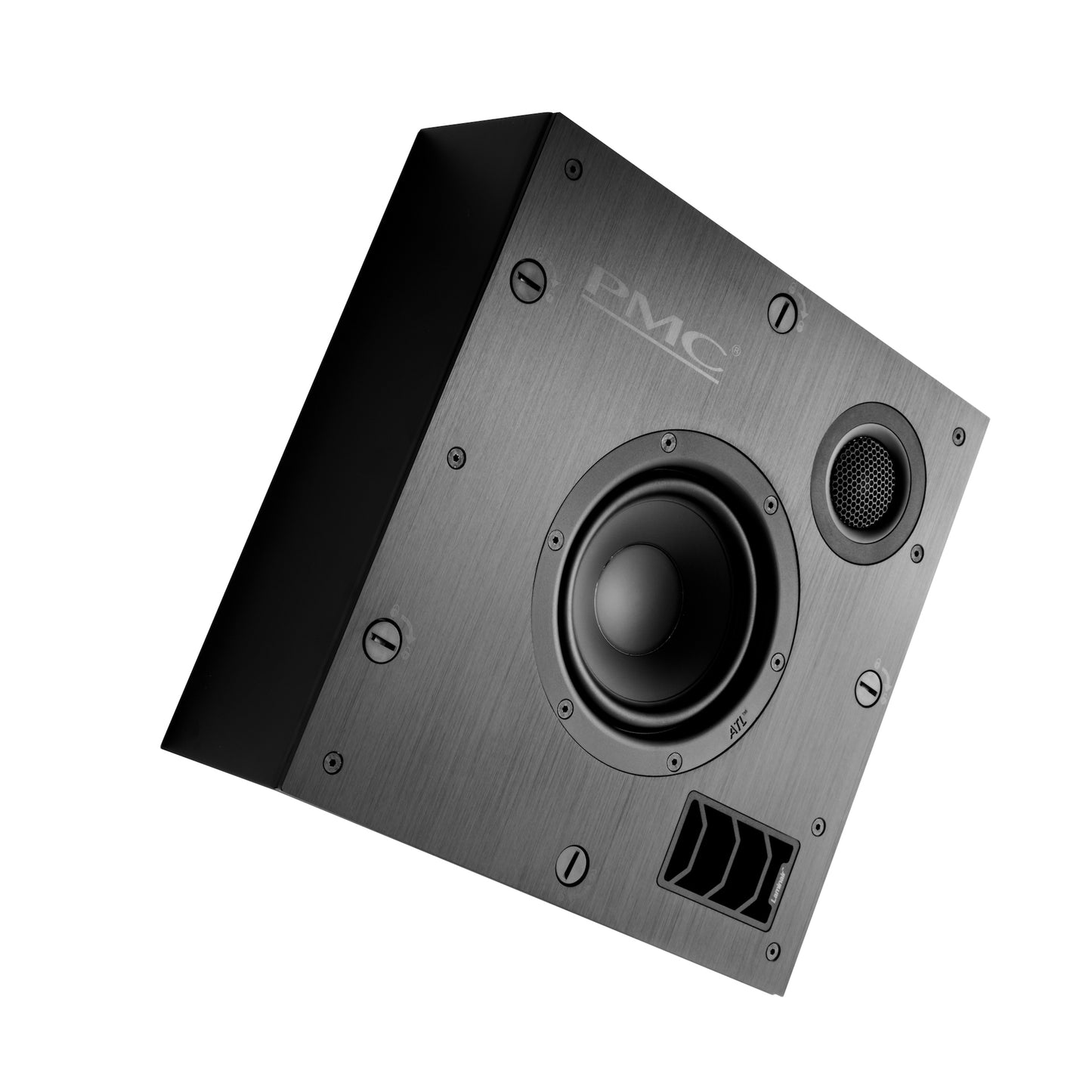

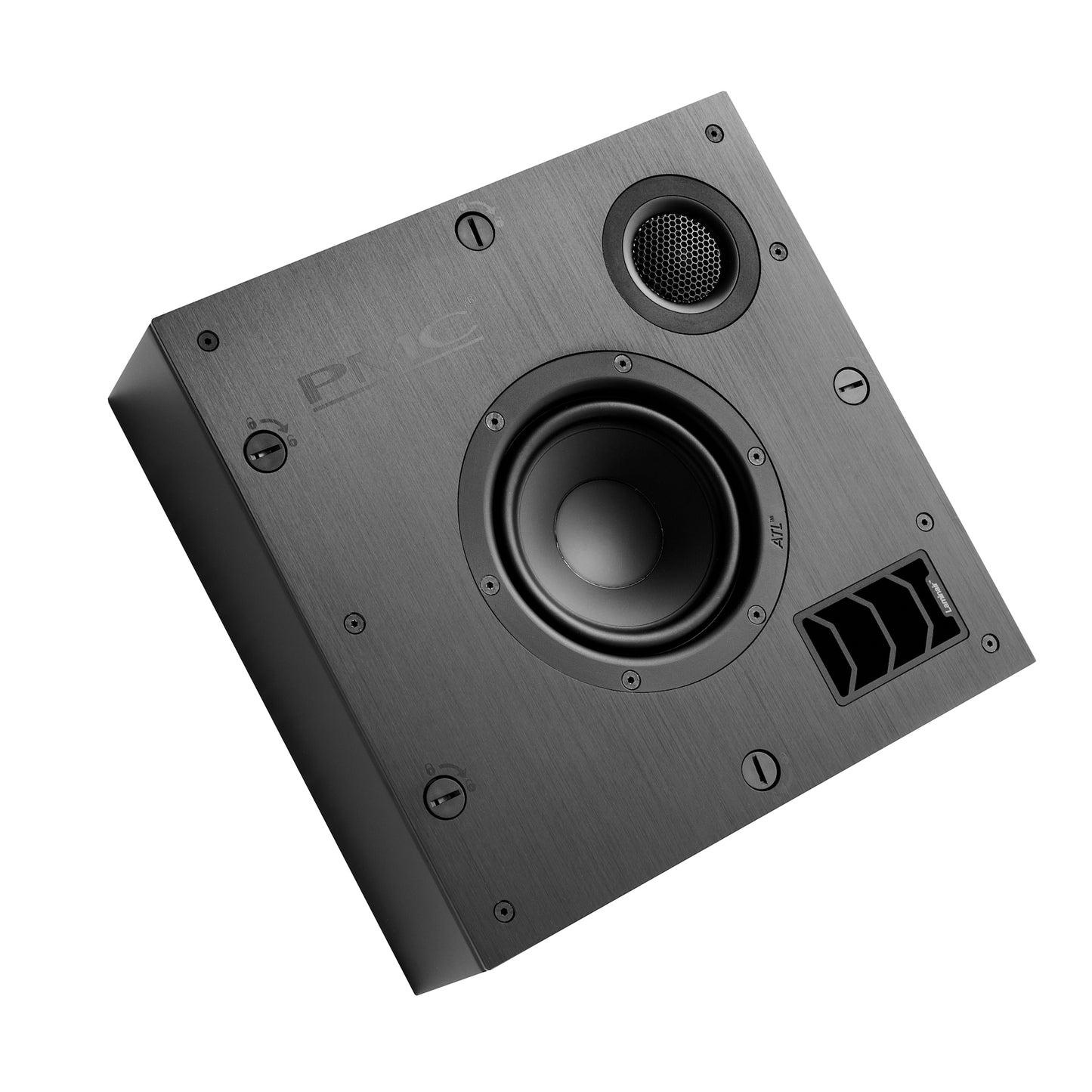

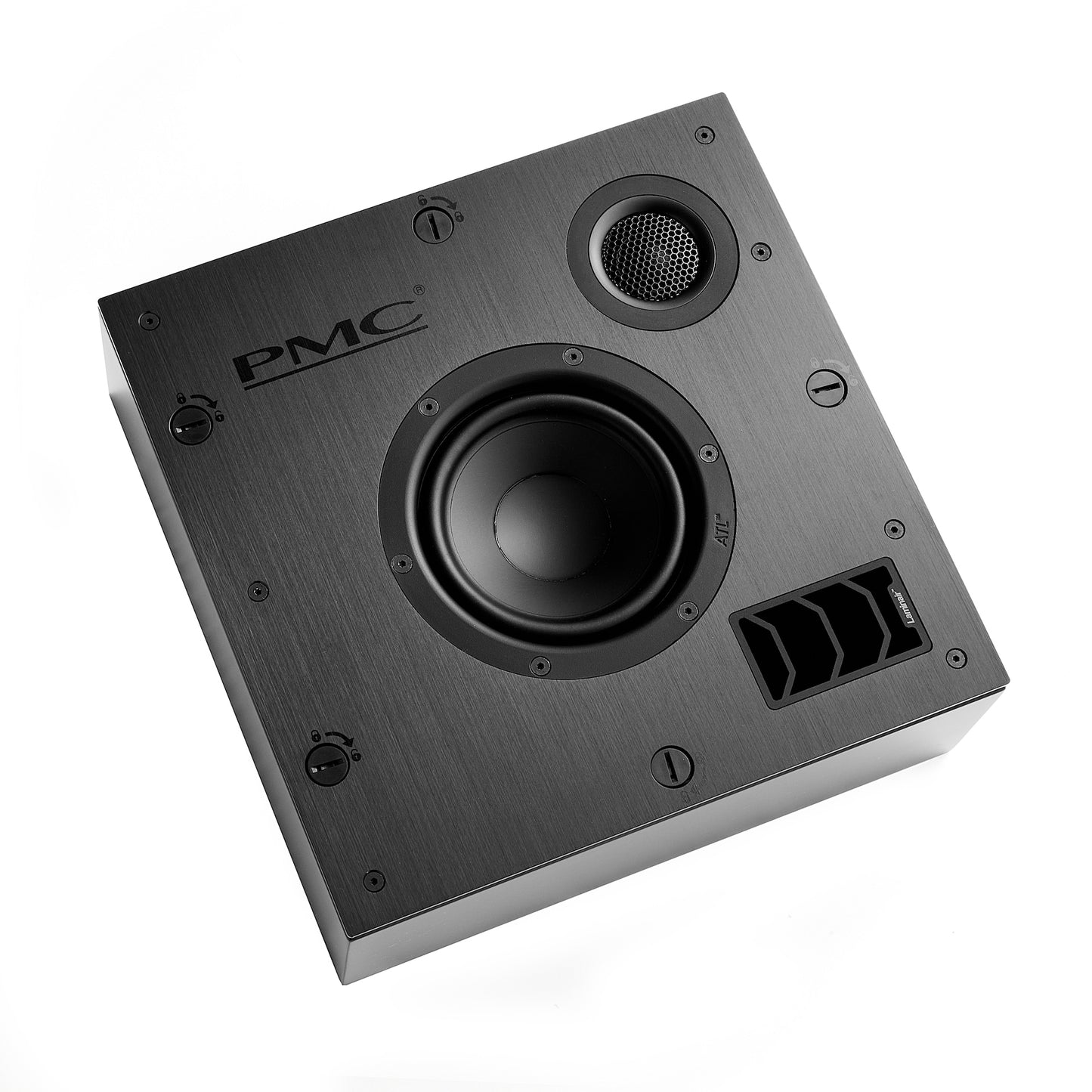

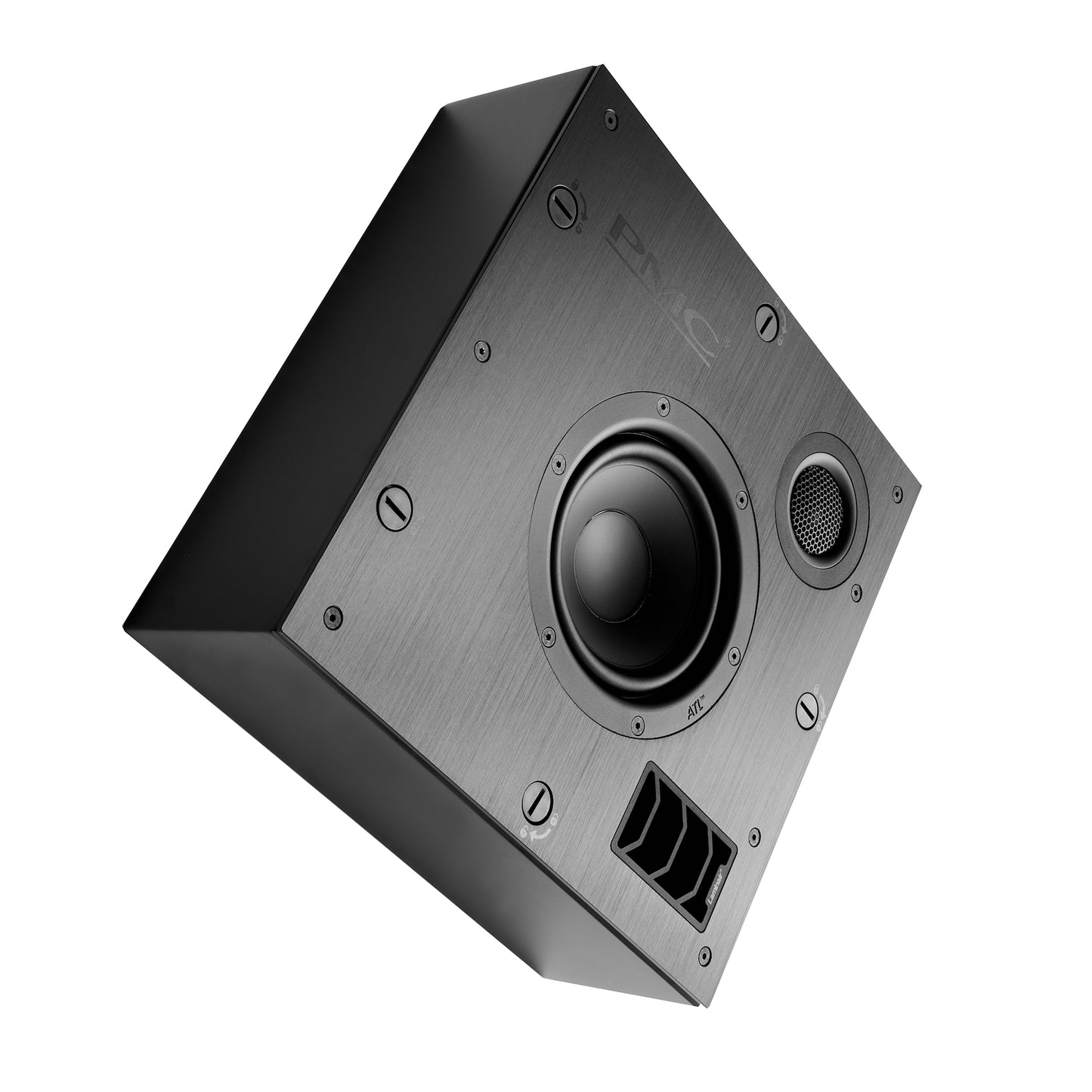

PMC ci30 In-Wall Speaker

PMC ci30 In-Wall Speaker

Login to view price

In Stock

The ci30 is the smallest of the range, perfect for in-ceiling, in-wall or on-wall mounting. It out-performs speakers twice its size, making it ideal for surround channels, Dolby Atmos® and stereo in smaller rooms.

The ci series are ideal for playback of stereo and immersive formats, and the largest models provide the greatest headroom, bass and dynamics. All models apart from the ci140 and ci140sub may be mounted in- or on-wall, thanks to their Qikfire™ fittings, bezel-less grille and stylish cabinet sleeve.

This model is configurable as an in-wall or on-wall loudspeaker.
Available Finishes:ci series black
Dimensions:H 300mm (11.8”) W 300mm (11.8”) D 103mm (4”)
Drive Units:LF 133mm (5.25”) Natural Fibre LT™
HF 27mm (1”) soft dome
Effective ATL™ Length:1.5m (4.9ft)Frequency Response:47Hz(-3dB)-25kHz
Impedance:8 Ohms
Input Connectors:1 pair 4mm sockets
Sensitivity:84dB (2.83v @1m)
Recommended Amp Power:40 - 150W
Recommended Drive Unit Torque Settings:HF: 0.5Nm LF: 0.6Nm
Weight:Boxed = 6.5kg
Unboxed (with Grille)= 5kg
Without Grille = 4.5kg

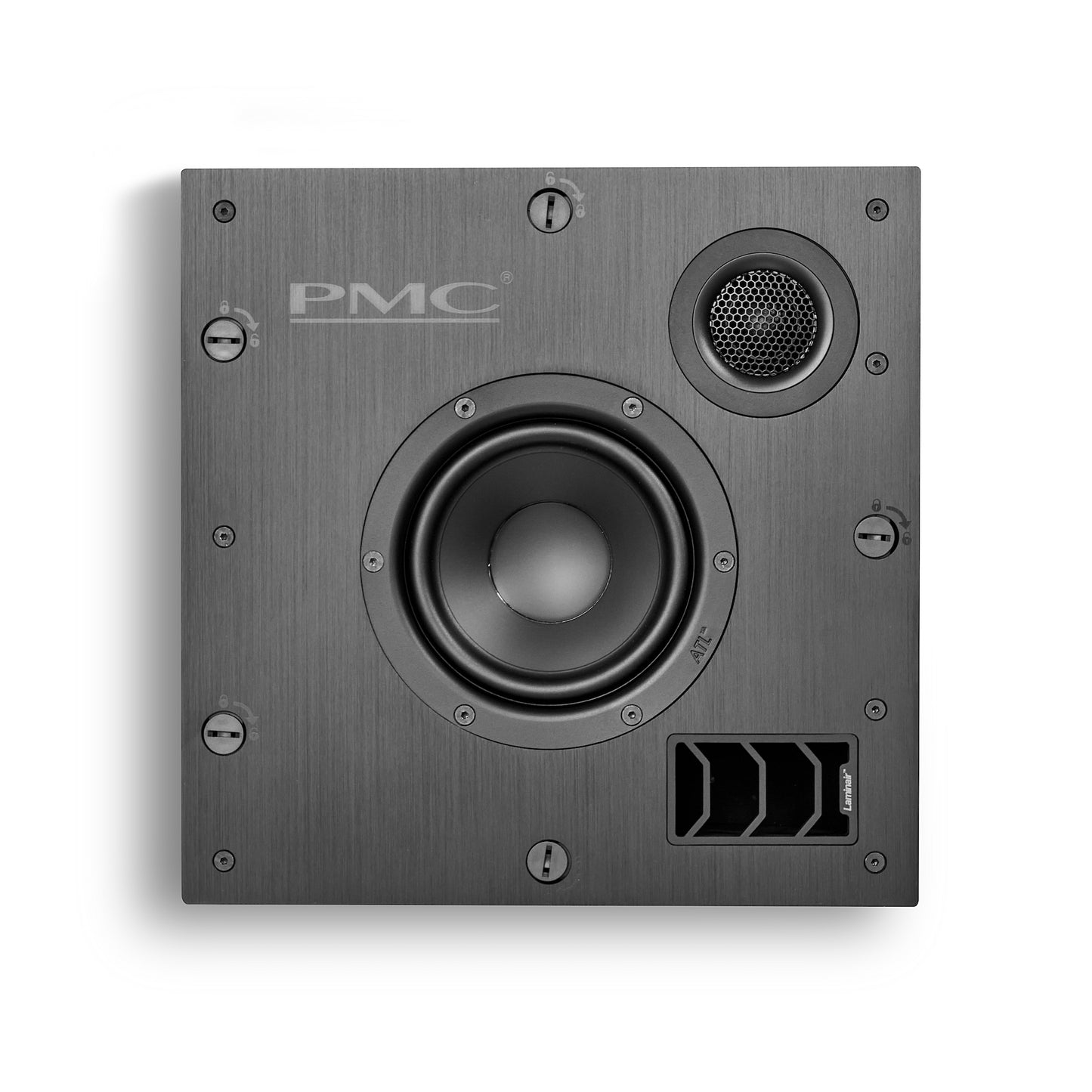

ci30 in-wall

In-wall mounting

The Qikfire™ in-wall mounting system makes the range very “installer-friendly”. The ci30, ci45, ci90slim and ci65 are fitted with Qikfire, a spring-loaded mounting system which allows the loudspeaker to be fixed in position with a simple twist of a screwdriver. Removal is just as easy as installation, with a simple twist.

Optional Extras

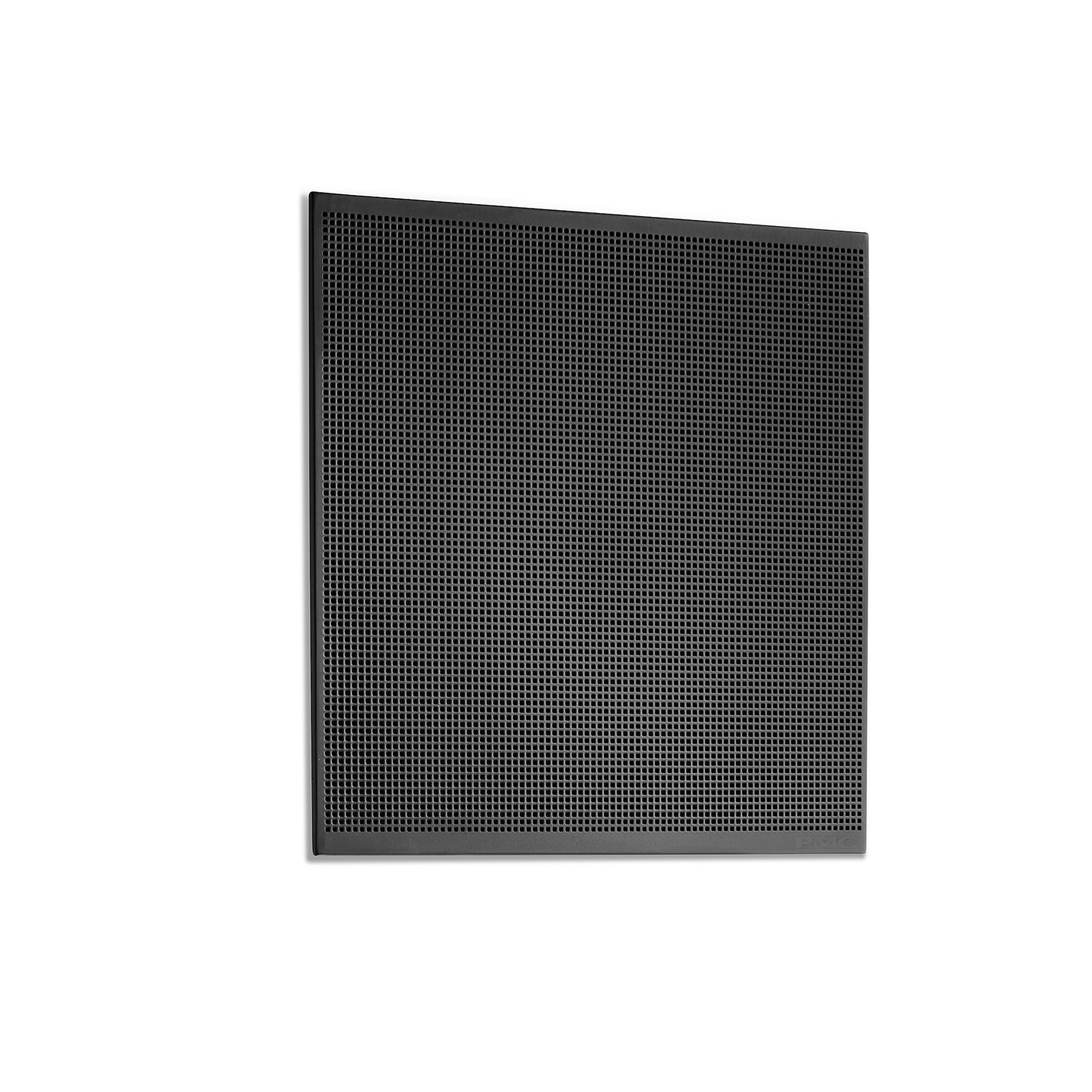

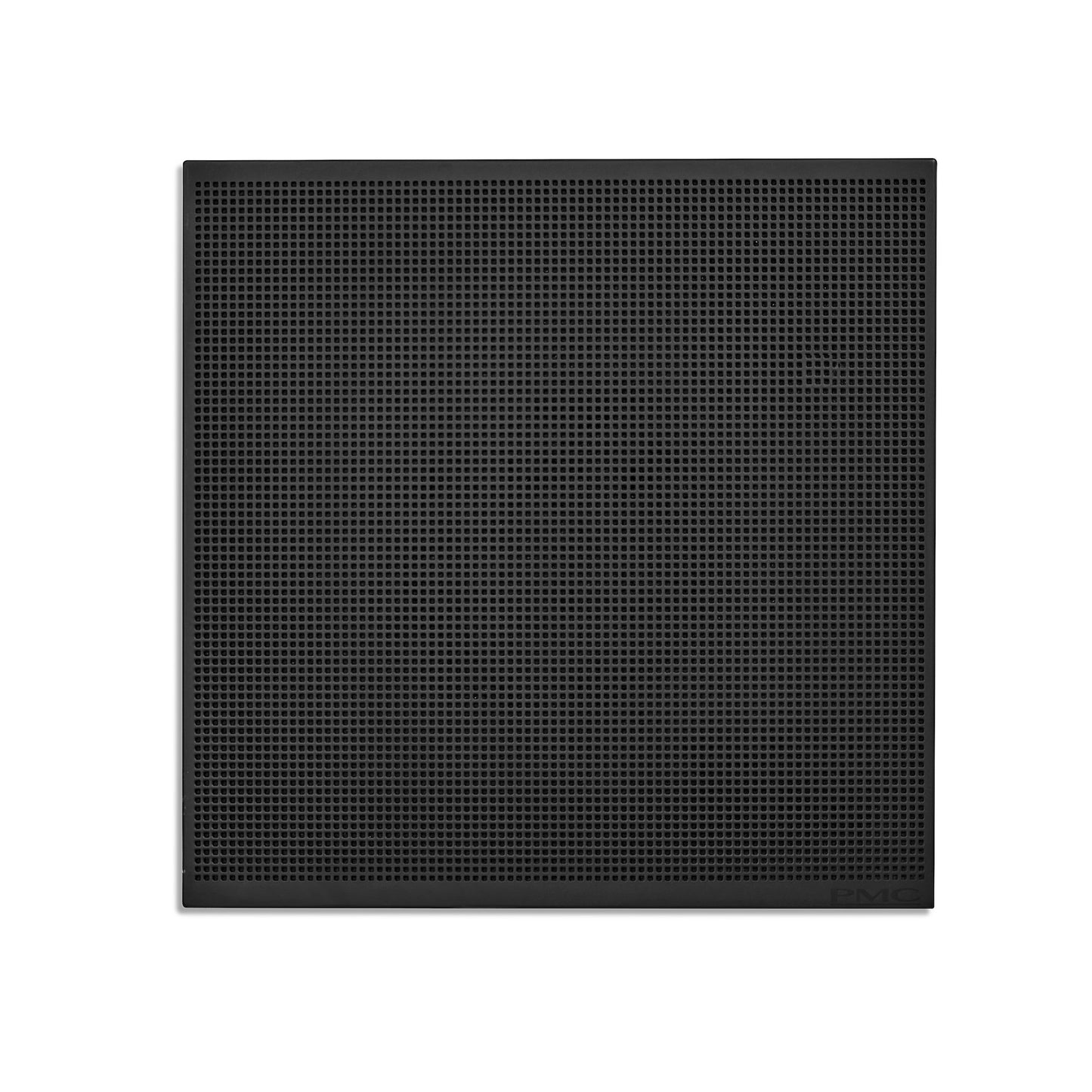

Black Silk Grille

ci30 black grille

PMK - Pre Mount Kit

This template can be screwed to studs or joists with the speaker cable secured to a supplied eyelet on the rear. After plastering & decoration it provides the perfect sized aperture for the speaker to fitted.

ci30 PMK

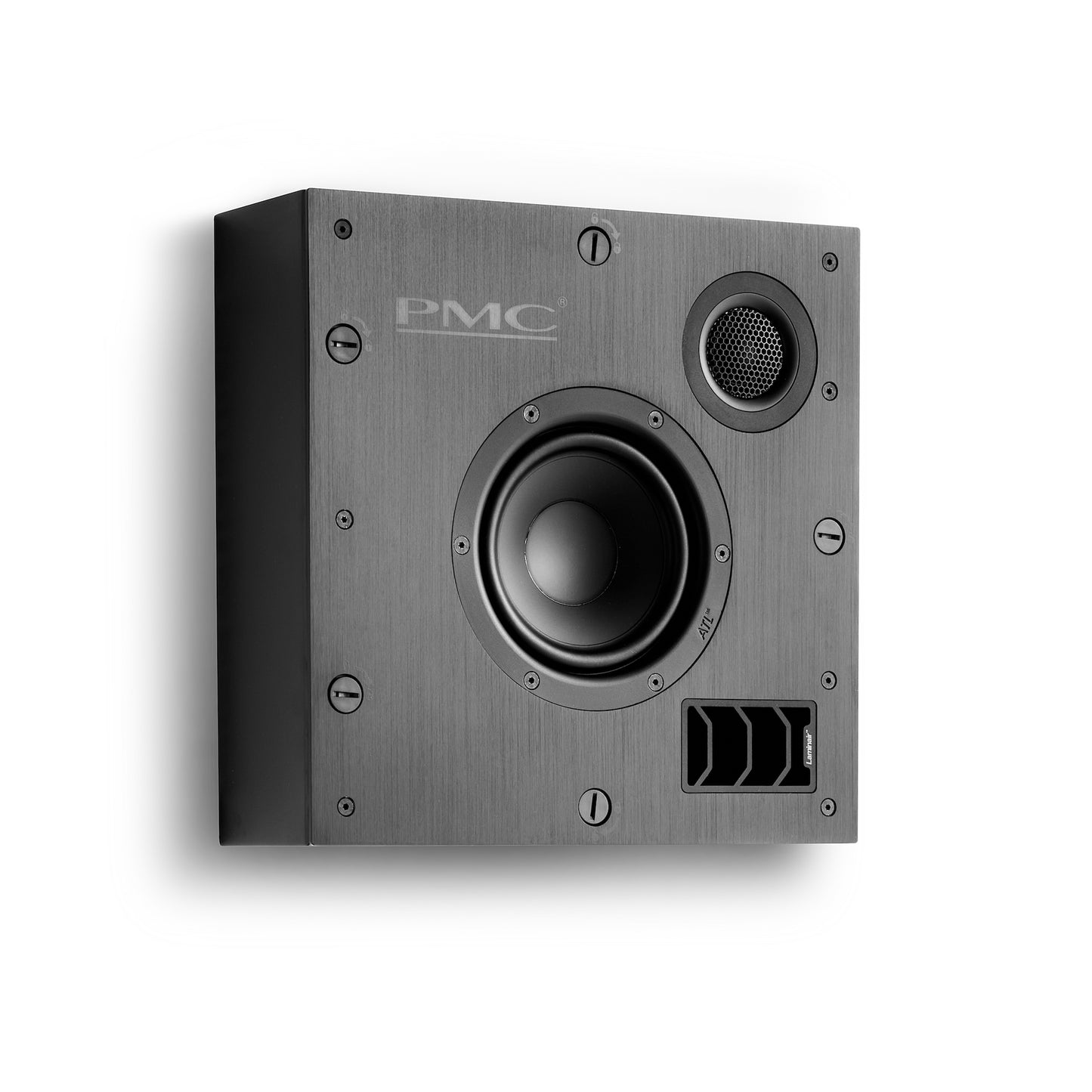

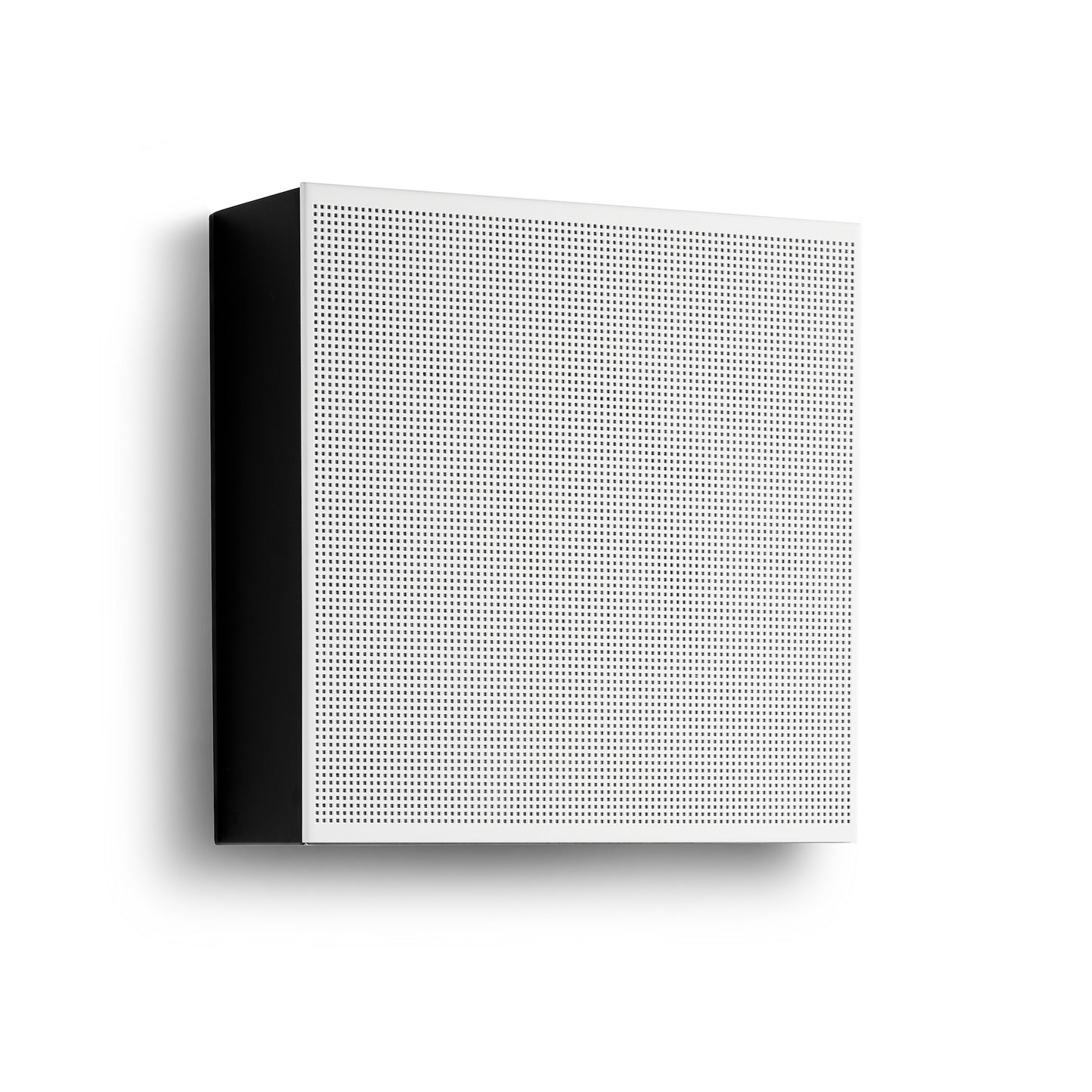

ci30 on-wall

On-wall mounting

On-wall mounting is just as straightforward as in-wall mounting, using the supplied interlocking bracket, which is designed to also offer pin-point level adjustment. For the ci30, ci45, ci90slim and ci65 an optional OWK - on-wallmounting kit in white or black may be fitted around the cabinets to conceal the in-wall mounting system creating an elegant and discrete on-wall loudspeaker.

Optional Extras

OWK - On Wall Kit


Convert the in-wall ci30™ into an on-wall loudspeaker with a white cabinet sleeve OWK Kit

ci30 white on wall kit

Includes the on-wall mounting template & 2 piece wall bracket

OWK - On Wall Kit


Convert the in-wall ci30™ into an on-wall loudspeaker with a black cabinet sleeve OWK Kit

ci30 black on wall kit

Includes the on-wall mounting template & 2 piece wall bracket

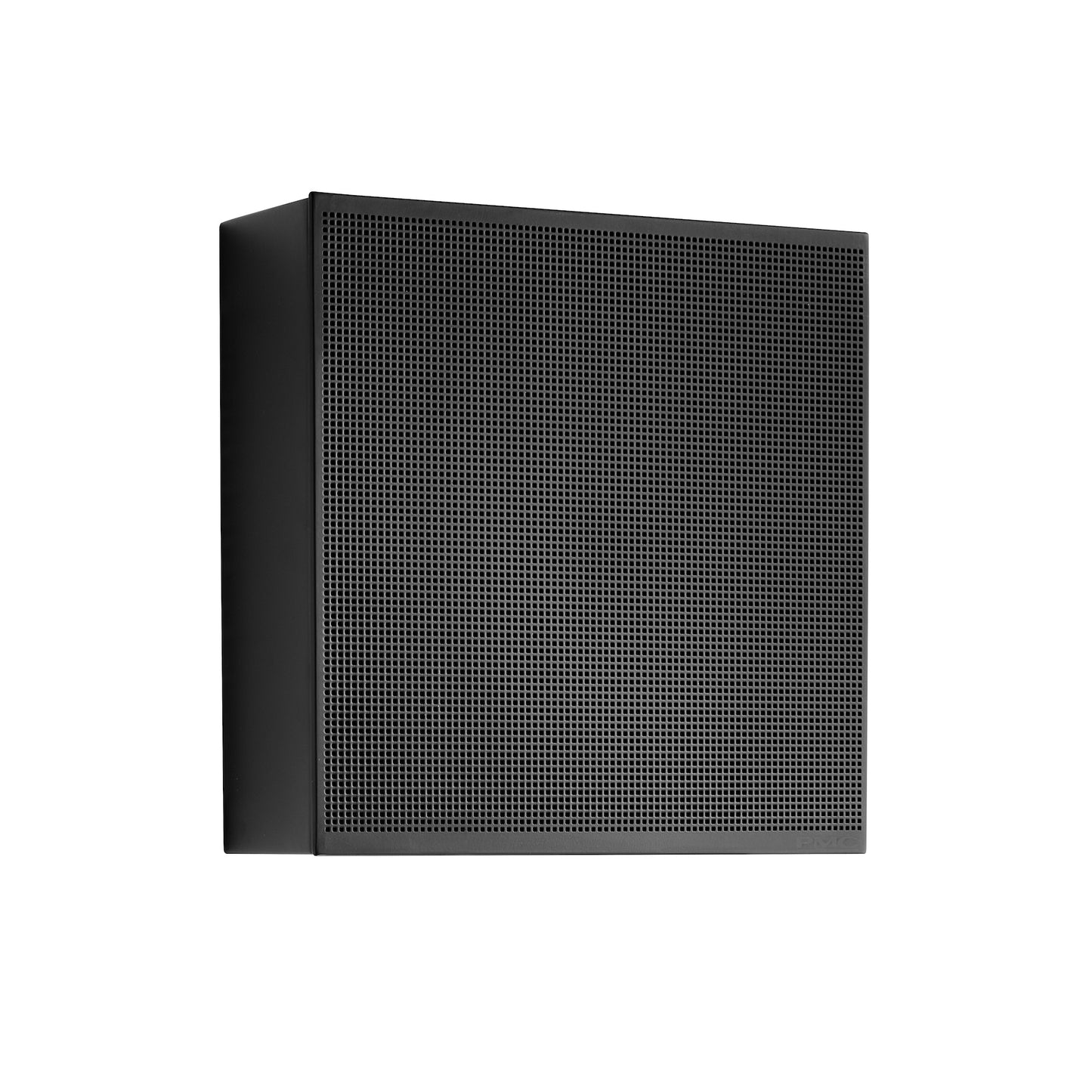

Black Silk Grille

Black grilles are available to ensure each model remains discreet in dark surroundings

ci30 black grille

BRKT - Wall Bracket

The BRKT allows movement in both vertical and horizontal planes allowing the cabinets to be angled.

ci30 wall bracket
ci30 exploded
