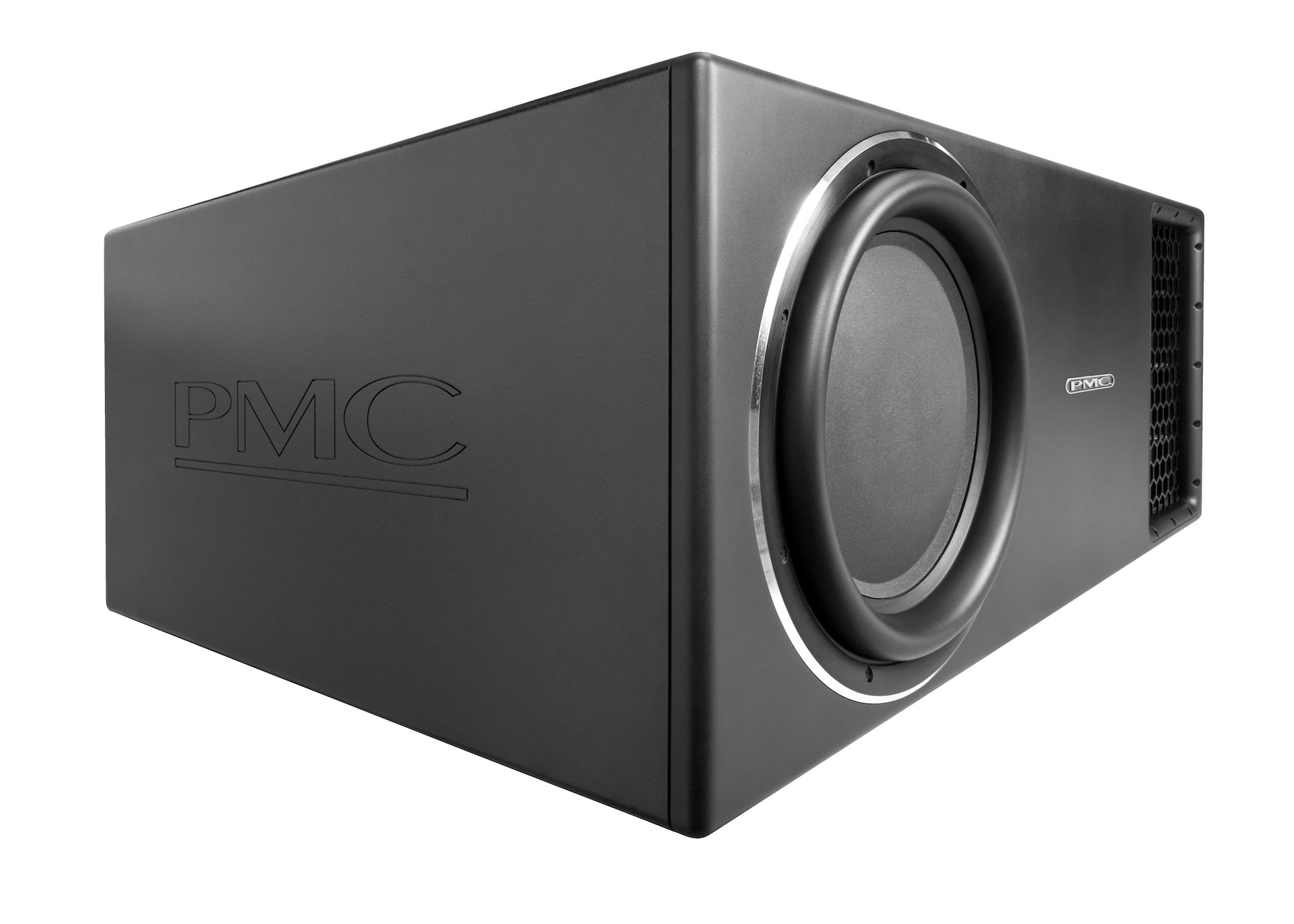

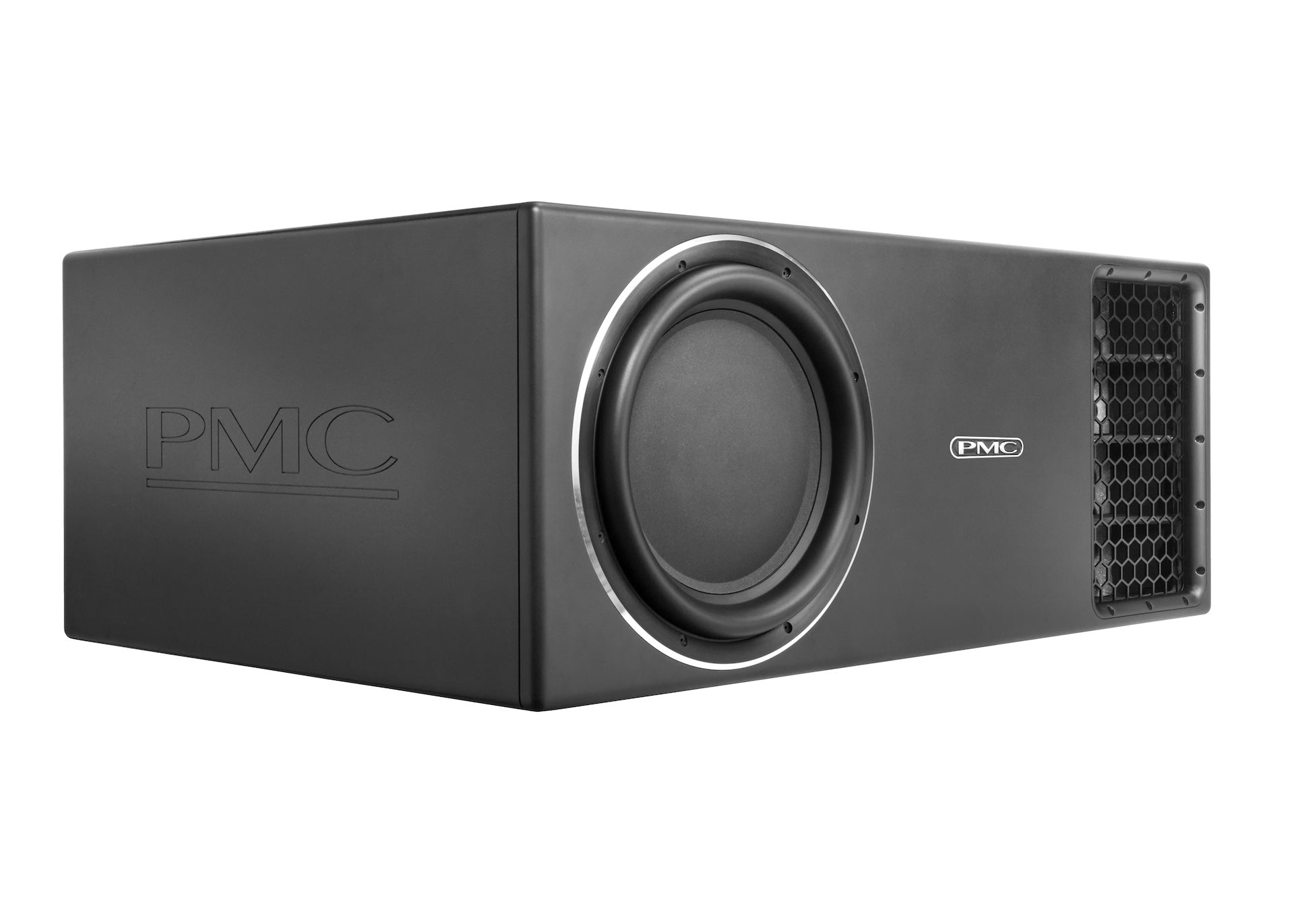

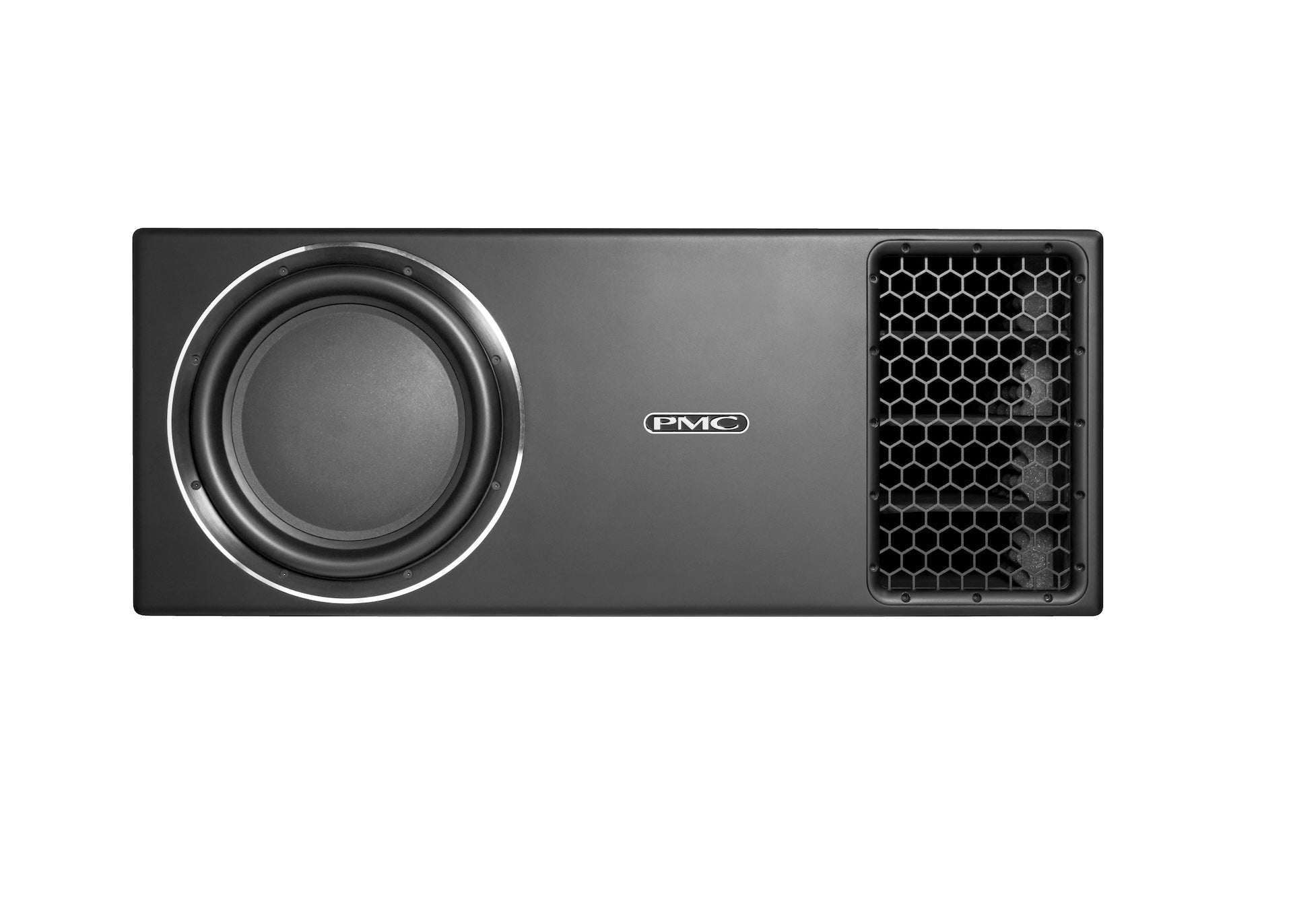

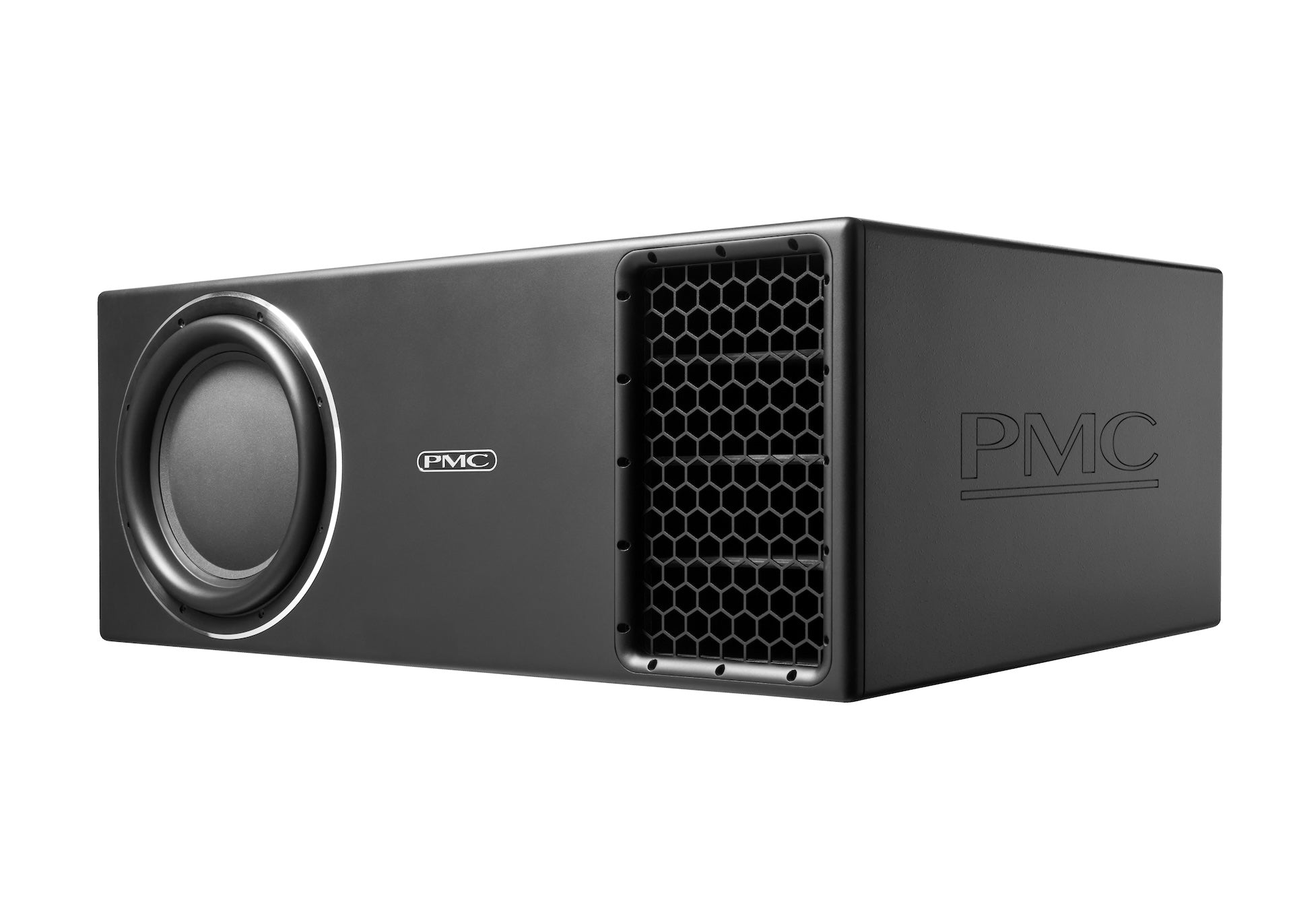

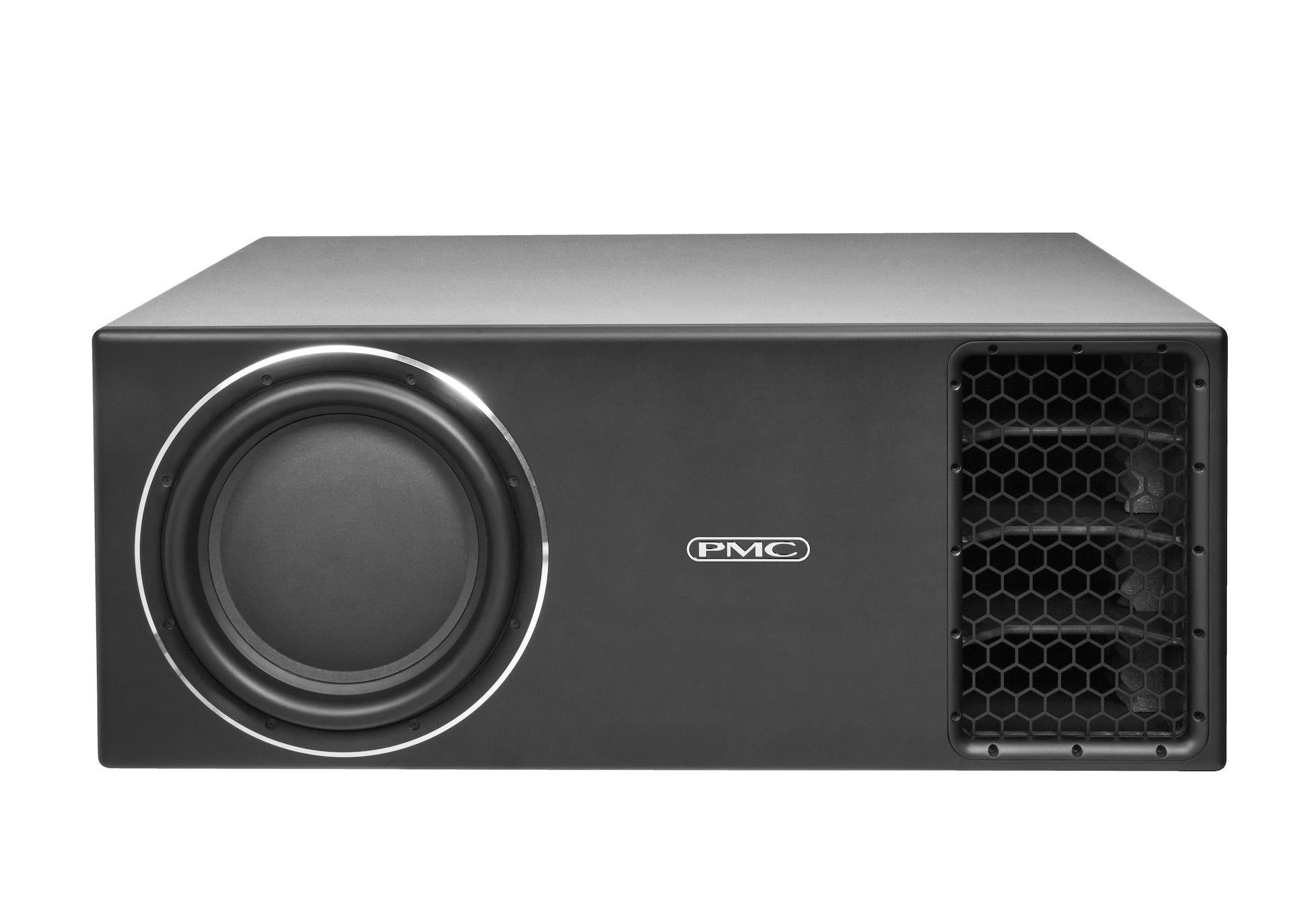

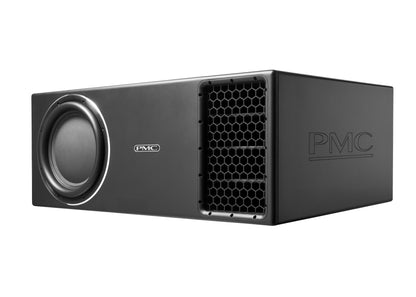

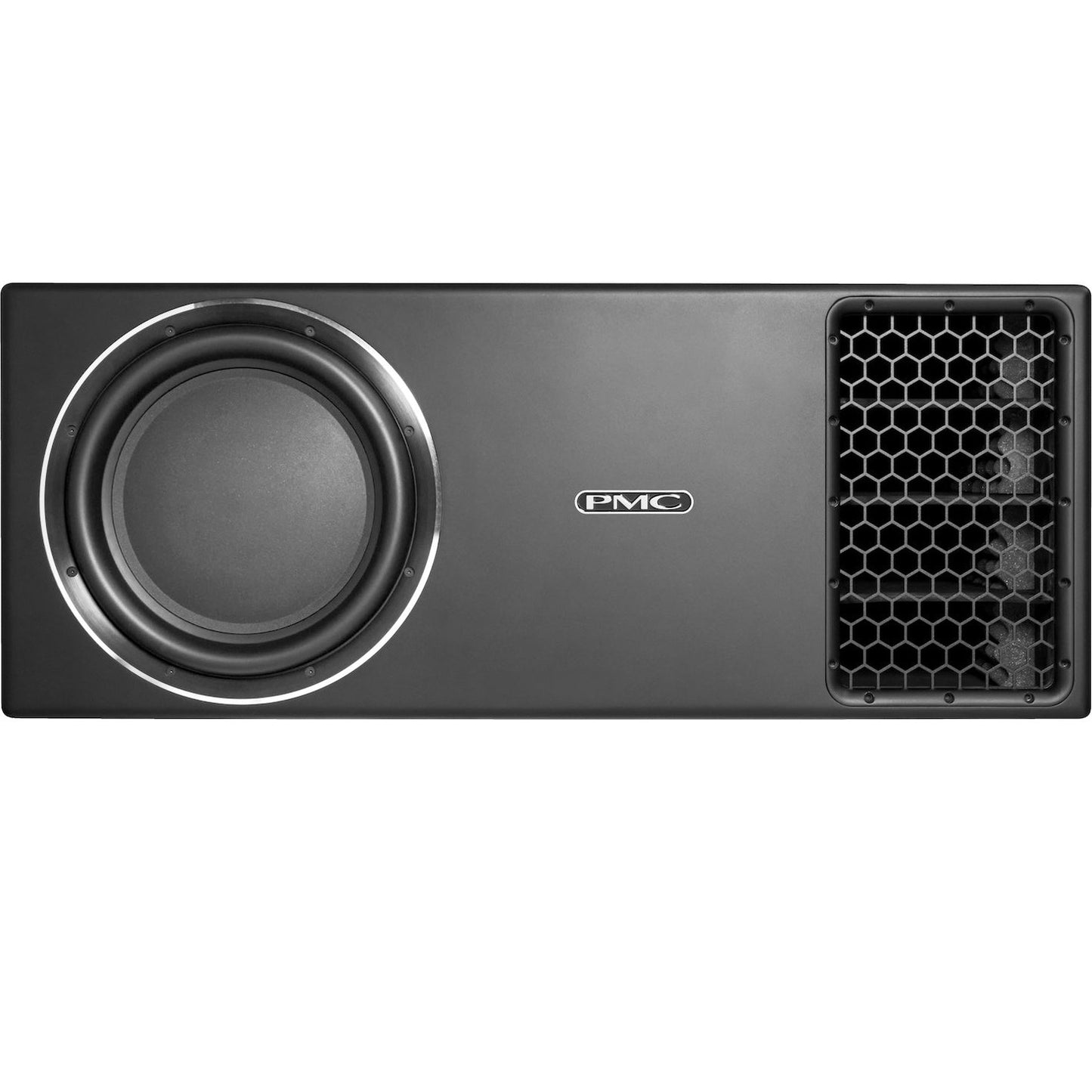

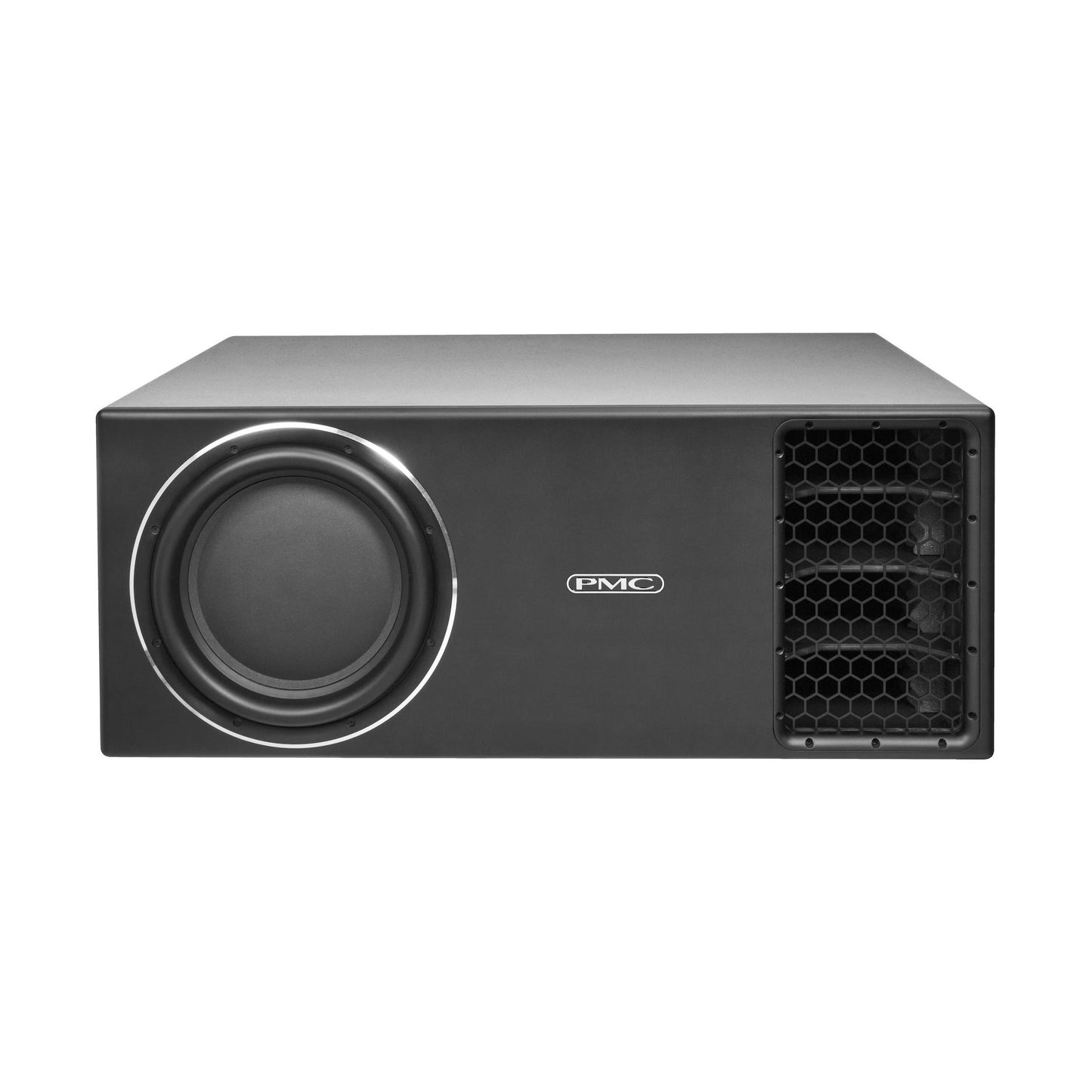

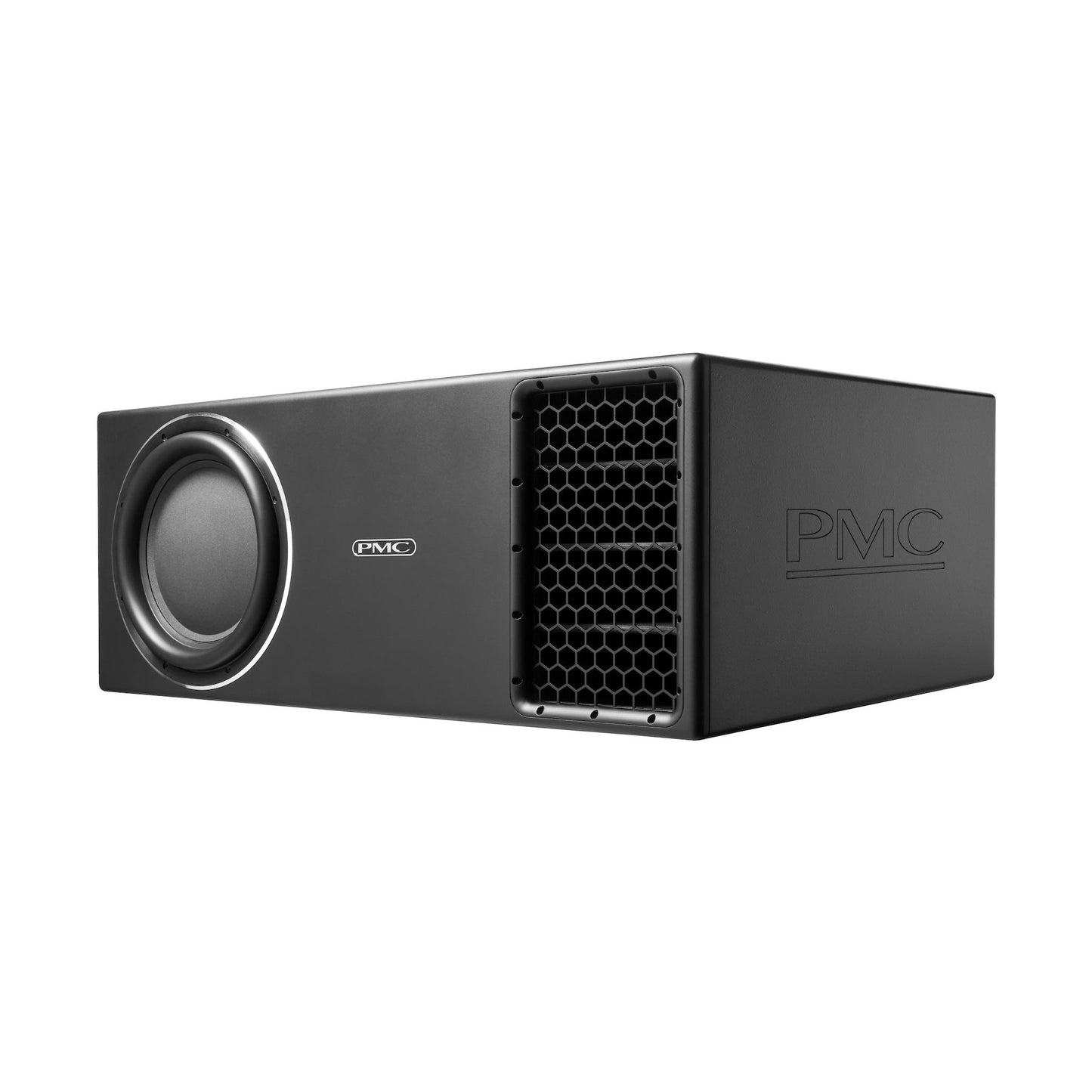

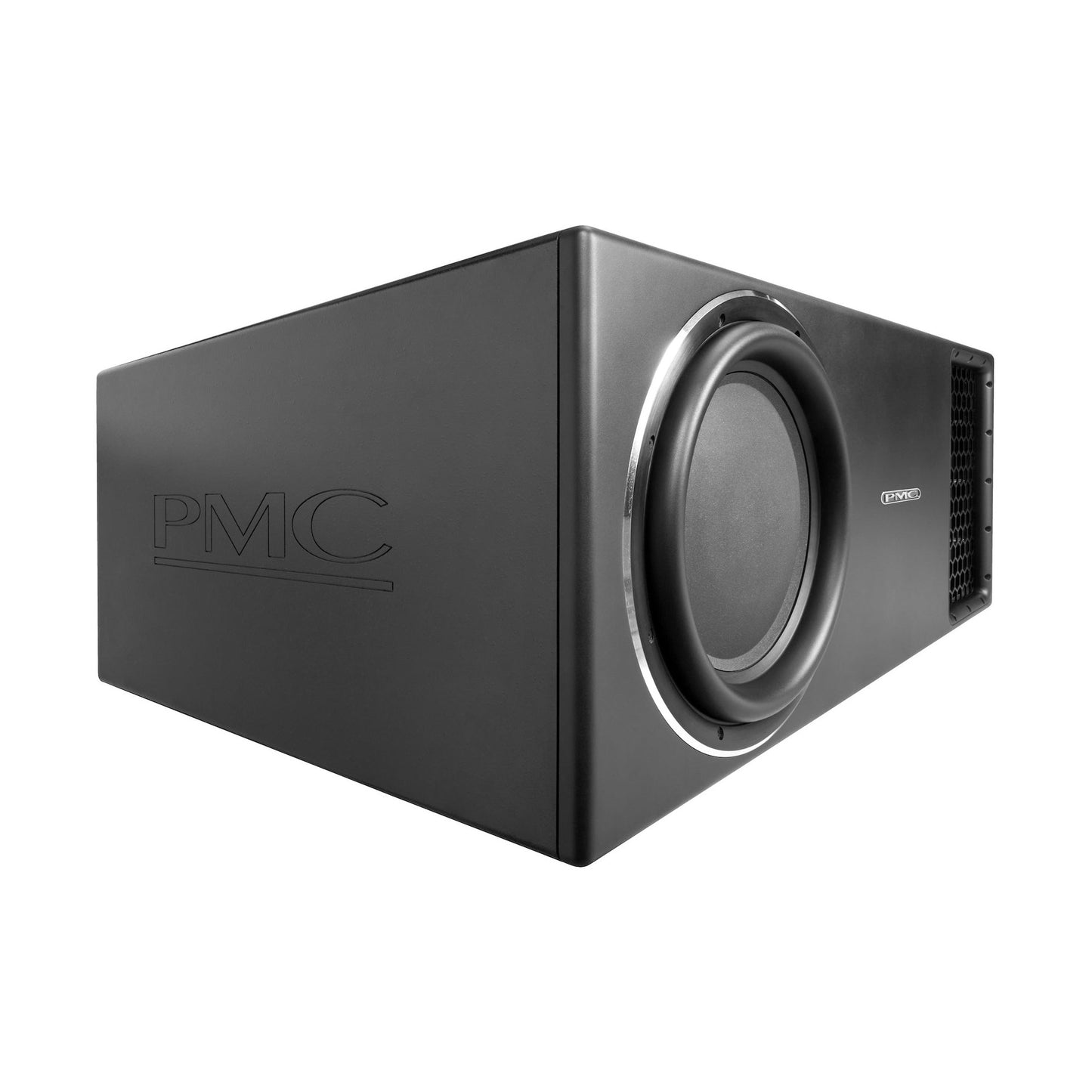

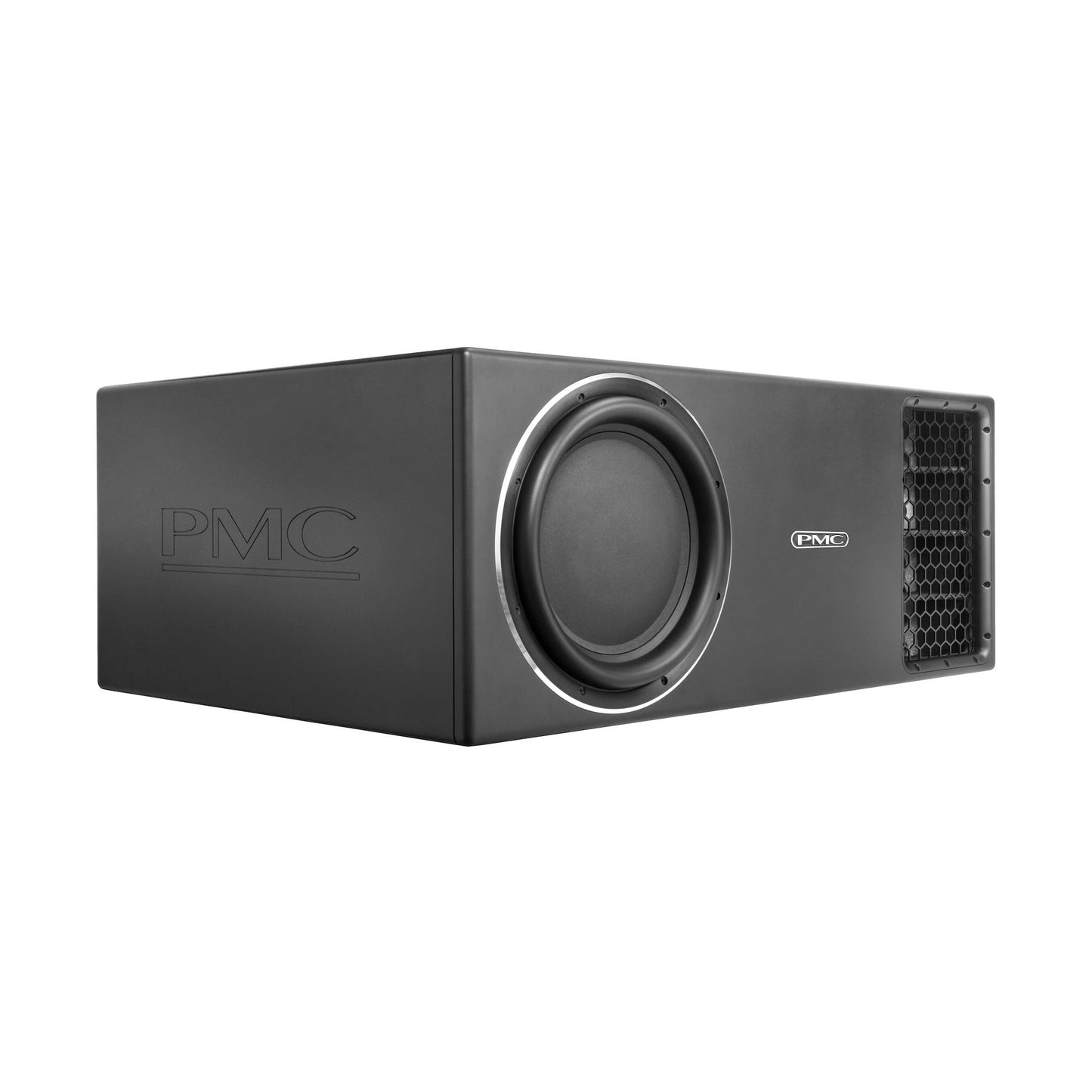

PMC BST Sub

Specifications

BST

LF Drivers

PMC 15

Frequency Response (-3dB)

17Hz - 300Hz

-3dB @1m half space, on axis)

Effective ATL™ Length

4.5m (14.5ft)

Max Continuous SPL

120dB

Measured in half space conditions (ground plane). Maximum measured RMS SPL at 1m that can be sustained for 2 hours without damage. Signal is M-Noise, filtered at 20Hz-20kHz using 2nd order Butterworth filters

Max Peak SPL

132dB

Power Handling

2500W

Height

432mm

Width

1092mm

Depth

808mm

Weight (per channel)

99kg

Packaged Dimensions

600x1290x1000mm

Packaged Weight

110kg

Impedance

4 ohm
