PMC BB5 XBD-A SE Active
PMC BB5 XBD-A SE Active
Build to order ships in 8-12 weeks
Sold As Each - RRP $169999/pair
Of all PMC’s astonishing speakers, the BB5 XBD Active is the one with the most impressive pedigree.

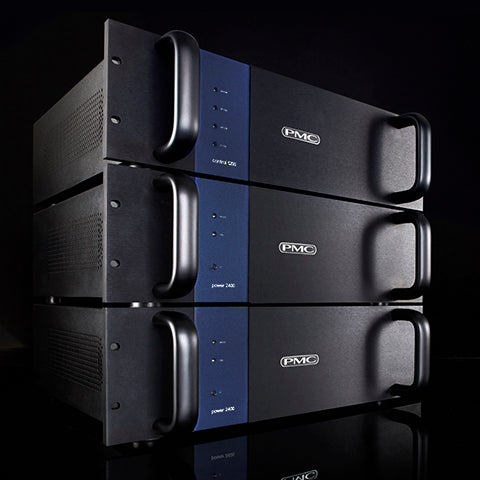

The twin-cabinet, BB5 XBD-Active, with its distinctive 15-inch Radial™ drivers, features a vast reservoir of separately housed power amplification - more than 2400W per channel - with 3dB of extra low-frequency headroom compared to the single-cabinet BB5, and a bass response that goes down to an awe-inspiring 17Hz, making for a wider frequency range than any other speaker we manufacture. The ultra-clean highs are provided by PMC’s 34mm high-frequency driver and the signature mid-range from the hand-crafted 75mm mid-range dome driver, so microscopic details are well and truly catered for.
Specifications
Available Finishes:SE Grand Walnut, SE Amarone, SE Natural Oak, SE Jet Black
Crossover Frequency:380Hz - 3.8kHz
Dimensions:H 2080mm (81.9”), W 432mm (17”), D 790mm (31”)
Drive Units:LF 2 x PMC 15” (380mm) Radial™ driver
MF PMC75 3” (75mm) fabric dome
HF PMC34 1.3” (34mm) soft dome
Effective ATL™ Length:2 x 4m (13ft)
Frequency Response:17Hz-25kHz

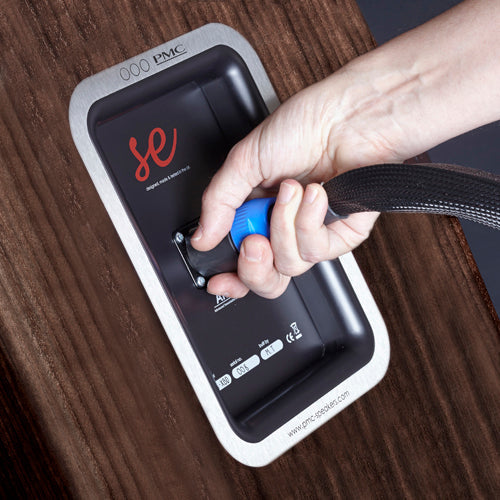

Input Connectors:Neutrik NL8, NL4Weight:136kg (299.2lbs)
Amplifier Power per Channel:
LF 2 x 900W
MF 300W
HF 300W
