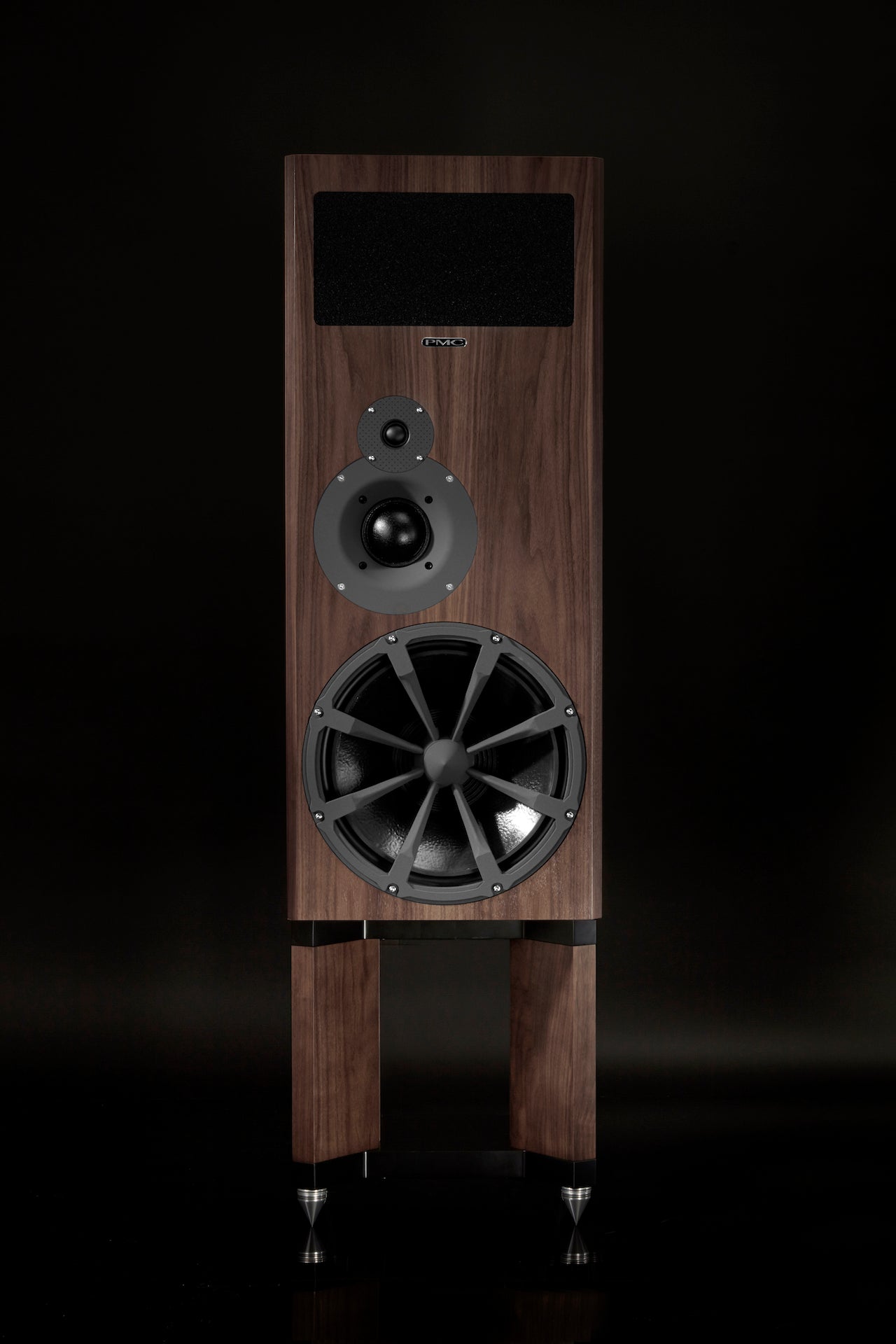

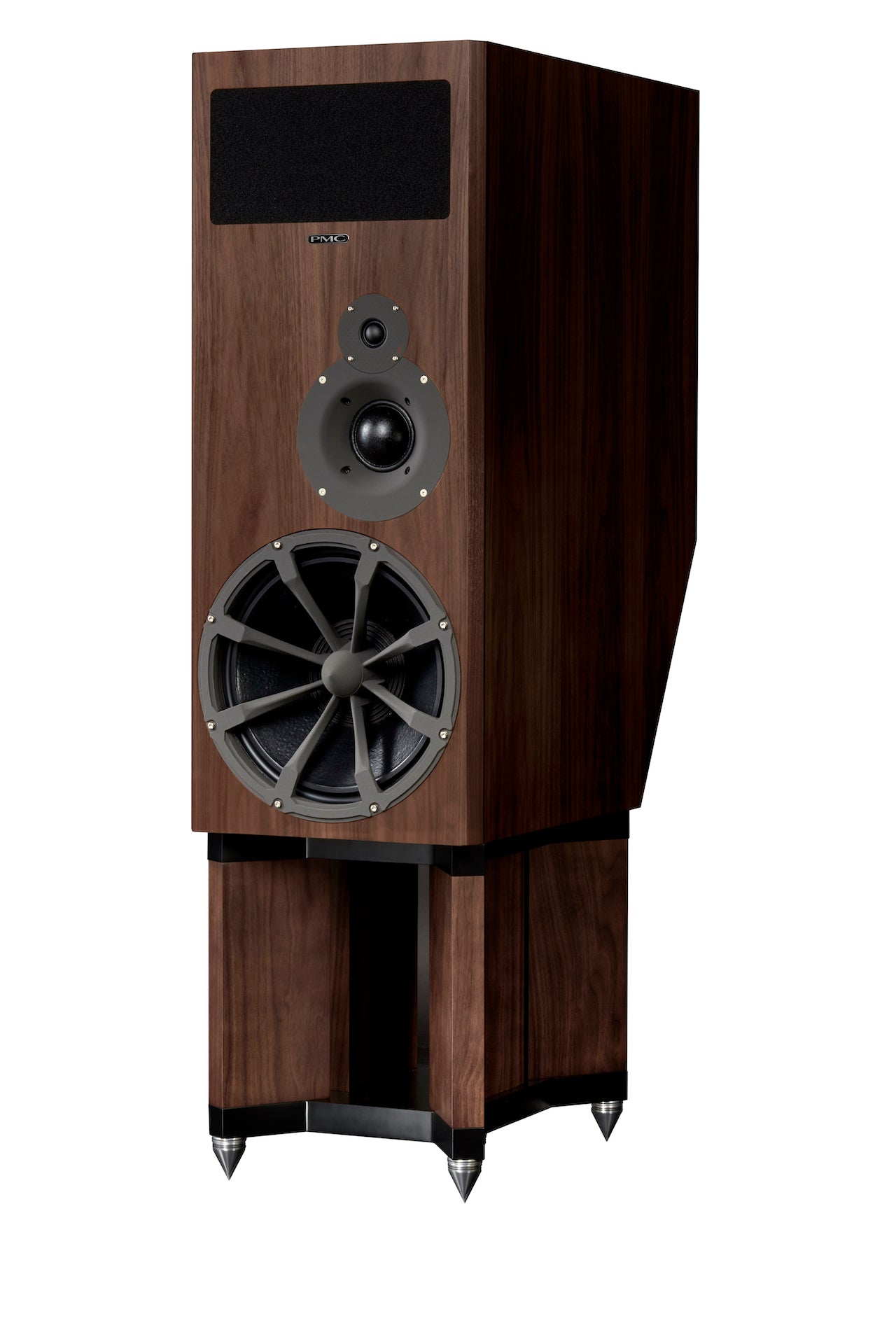

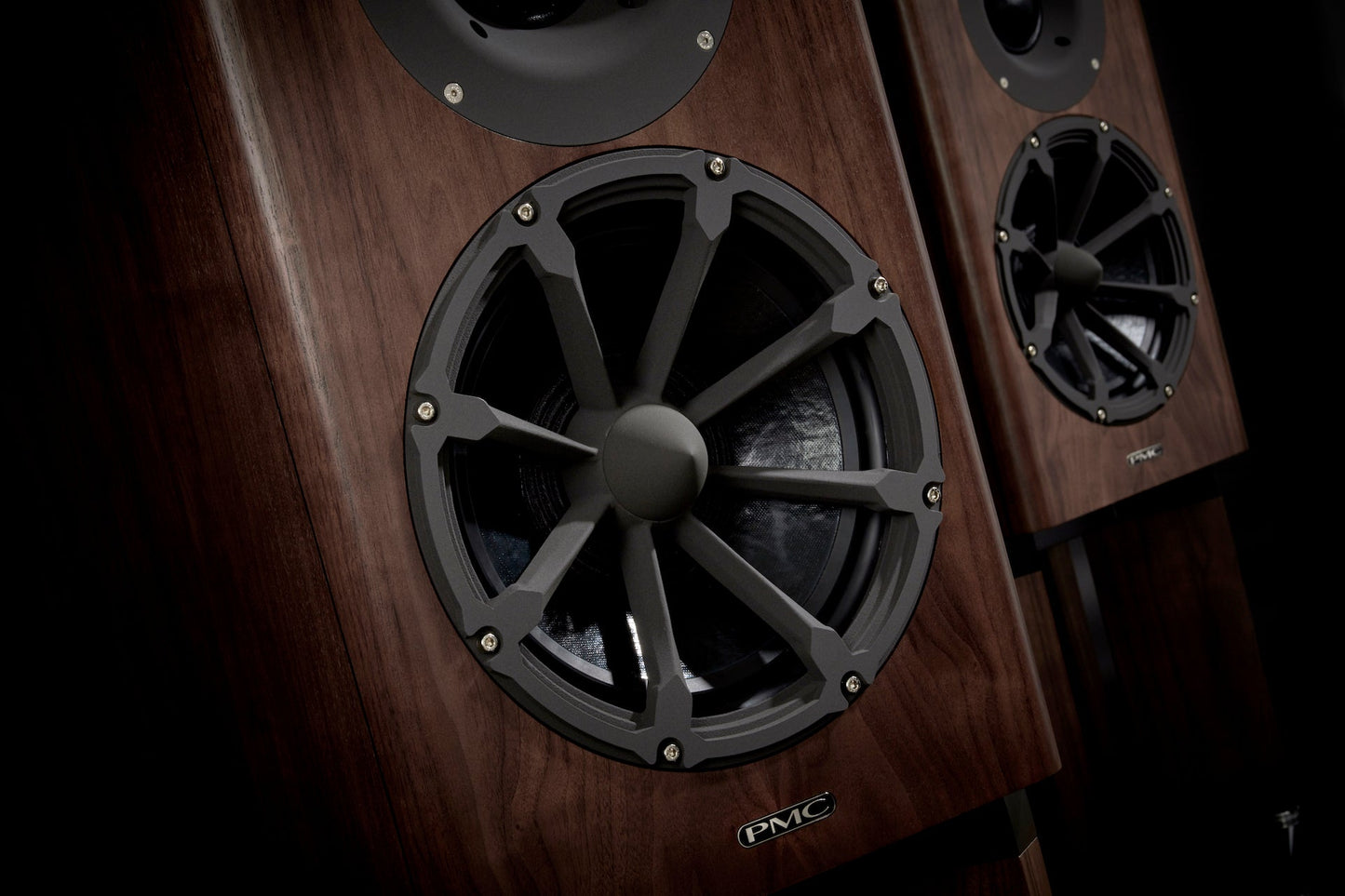

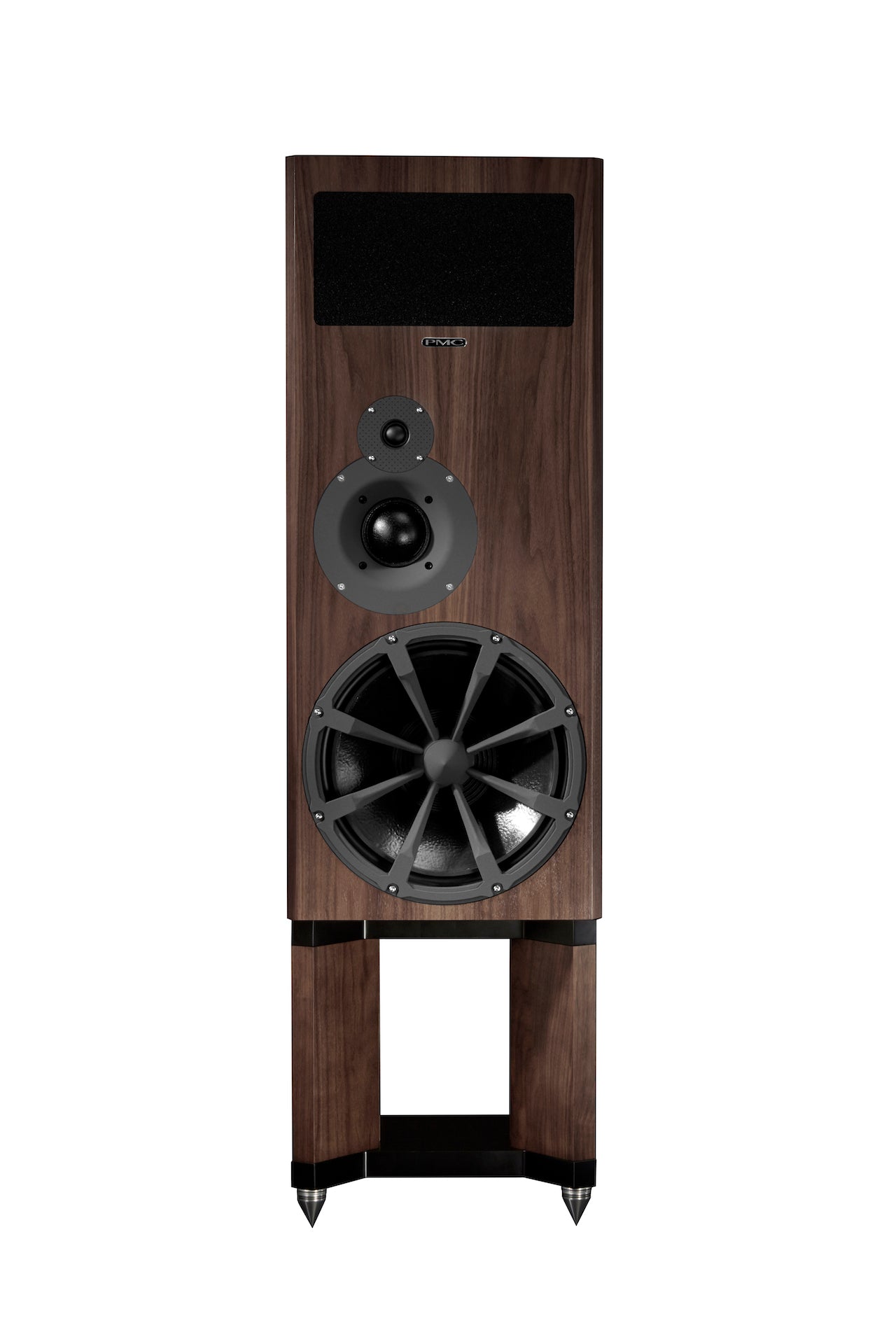

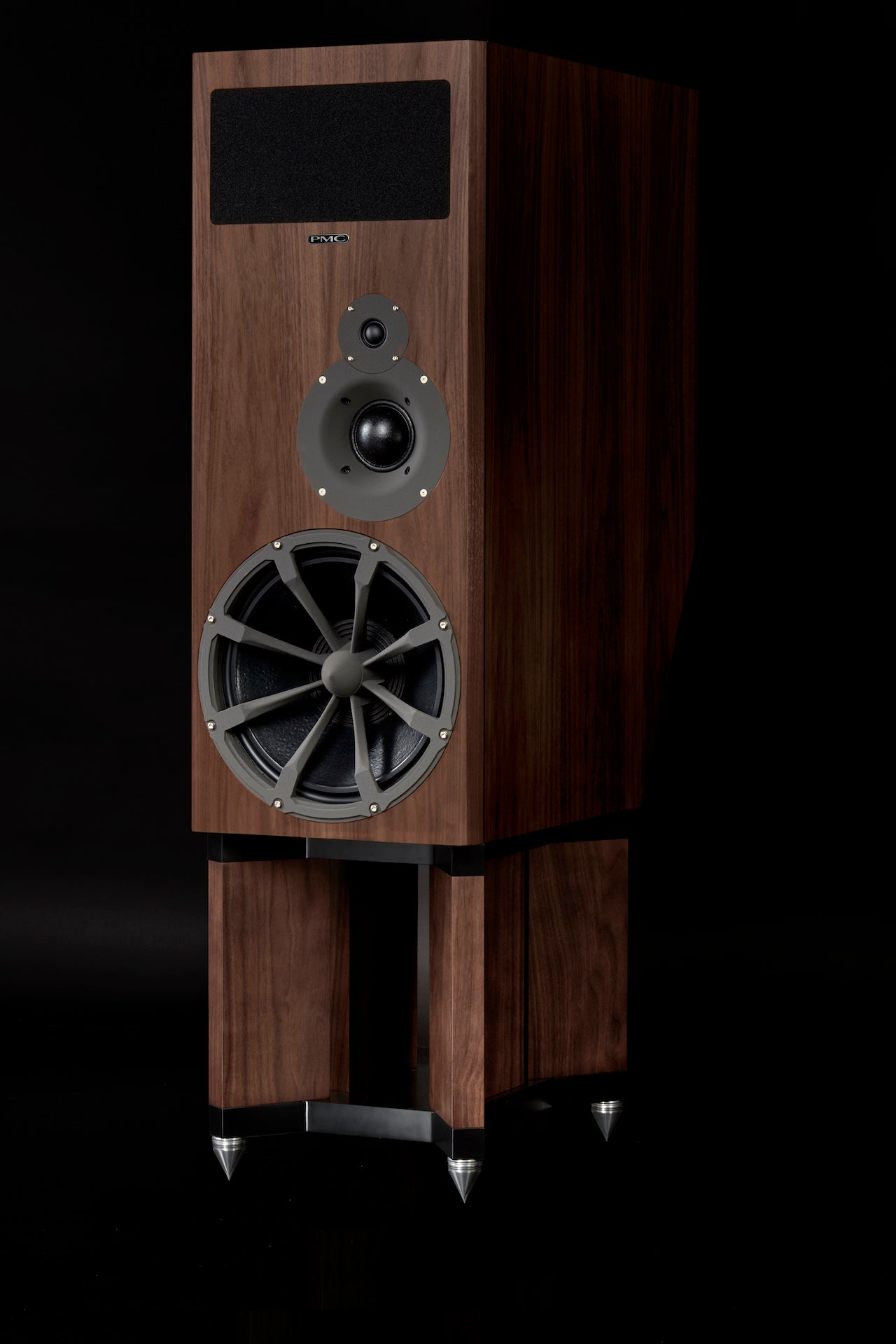

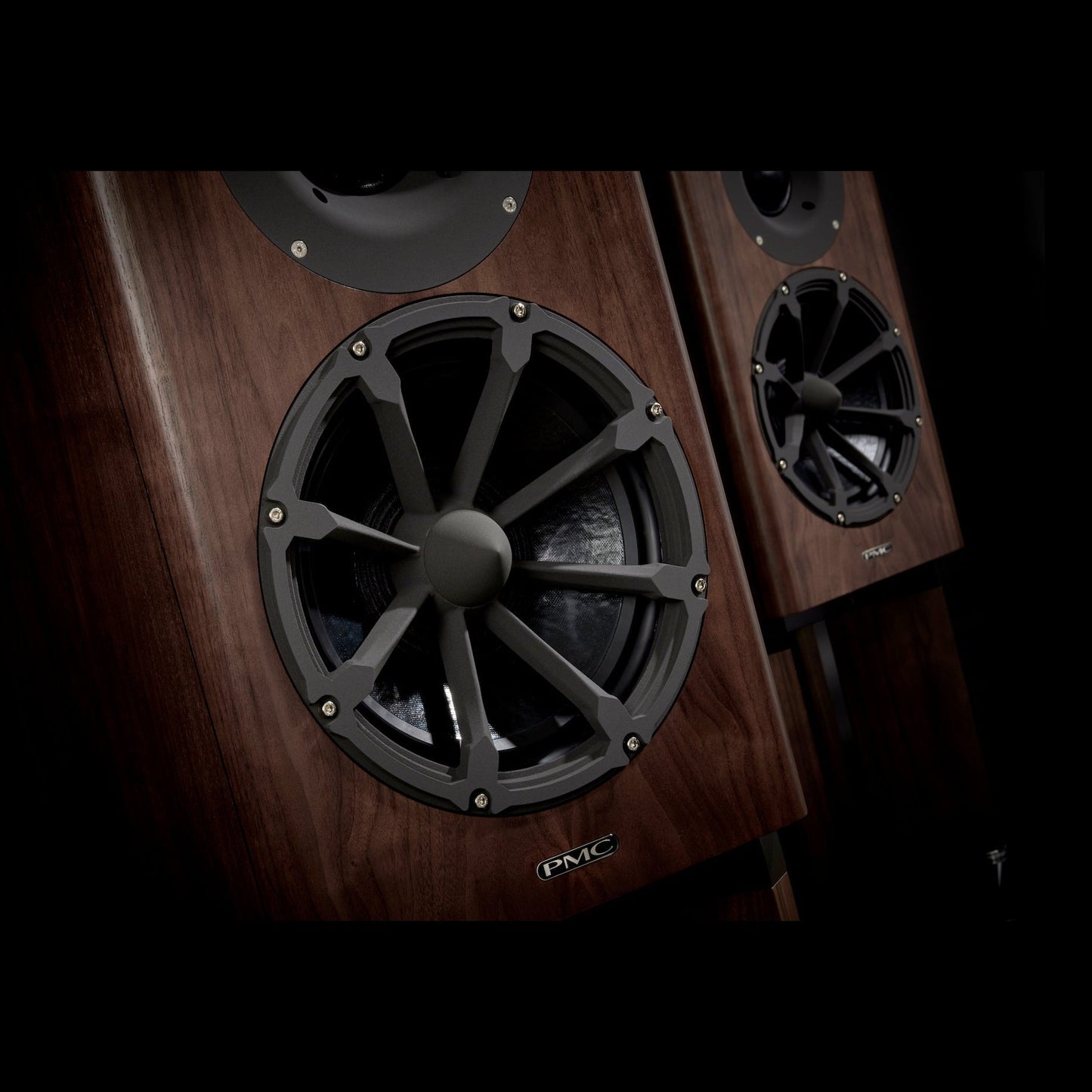

PMC BB5 SE Passive

Build to order ships in 8-12 weeks

Sold As Each - RRP $55999/pair

The BB5 is the largest in the range and sports a striking 15” Radial™, bass unit that complements PMC’s ATL™ (Advanced Transmission Line) bass-loading principle, allowing the speaker to handle music with the widest dynamic range with absolute ease and confidence. Yet the BB5 isn’t just designed for the loudest works; subtle acoustic material is reproduced with all the dexterity and delicacy of a compact design.

No other passive loudspeaker offers this level of resolution and feeling of inexhaustible headroom.

Specifications

Available Finishes:SE Grand Walnut, SE Amarone, SE Natural Oak, SE Jet Black

Crossover Frequency:380Hz - 3.8kHz

Dimensions:1040mm (41") H x 432mm (17") W x 790mm (31.1") D

Stand: 500mm (19.7") +Spikes H x 430mm (16.9") H x 518mm (20.4")

Drive Units:LF - PMC 15” 380mm Radial™ driver
HF - 27mm SONOLEX™ soft dome Ferrofluid cooled
MF - PMC75 SE - 75mm soft dome

Effective ATL™ Length:4m 13ft

Frequency Response:17Hz-25kHz

Impedance:4 Ohm nominal

Input Connectors:3 pairs 4mm sockets (Tri-Wire or Tri-Amp)

Sensitivity:92dB 1w 1m

Recommended Amp Power:10 - 700W

Recommended Drive Unit Torque Settings:HF: 0.6Nm MF: 1Nm LF: 3Nm

Weight:87kg (191lbs) & Stands 19kg (42lbs)
