MJ Acoustics

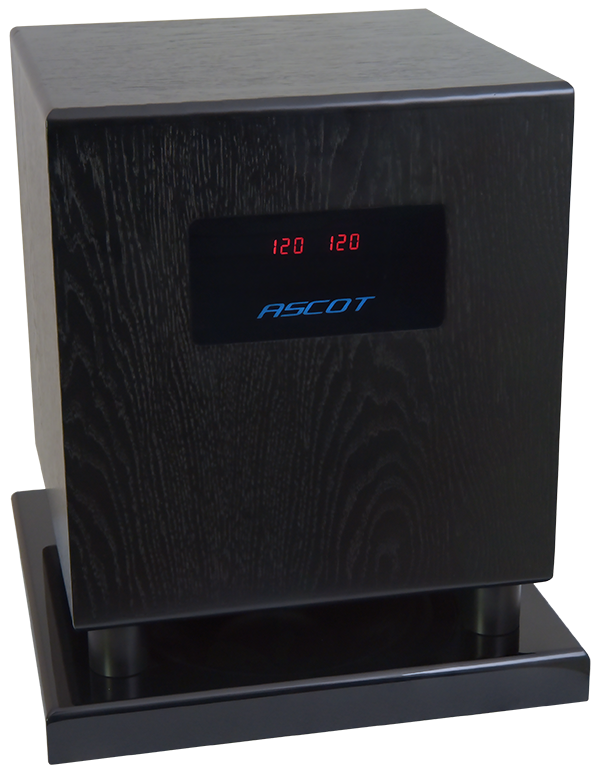

MJ Acoustics Ascot Subwoofer
MJ Acoustics Ascot Subwoofer
SRP: $3899 In Black AshStandard Finishes
$4699 Bespoke Finishes
Introducing Ascot a Master-Class Subwoofer
The beating heart of your Audio System.
Compact yet incredibly powerful, the Ascot delivers astonishing bass performance without sacrificing space. Equipped with a single 10-inch ultra-long-throw driver and a dedicated 200-watt amplifier, this subwoofer punches far above its weight.
Experience the precision of MJ Acoustics engineering. The Ascot boasts advanced MOSFET technology, high-capacity capacitors, and sophisticated crossover circuits, ensuring tight, controlled bass that complements any audio system.
Take command of your sound with features like variable crossovers, variable phase control, and LFE bypass. Whether you're immersed in a blockbuster movie or enjoying your favourite music, the Ascot delivers the perfect bass foundation.
Crafted with meticulous attention to detail, the Ascot's robust cabinet and advanced protection circuitry guarantee years of reliable performance. Its sleek design and compact footprint make it the ideal choice for smaller rooms (6m x 5m) or those who prefer a minimalist aesthetic.
Upgrade your audio experience with the Master-Class Ascot. It's more than just a subwoofer; it's the missing piece to your audio puzzle.
ASCOT Subwoofer | Detailed Specifications
Amplifier
200-Watt Class A/B Mosfet
High voltage / current Capacitors and High-Capacity Reservoir
Frequency Response
13Hz – 200Hz
Twin Crossover Range
20Hz – 120Hz - 1st Crossover
20Hz – 120Hz With (200Hz Bypass) - 2nd Crossover
Input Connectors
High level : Neutrik speakon
Low Level : 2 x RCA (24 Karat Gold Plated)
LFE : 1 x RCA (24 Karat Gold Plated)
LFE / Centre : 1 x RCA (24 Karat Gold Plated)
Twin Gain Controls
-99 – 0 dB 1st crossover
-99 – 0 dB 2nd crossover
Phase Control
0 – 180° with 1° Increments
Remote Control
Smart Remote App ( IOS / Android )
RM1 Line of sight Hand Control
Electronics
D.I.P. (Dynamic Intelligent Protection)
D.A.M.P. (Digitally accurate Mirco-Processor) 3rd Gen
Digital Display with Output Meter
12-Volt Trigger Input
Auto On / Off Circuit (with sensitivity adjustments)
Front Facing Illuminated Display
Cabinet
18 / 25mm Acoustically Inert Veneer Balanced MDF
36mm Solid Isolation Plinth
Dimensions
340 x 410 x 340mm (W x H x D)
Weight
24 Kg
Driver
10 Inch (250mm)
Ultra Long Throw
Heavy Duty Steel Basket
Dual high intensity full saturation magnets
Extended pole piece
Mass Balanced Cone Assembly
Finish
Black Ash (Standard)
Light Oak (Standard)
American Black Walnut (Standard)
Cherry (Standard)
Custom Veneer (Additional Cost)
Custom Paint (Additional Cost)
