MC² Audio

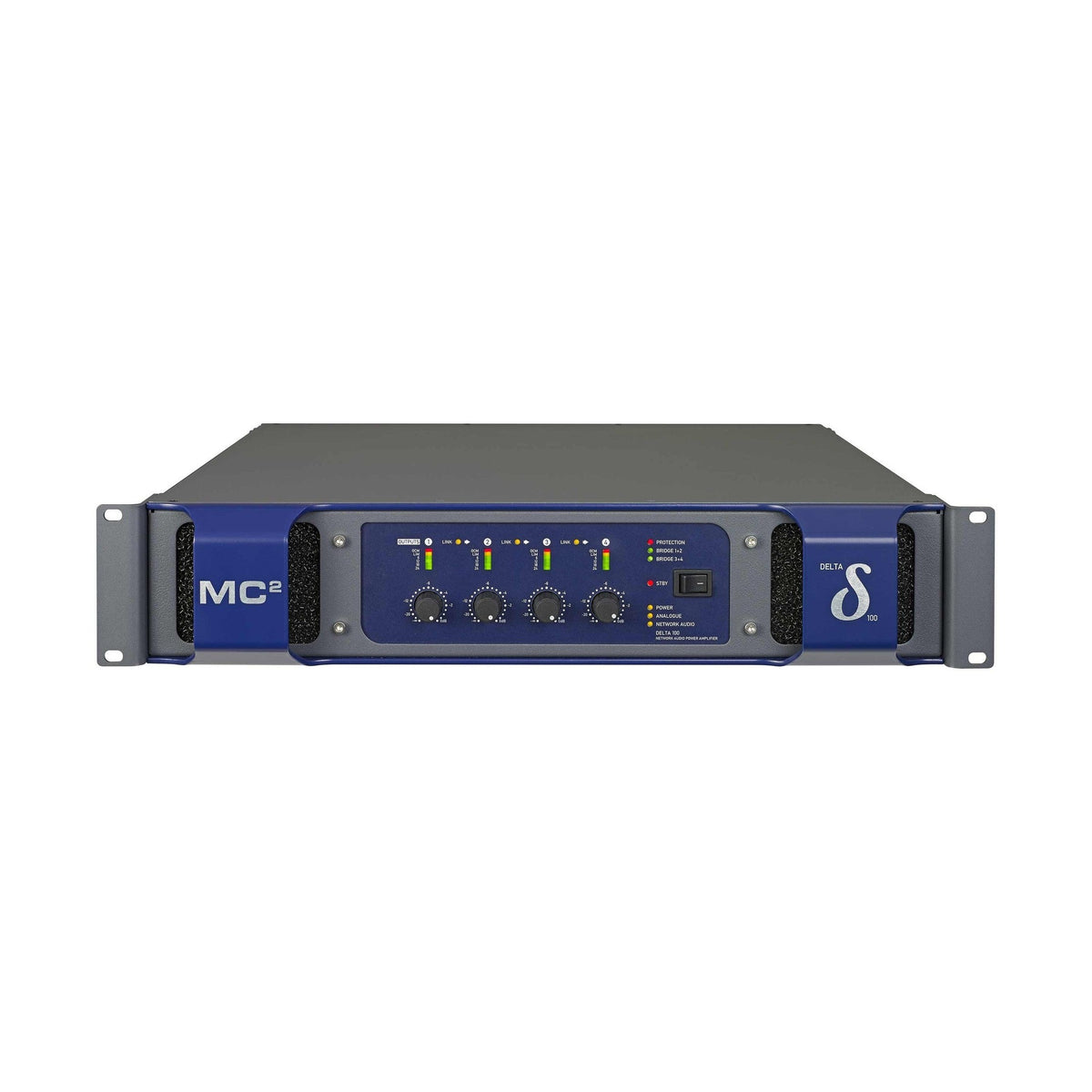

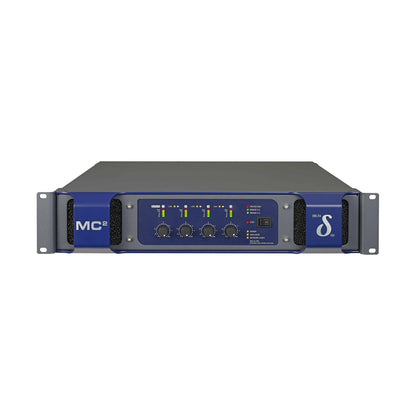

MC² D100 ND Delta-Series Amplifier - Open Box
MC² D100 ND Delta-Series Amplifier - Open Box
RRP: $8299
Delta-Series Amplifiers
Network Audio Power Amplifiers
Delta Series offers the assurance of MC2’s highest quality audio power amp technology with future proofing via the inclusion of simple to use digital audio networking (optional).

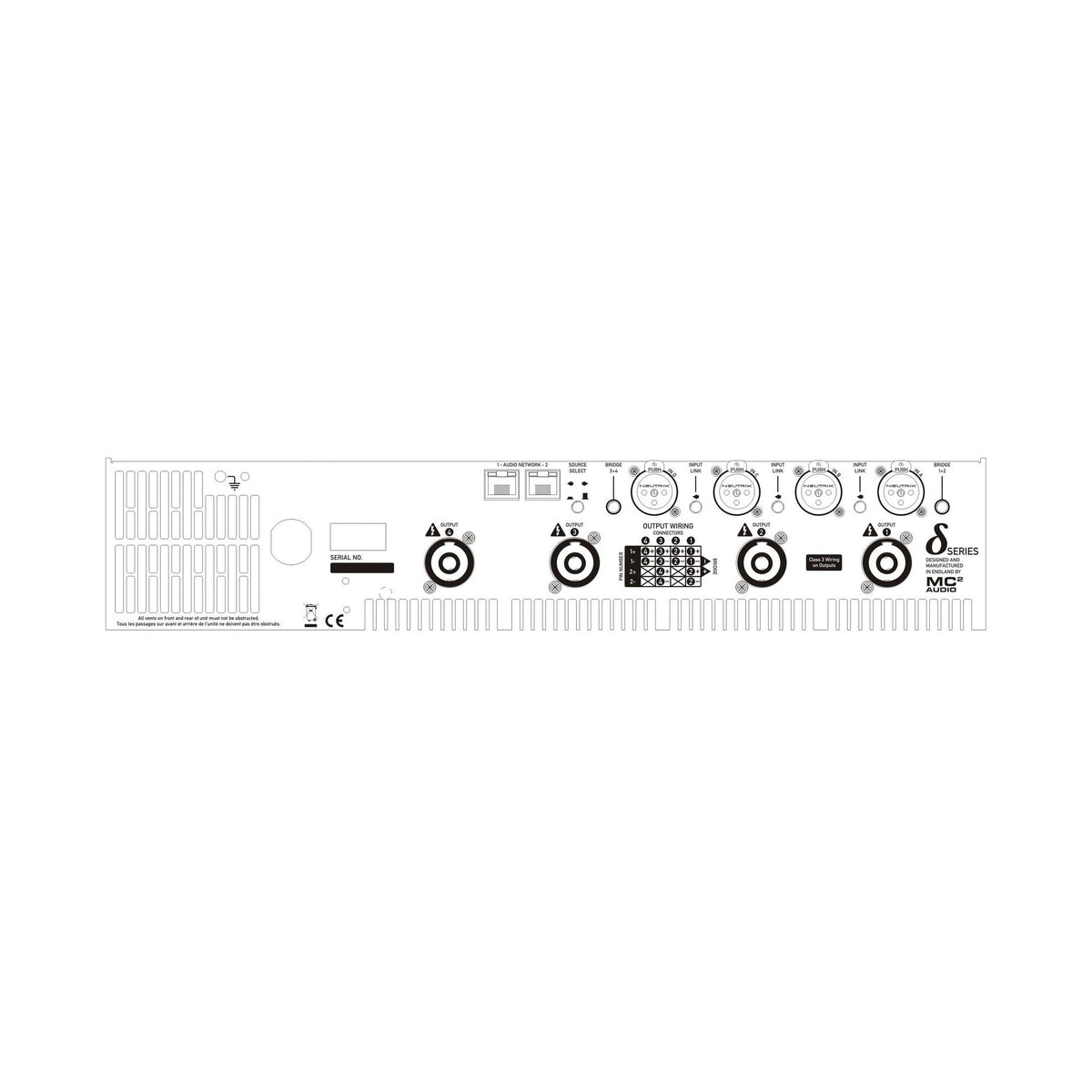

A rear panel switch allows the amplifier to accept either four channels of analogue audio or pick up four channels of networked audio, via Dante (optional), which is then converted using 24 bit 96kHz DACs.
Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required. Switch back to analogue to use as a powerful traditional quad channel amplifier.
Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.
All MC² Audio products are covered by a 5 year warranty.
Specifications
| Number of channels | 4 |
| Output Power: (per channel)* | |
| 8 ohms | 1400W |
| 4 ohms | 2700W |
| 2.7 ohms | 3700W |
| 2 ohms | 3500W |
| Output Power: (bridged) | |
| 8 ohms | 5400W |
| 4 ohms | 7000W |
| THD%: (@1dB below max output) | |
| @ 1kHz | < 0.08% |
| 20Hz to 20kHz | < 0.1% |
| Gain / Sensitivity: | |
| Gain | 26/32dB |
| Sensitivity (for max power) | 10.7dBu |
| Frequency Response: | 20Hz to 20kHz (+ 0/- 0.5dB) |
| Power Consumption: (< 5W in standby) | |
| Nominal @ 240v into 4 ohms | 7.5A |
| Nominal @ 120v into 4 ohms | 15.5A |
| Dimensions: (2U) (mm) | |
| Amplifier | 88(h) x 482(w) x 428(d) |
| Single Box (UK shipping) | 230 x 580 x 560 |
| Double Box (outside UK) | 250 x 610 x 600 |
| Weight: | |
| Amplifier | 10.8kg |
| Boxed (shipping weight) | 12.3kg |
