Krix

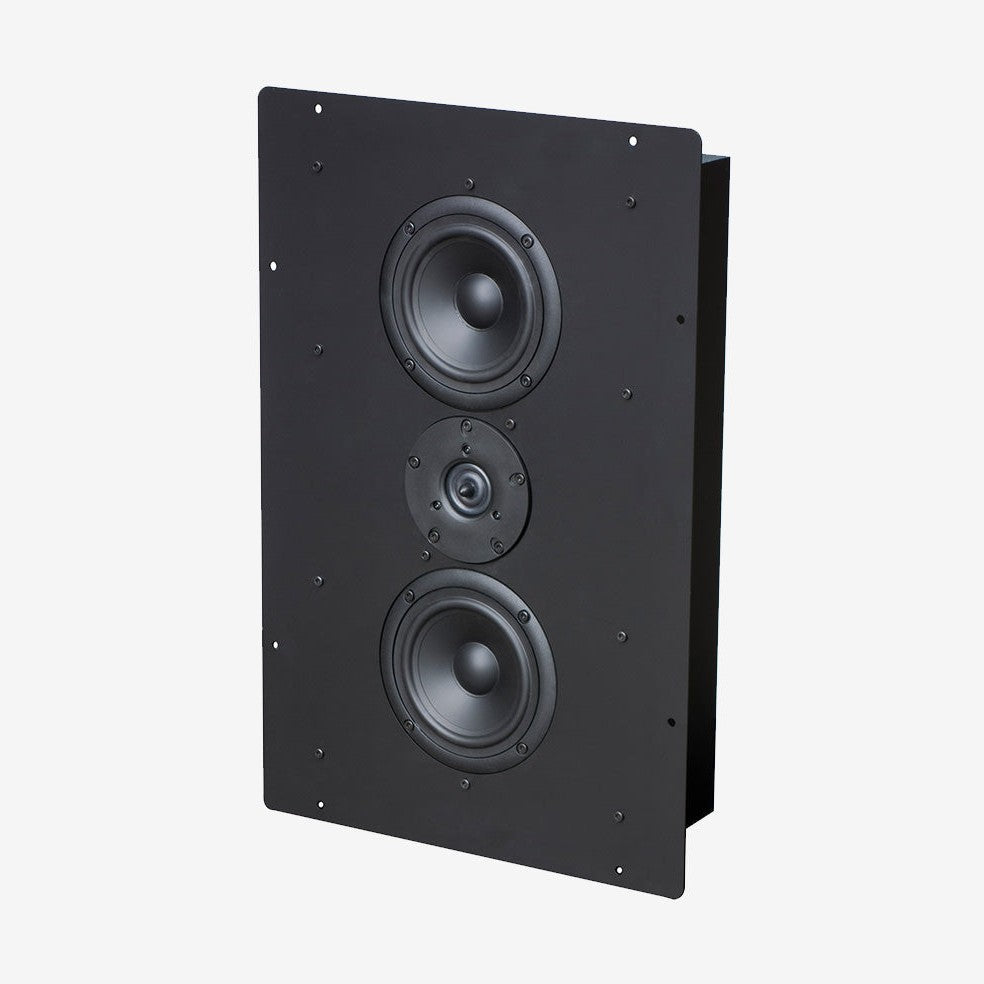

Krix Scenix In-Wall Speaker
Krix Scenix In-Wall Speaker
Sold As Each - RRP $1450
Overview
The Scenix provide a discreet solution for your dedicated home cinema, without sacrificing performance.
A compact design in wall speaker modeled around Krix’s award-winning Acoustix Mk2 Bookshelf speaker, the Scenix uses the same symmetrical, three driver, two-way design to provide greater intelligibility and transparency across the frequency range – even when positioned in close proximity to the listener.
The sealed enclosure ensures the cabinet dimensions remain compact, and with a total depth of 97mm, will fit ideally between standard 90mm stud framework – making it a versatile choice for many wall cavities.
Offering low frequency extension to 80Hz, the Scenix will truly excel when paired with a complementary subwoofer. Dual 130mm bass drivers with 25mm vented magnet voice coils provide an exceptionally smooth response with low distortion, while the high frequency drive unit features a 26mm dual concentric diaphragm and wave-guide centre plug to ensure controlled directivity and a smooth, revealing upper treble.
Heavily braced and critically damped for improved bass extension, the Scenix is finished with a powder coated steel front baffle for easy retrofitting into cabinetry and can be supplied with or without a grille, depending on whether it is placed in full view or behind an acoustically transparent screen.
Installation
Cut-out dimensions: 475mm high x 300mm wide recommended
Specifications
Technical specifications
| Frequency range | 80Hz-40kHz in room response |
|---|---|
| Power handling | 50-150 Watts RMS recommended amplifier power |
| Sensitivity | 91dB for 2.83 volts at 1 metre |
| Impedance | 6 Ohms |
| Configuration | 2-way |
| Enclosure type | Sealed |
| Low frequency drivers | Fibre reinforced polymer basket, 130 mm (5.12 in) (5¼”) doped paper cone driver, 25 mm (0.98 in) (1”) vented magnet voice coil wound on high temperature aluminium former |
| High frequency driver | 26 mm (1.02 in) (1”) dual concentric diaphragm with waveguide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion |
| Crossover point | 2.1kHz |
| Input terminals | Gold plated binding posts |
| Cut-out dimensions | 475 mm (18.70 in) high x 300 mm (11.81 in) wide recommended |
| Dimensions | 470 mm (18.50 in) high x 295 mm (11.61 in) wide x 97 mm (3.82 in) deep cabinet |
| Weight | 10 kg (22.0 lb) each |
535mm high x 360mm wide x 1.6mm thick faceplate
538mm high x 363mm wide x 13mm deep grille
