Krix OWX-55 On-Wall Speaker - Open Box
Krix OWX-55 On-Wall Speaker - Open Box
Sold As Each - RRP $3300
Overview
POWER AND VERSATILITY
The OWX-55 on-wall speaker offers performance and power in a compact design. Much like the OWX-50, the OWX-55 is the perfect choice for those who require high output from a small footprint, but in a taller vertical orientation.
A constant directivity horn and compression driver are housed within the shallow design, while the narrow profile allows additional placement options where a slimmer cabinet or significant angling is required.
With extensive output, dynamic range and consistent dispersion, the OWX-55 can be used as a screen, surround or overhead speaker, offering the benefit of positional flexibility without sacrificing performance.
Using the included bracket, the OWX-55 can be mounted flush against the wall or at adjustable angles up to 68 degrees for optimal sound dispersion.

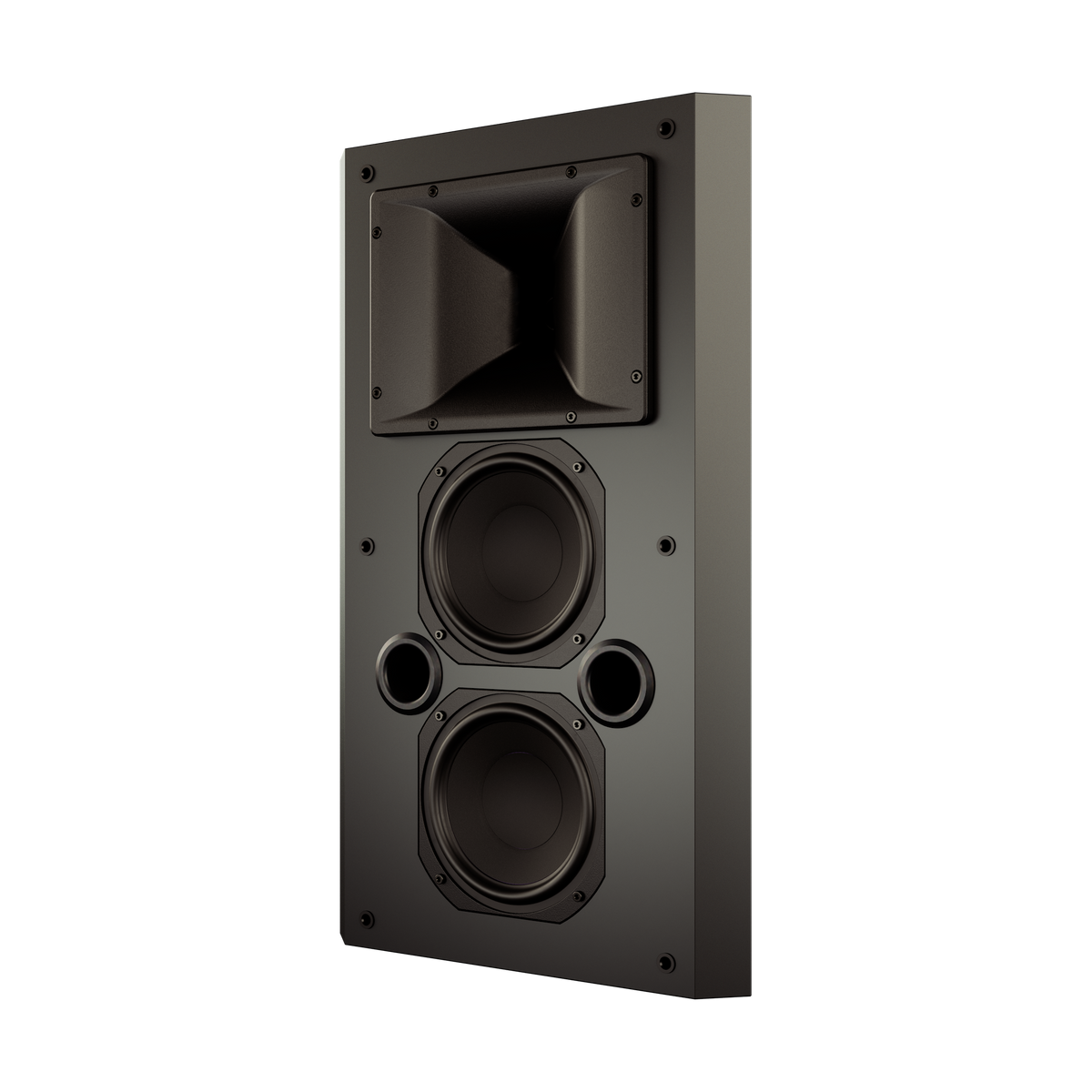

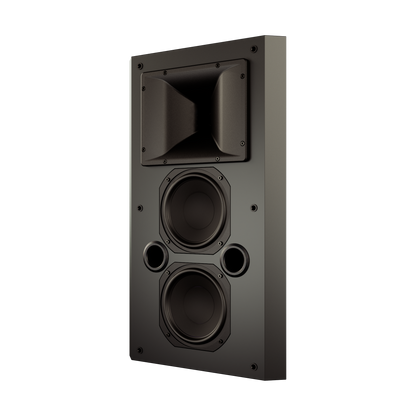

A Krix constant directivity horn and compression driver deliver consistent dispersion and high output.
A sleek, compact and space-saving design, blending aesthetics with functionality.
Krix has proudly engineered and manufactured speakers in Australia since 1974.
Installation
The included bracket supports flush wall mounting or angling up to 68°. The speaker can serve screen, surround or overhead channels, with orientation chosen for the listening area.
Specifications
Technical specifications
| Frequency range | 60 Hz - 20 kHz (in room response) |
|---|---|
| Power handling | 50 - 500 Watts RMS recommended amplifier power |
| Sensitivity | 97 dB (2.83V / 1m) |
| Impedance | 4 Ohms |
| Configuration | 2-way |
| Crossover point | 1.9 kHz |
| Low frequency driver | Dual 165 mm (6.50 in) (6 1/2”) paper cone driver. 50 mm (1.97 in) (2”) voice coil wound on high powered kapton former, with ventilated spider and aluminium flux stabilisation ring for low distortion. |
| High frequency driver | A Krix patented, short throw constant directivity horn, coupled to a compression driver with a 1” throat 1¾-inch voice coil. |
| Enclosure type | Bass reflex, front vented |
| Input terminals | High current terminals featuring 5 mm (0.20 in) hole to accept up to 10 AWG cable |
| DIMENSIONS | 610 mm (24.02 in) high x 361 mm (14.21 in) wide x 181 mm (7.13 in) deep inc bracket |
| Weight | 11 kg (24.3 lb) |
