Overview

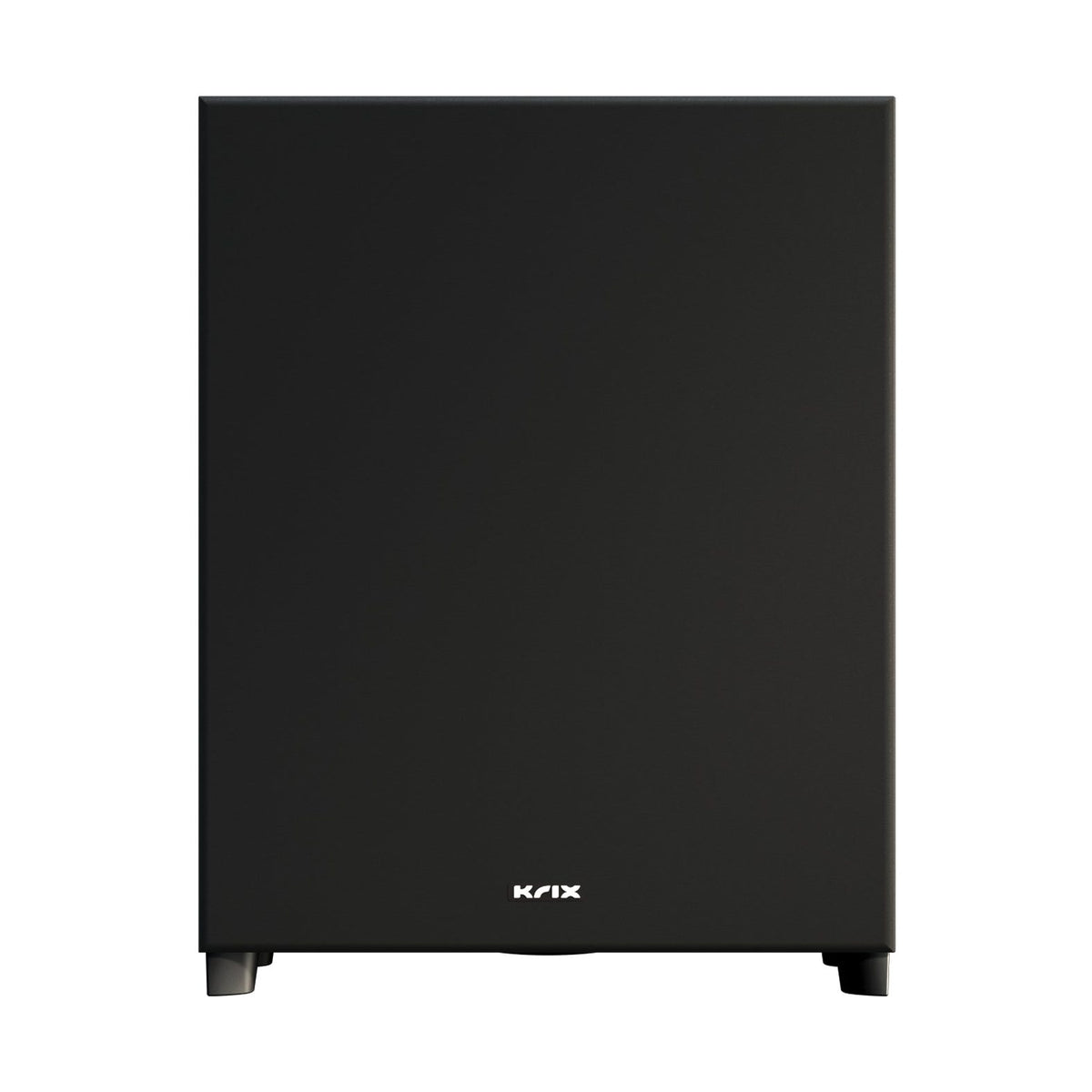

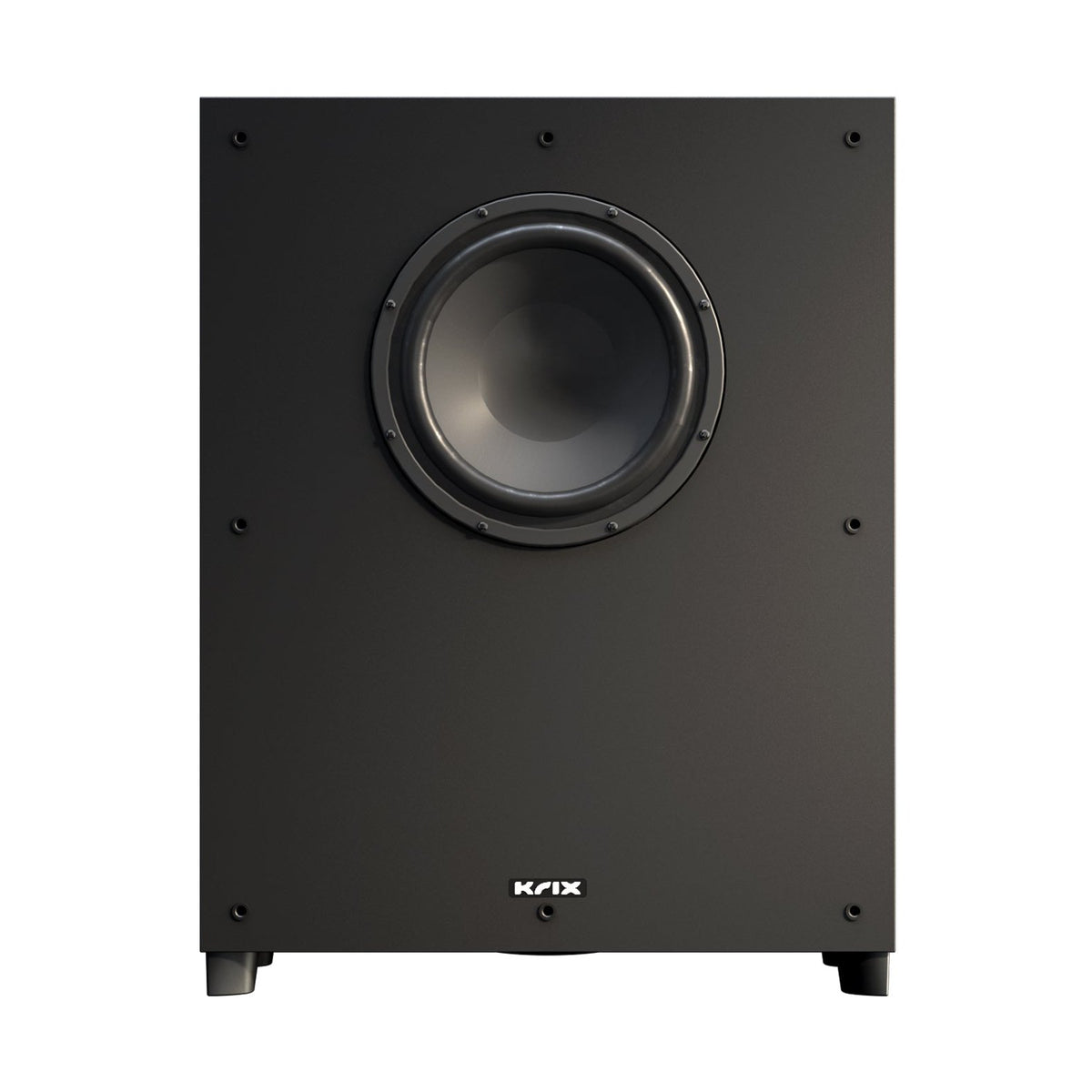

Individual passive subwoofer module for the Krix MX-5 system. External amplification is required; processing recommendations are listed below.
Installation
Includes one passive subwoofer module. LCR speakers and external amplification are separate.
Specifications
Subwoofer module
| Frequency range |
25Hz-200Hz in room response |
| Power handling |
200 – 300 Watts RMS recommended amplifier power |
| Sensitivity |
90dB for 2.83 volts at 1 metre |
| Impedance |
4 Ohms |
| Enclosure type |
Bass reflex, dual down-firing vents |
| Low frequency driver |
Nominal 275mm (11”) diameter doped paper cone driver, 50mm (2”) voice coil wound on high powered Kapton former with vented magnet assembly |
| Input terminals |
High level gold plated spring terminals |
| Dimensions |
700mm high x 540mm wide x 175mm deep (195mm deep with optional grille) |
| Weight |
19 kg (41.88 lb) each |
