Krix MX-30i Modular Speaker System
Krix MX-30i Modular Speaker System
Sold As a System - RRP $31,500
Overview
The MX-30i builds on the legacy of Krix’s award-winning MX-30, delivering even greater low-frequency power and extension. While the left, centre and right speaker modules remain unchanged, the MX-30i features new high-performance subwoofer modules, engineered for true infrasonic reproduction with exceptional control, output and realism.

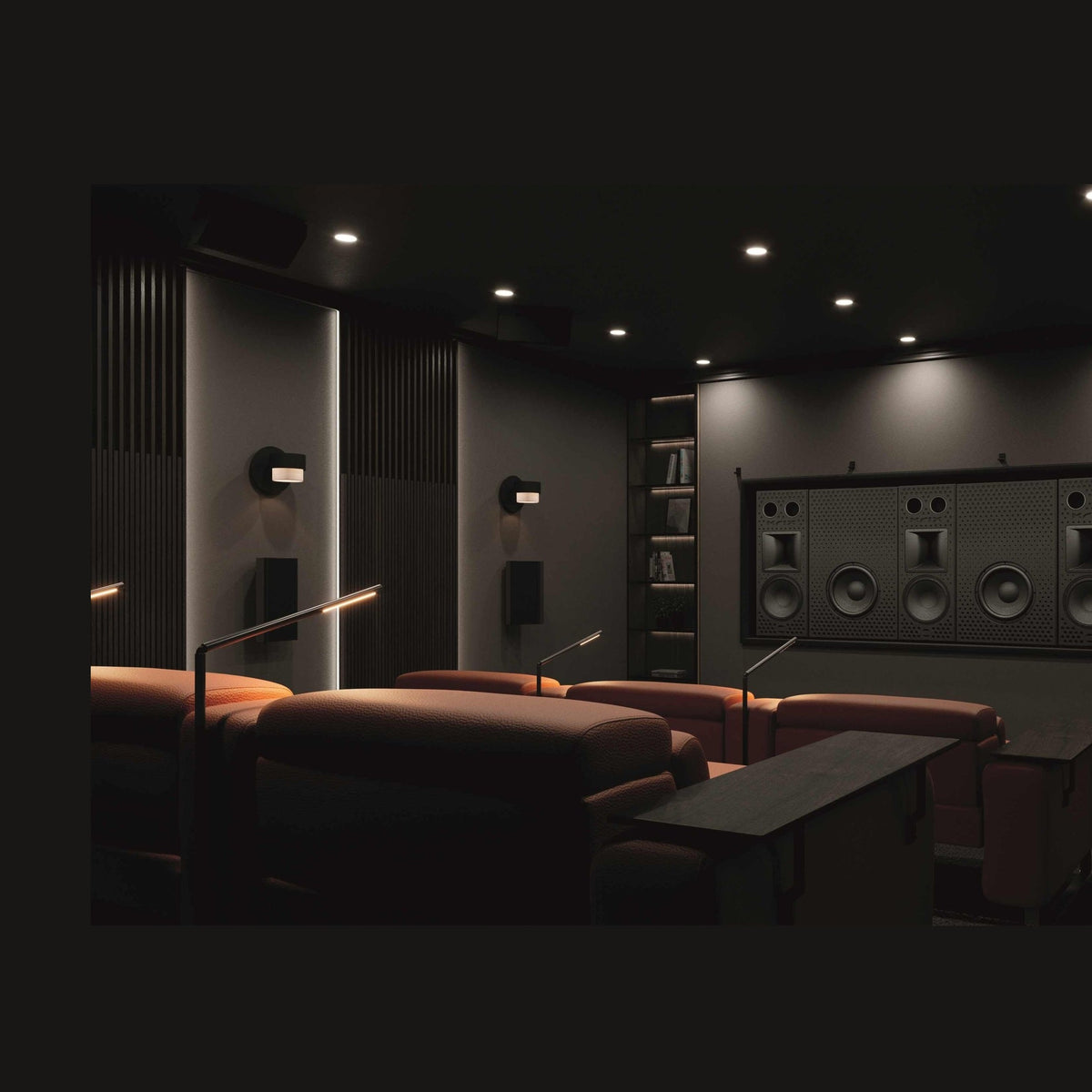

Designed for medium to large dedicated home cinemas with an acoustically transparent screen, the MX-30i will deliver your favourite movie soundtracks with supreme definition and accuracy, right through the picture and into your seat. An experience that goes beyond the audible range.
Infra-bass performance: Reproduces extremely low-frequency sounds to create a tactile audio experience that you can feel.
Patented horn technology: High frequencies are handled by the Krix patented 90 by 40-degree short throw horn, driven by a high frequency compression driver.

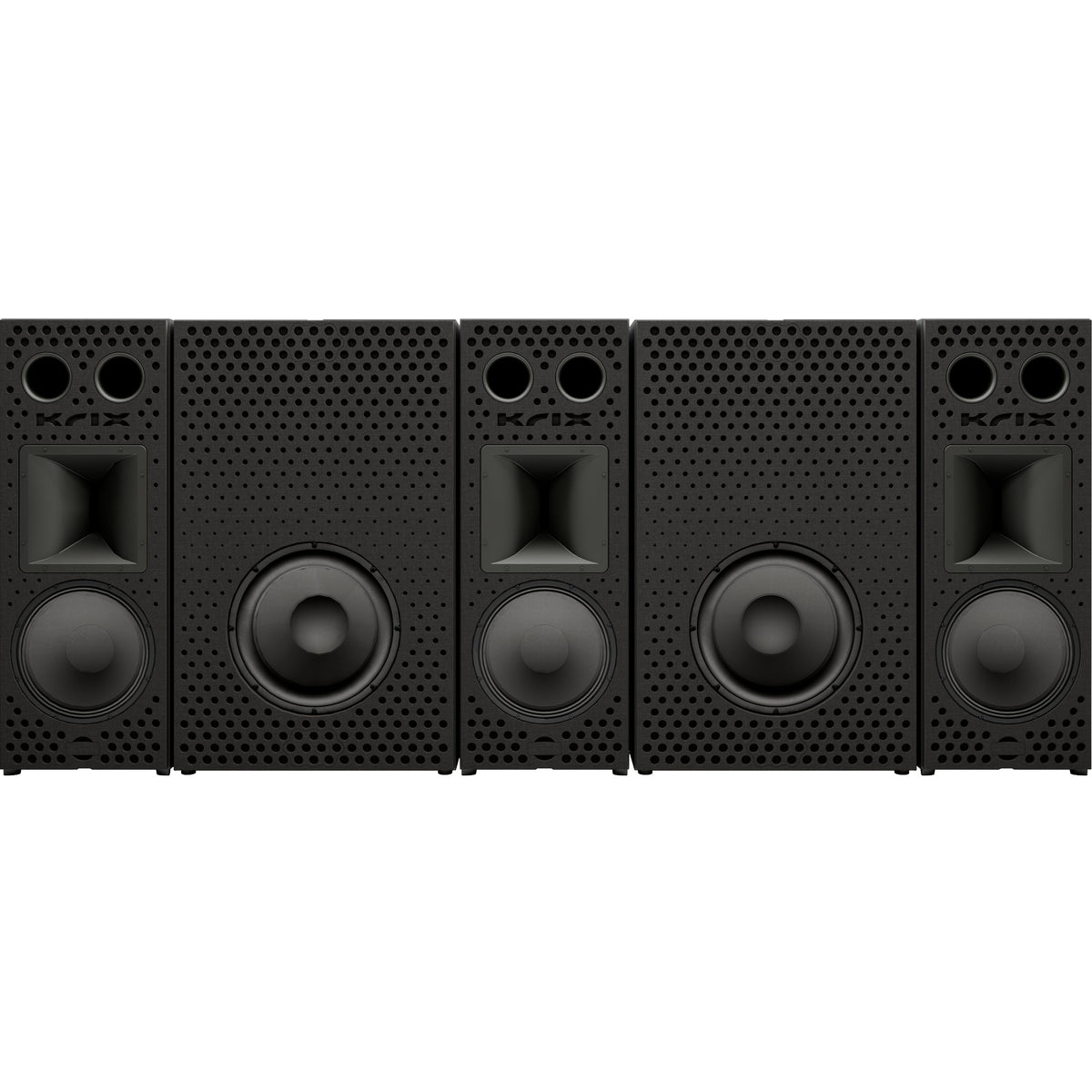

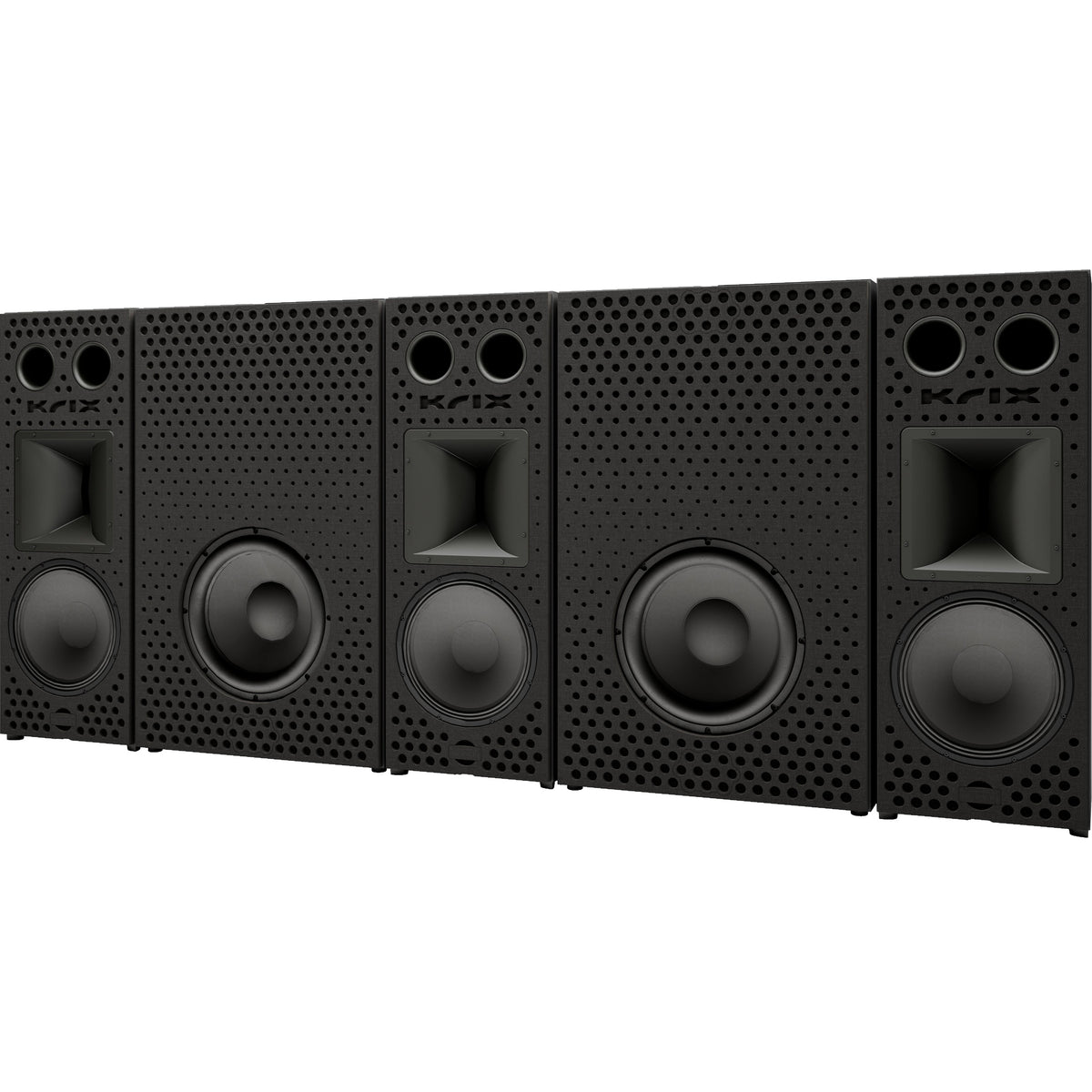

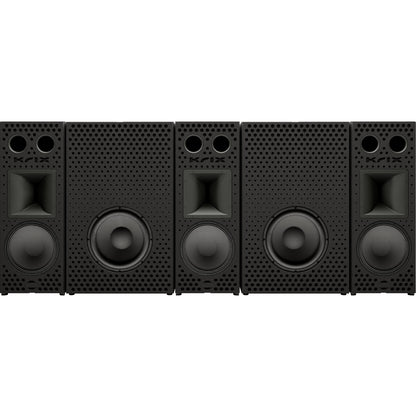

Modular: The MX-30i features five modules, all of which are the same height and slim-line depth for easy installation into one cavity.
Installation
Includes three LCR speaker modules and two passive subwoofer modules. External amplification is required. Check the system dimensions, screen requirements and processing recommendations before installation.
Specifications
SYSTEM RECOMMENDATIONS
| Recommended room depth | 5m – 14m |
|---|---|
| Minimum screen size 16:9 | 135″ (2989mm x 1681mm) |
| Minimum screen size 21:9 | 130″ (3035mm x 1301mm) |
LCR SPEAKER MODULES
| Frequency range | 38Hz-16kHz in room response |
|---|---|
| Power handling | 100 – 700 Watts RMS recommended amplifier power |
| Sensitivity | 98dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Low frequency driver | Single 380 mm (14.96 in) (15’’) high stiffness paper cone driver with 75 mm (2.95 in) (3’’) voice coil of optimal length for increased linear excursion, wound on high temperature apical former and powerful vented magnet assembly designed for low distortion |
| High frequency driver | A Krix patented designed 90º x 40º short throw horn with 25 mm (0.98 in) (1”) throat, 35 mm (1.38 in) (1.4”) compression driver, ferrite magnet, coated titanium diaphragm and polyimide surround |
| Dimensions | 1220 mm (48.03 in) high x 550 mm (21.65 in) wide x 335 mm (13.19 in) deep (3165 mm (124.61 in) wide including subwoofer modules) |
| Weight | 48 kg (105.8 lb) each |
Subwoofer modules
| Frequency range | 10–200 Hz with DSP; −3 dB at 15 Hz; −6 dB at 13 Hz |
|---|---|
| Recommended amplifier | 1500–3000 W into 4 Ω per module; external amplification and approved DSP required |
| Driver | Single 18-inch (460 mm (18.11 in)) driver |
| Impedance | 4 Ω |
| Sensitivity | 100 dB (80 Hz, 2.83 V at 1 m, half space) |
| Dimensions (H × W × D) | 48.03 × 29.53 × 13.19 in (1220 × 750 × 335 mm) |
| Weight | 121.3 lb (55 kg) per module |
