Krix

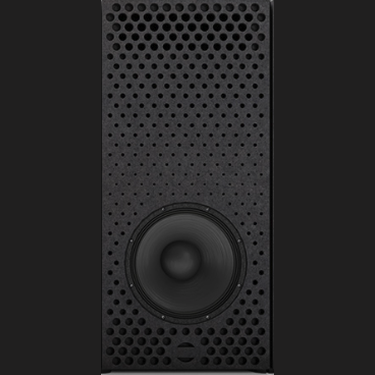

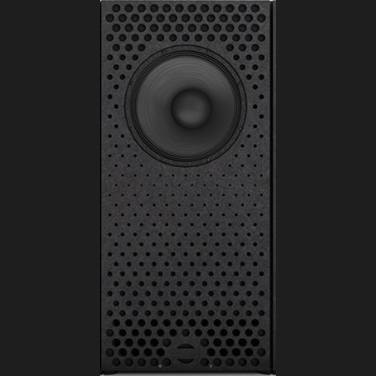

Krix MX-20 Sub Separate
Krix MX-20 Sub Separate
Sold As Each - RRP $4000
Overview
Individual passive subwoofer module for the Krix MX-20 system. Select the required driver orientation when ordering. External amplification is required; processing recommendations are listed below.
Installation
Includes one passive subwoofer module. LCR speakers and external amplification are separate.
Specifications
Subwoofer module
| Frequency range | 25Hz-200Hz in room response |
|---|---|
| Power handling | 200 – 1400 Watts RMS recommended amplifier power |
| Sensitivity | 96dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Enclosure type | Bass reflex, front vented |
| Low frequency driver | Single 380 mm (14.96 in) (15”) paper cone driver. 100 mm (3.94 in) (4”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly |
| Input terminals | High level gold plated spring terminals |
| Dimensions | 1220 mm (48.03 in) high x 550 mm (21.65 in) wide x 295 mm (11.61 in) deep |
| Weight | 45 kg (99.2 lb) each |
