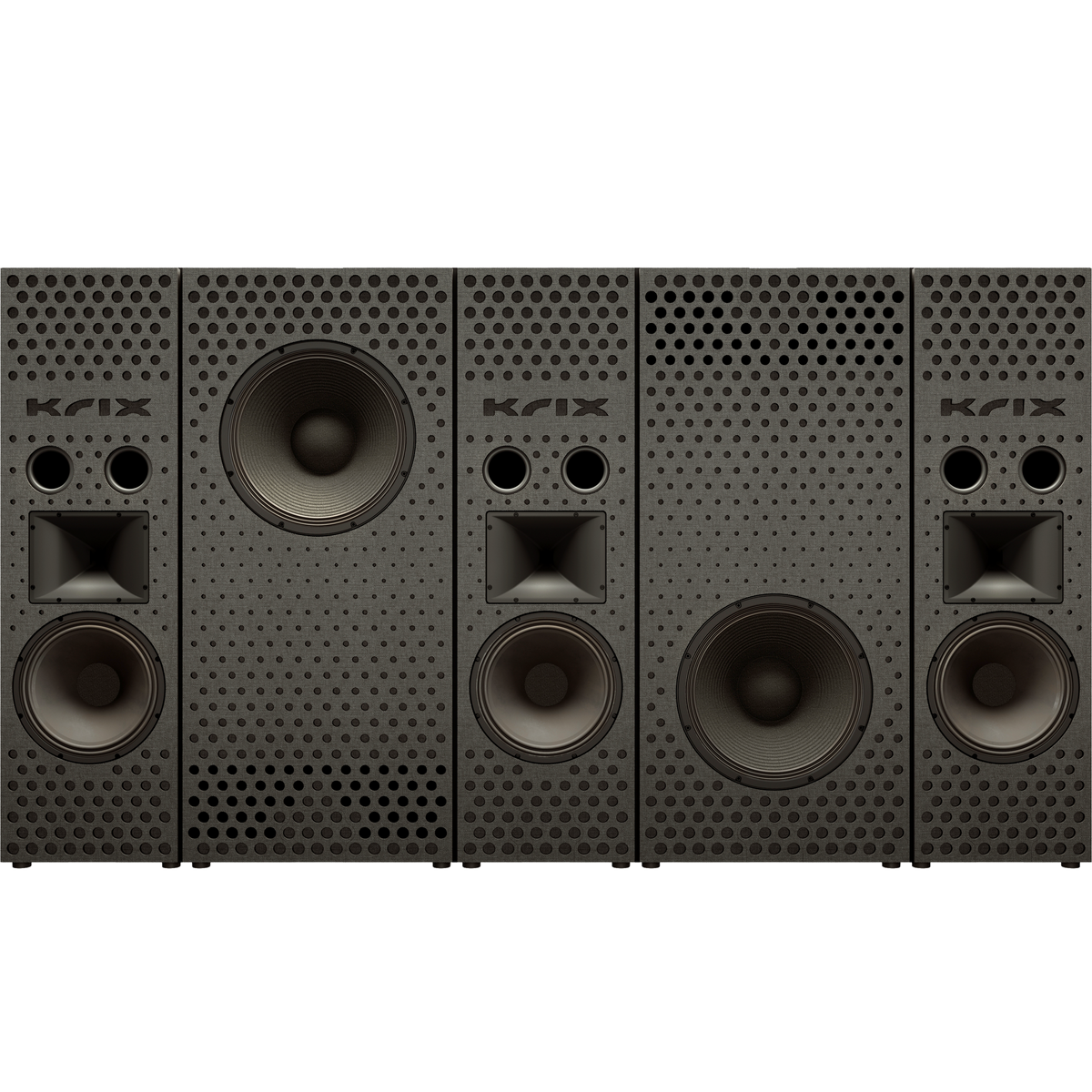

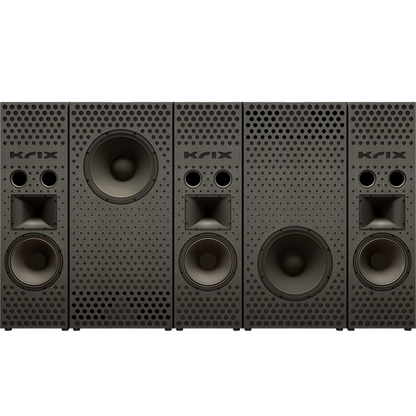

Krix MX-20 Mk2 Modular Speaker System
Krix MX-20 Mk2 Modular Speaker System
Sold As a System - RRP $18,250
Overview

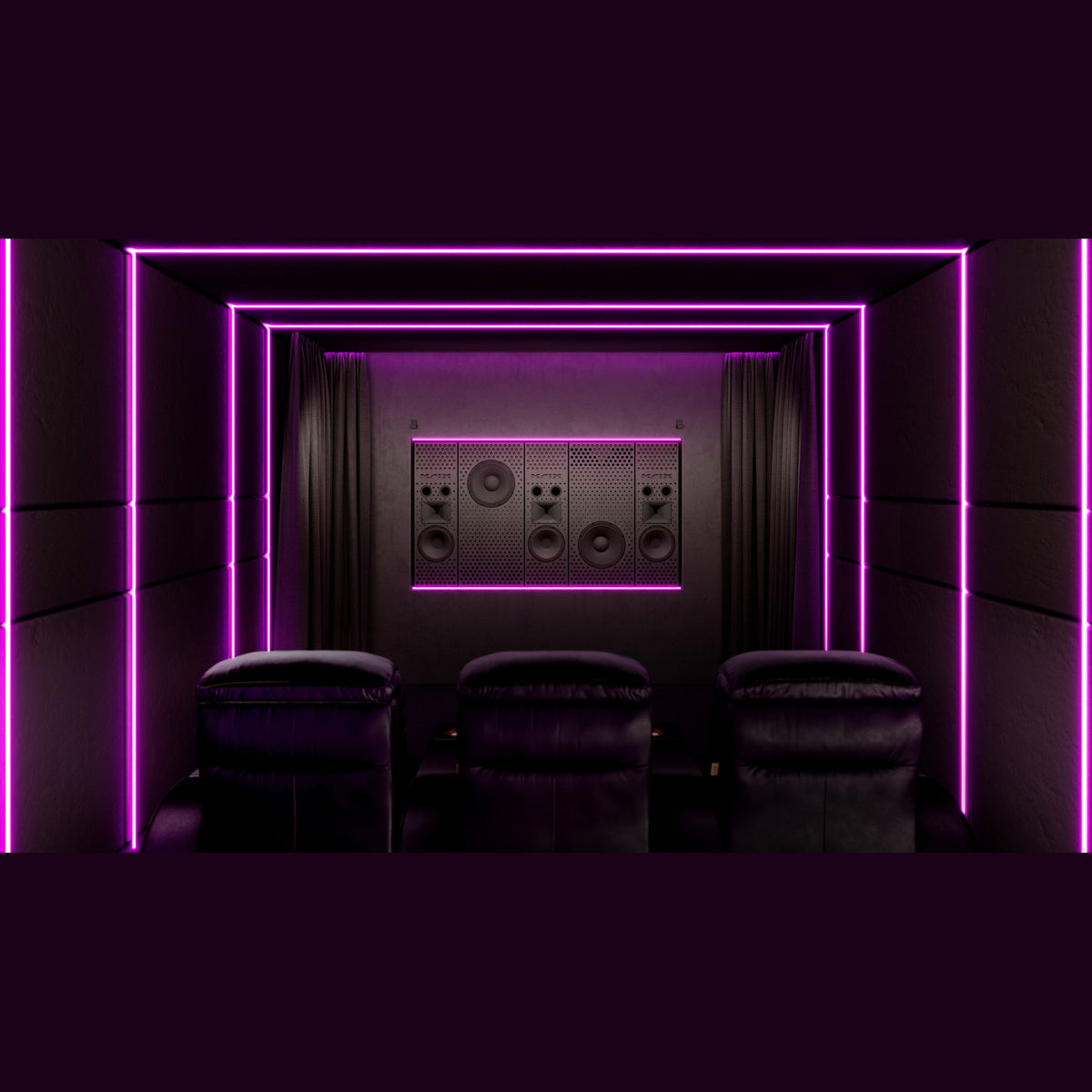

Designed for dedicated home cinemas with an acoustically transparent screen, the MX-20 Mk2 delivers even greater power, clarity and control than its predecessor. A new 12-inch mid-bass driver, high output compression driver and Krix-patented constant-directivity horn, bring improved precision and effortless dynamics to every soundtrack.
Built for rooms four to seven metres long, the five slim, easy-to-install modules feature acoustic-absorbent front baffles, reducing reflections from the screen and enhancing dialogue. With high sensitivity and power handling, and reversible cabinet orientation for the subwoofer modules, the Mk2 is engineered for improved performance and seamless integration.
Reversable sub design: Dual terminals allow the subwoofer cabinets to be oriented up or down, ensuring flexibility for any room layout.
Patented horn technology: A patented constant-directivity horn and one-inch compression driver provide controlled dispersion and precise high-frequency detail.
Modular design: The MX-20 Mk2 features five slim, acoustically-treated modules, all the same height and depth for ease of installation.
Installation
Includes three LCR speaker modules and two passive subwoofer modules. External amplification is required. Check the system dimensions, screen requirements and processing recommendations before installation.
Specifications
SYSTEM RECOMMENDATIONS
| Recommended room depth | 4m – 7m |
|---|---|
| Minimum screen size 16:9 | 105″ (2324mm x 1308mm) |
| Minimum screen size 21:9 | 130″ (3035mm x 1301mm) |
LCR SPEAKER MODULES
| Frequency range | 40Hz-20kHz in room response |
|---|---|
| Power handling | 100 – 700 Watts RMS recommended amplifier power |
| Sensitivity | 95dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Low frequency driver | Single 300 mm (11.81 in) (12”) paper cone driver. 63.5 mm (2.50 in) (2.5”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion |
| High frequency driver | A Krix patented, short throw constant directivity horn, driven by a compression driver with a 25 mm (0.98 in) (1”) throat, featuring a 35 mm (1.38 in) (1.4”) voice coil, coated titanium diaphragm and polyimide surround |
| Dimensions | 1220 mm (48.03 in) high x 365 mm (14.37 in) wide x 295 mm (11.61 in) deep (2210 mm (87.01 in) wide including subwoofer modules) |
| Weight | 31 kg (68.3 lb) each |
SUBWOOFER MODULES
| Frequency range | 25Hz-200Hz in room response |
|---|---|
| Power handling | 200 – 1400 Watts RMS recommended amplifier power |
| Recommended processing | High pass filter: 25Hz 24db / Octave Butterworth Limiter: 1000W (8 Ohms) |
| Sensitivity | 96dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | Bass reflex, front vented, dual terminals so cabinet orientation can be reversed |
| Low frequency driver | Single 380 mm (14.96 in) (15”) paper cone driver with 100 mm (3.94 in) (4”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly |
| Dimensions | 1220 mm (48.03 in) high x 550 mm (21.65 in) wide x 295 mm (11.61 in) deep (2210 mm (87.01 in) wide including LCR modules) |
| Weight | 40 kg (88.2 lb) each |
