Overview

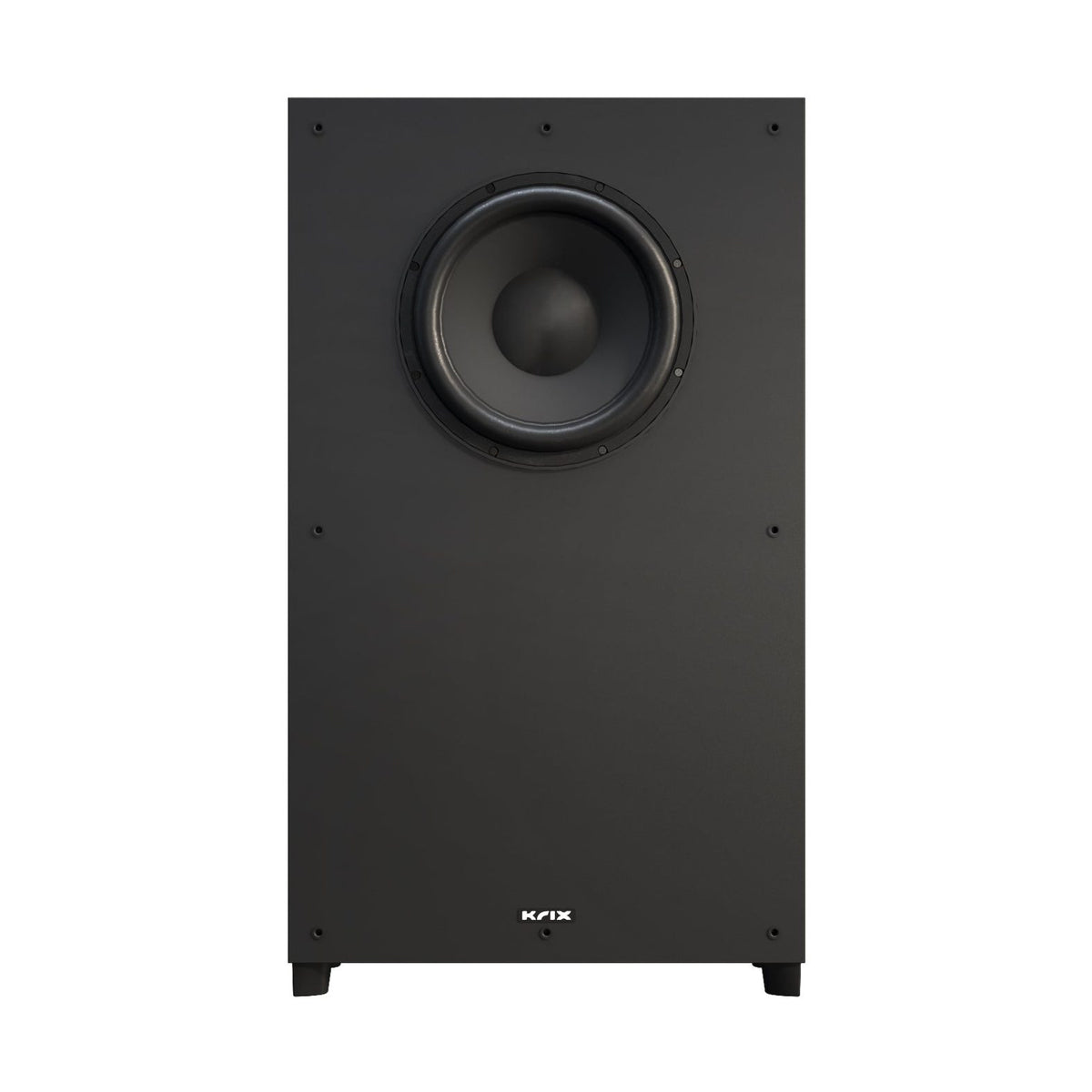

Individual passive subwoofer module for the Krix MX-10 system. External amplification is required; processing recommendations are listed below.
Installation
Includes one passive subwoofer module. LCR speakers and external amplification are separate.
Specifications
Subwoofer module
| Frequency range |
25Hz-200Hz in room response |
| Power handling |
200 – 500 Watts RMS recommended amplifier power |
| Sensitivity |
92dB for 2.83 volts at 1 metre |
| Impedance |
4 Ohms |
| Enclosure type |
Bass reflex, dual down-firing vents |
| Low frequency driver |
Single 305 mm (12”) paper cone driver. 50 mm (2”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly |
| Input terminals |
High level gold plated spring terminals |
| Dimensions |

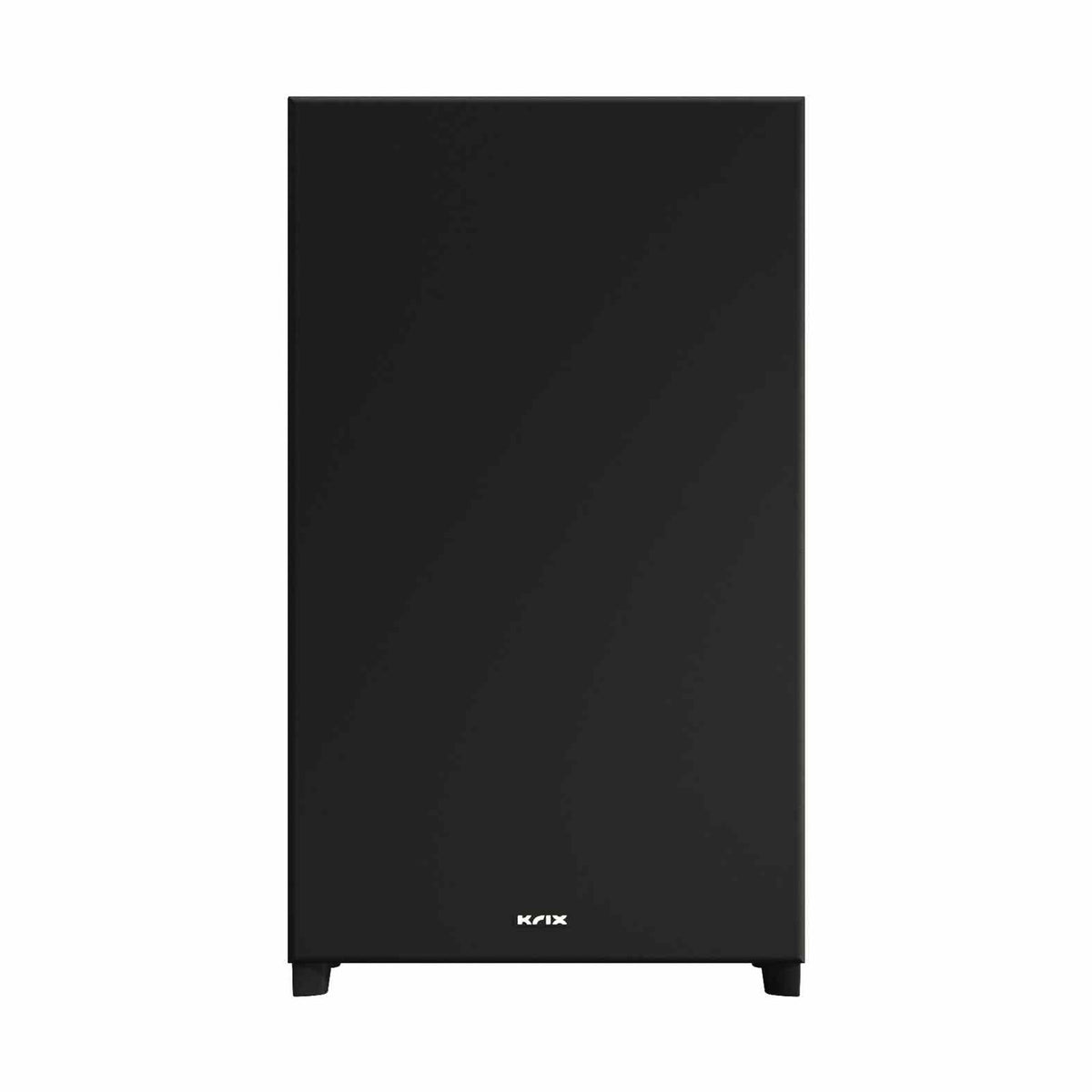

940mm high x 540mm wide x 190mm deep (210 mm deep with optional grille) |
| Weight |
26 kg (57.32 lb) each |
