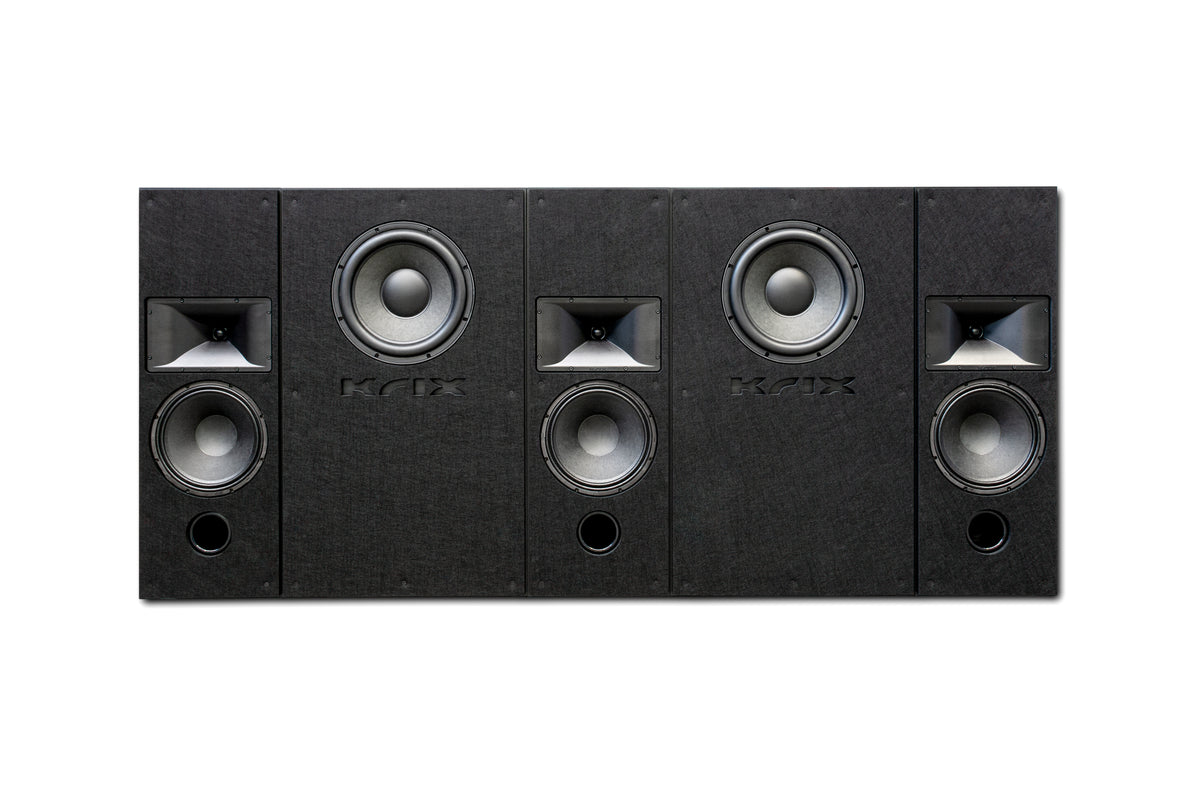

Krix MX-10 Modular Speaker System
Krix MX-10 Modular Speaker System
Sold As a System - RRP $11500
Overview
Designed for medium size dedicated cinema rooms, the MX-10 presents the next level of modular home cinema performance, housing the same Krix waveguide and mid-bass driver of its bigger brother, the MX-20.

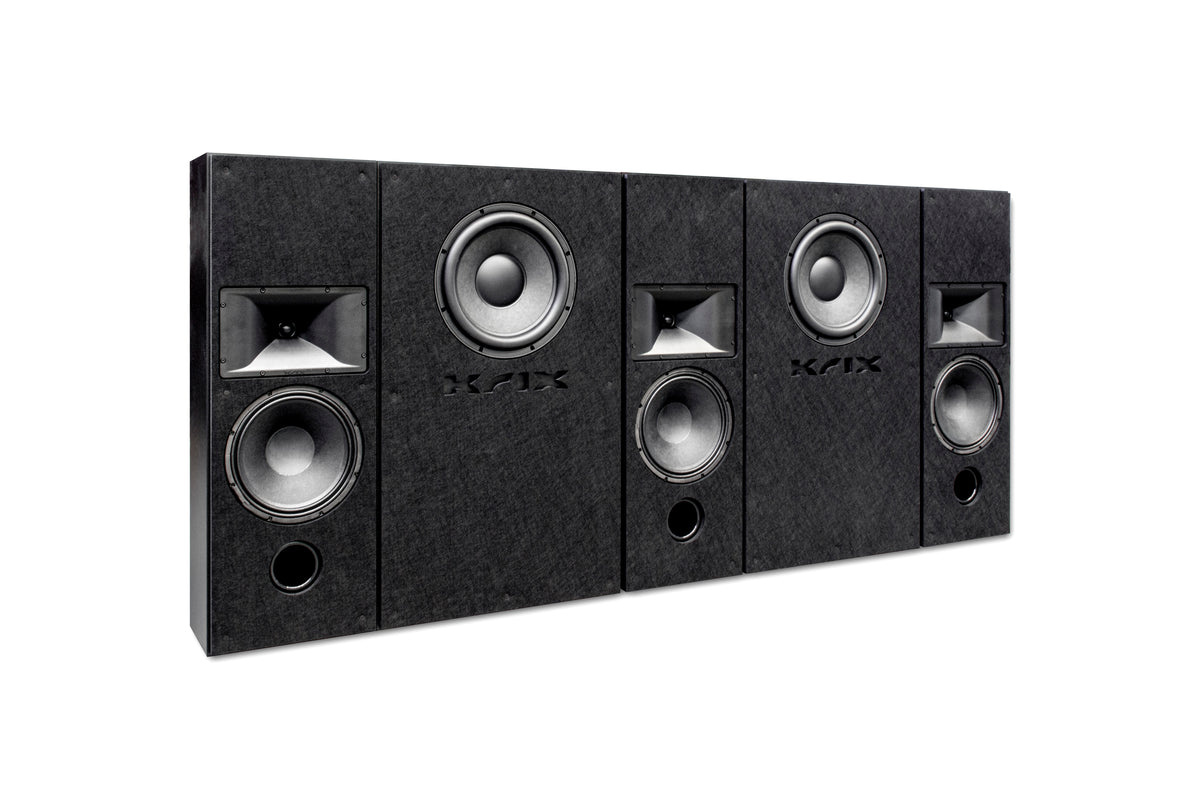

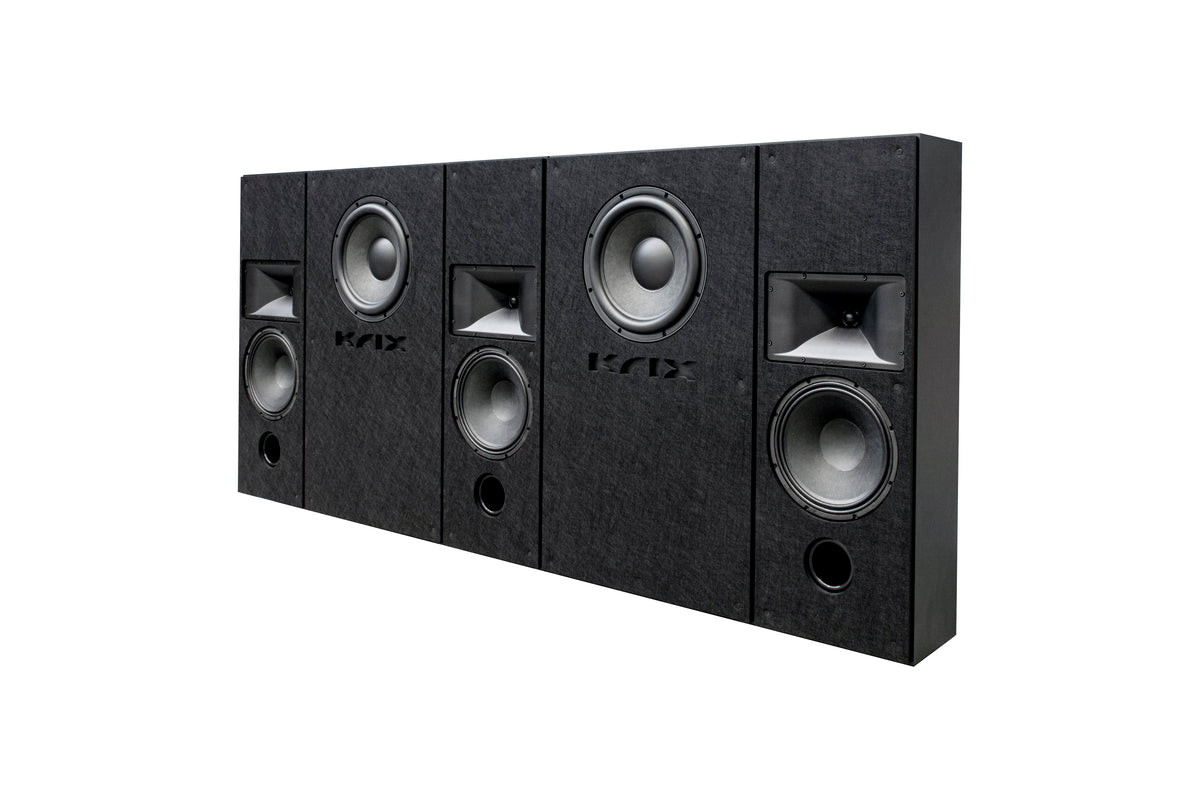

The MX-10 comprises of five modules, all of which are the same height and a slim depth of just 205mm for simple installation into a wall cavity. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.
The main speakers feature a 255mm bass-mid driver which has a 50mm voice coil developed to offer low harmonic distortion, especially in the critical midband.
The high frequency drive unit is a damped, high power, 26mm doped fabric dome tweeter, coupled with a proprietary Krix waveguide, for optimum dispersion over the entire working bandwidth. Each subwoofer contains a large 305mm paper cone driver with a 50mm long throw voice coil developed for high level, low frequency reinforcement.
Installation
Includes three LCR speaker modules and two passive subwoofer modules. External amplification is required. Check the system dimensions, screen requirements and processing recommendations before installation.
Specifications
SYSTEM RECOMMENDATIONS
| Minimum screen size 16:9 | 95″ (2103mm x 1183mm) |
|---|---|
| Minimum screen size 21:9 | 100″ (2335mm x 1001mm) |
LCR SPEAKER MODULES
| Frequency range | 40Hz-20kHz in room response |
|---|---|
| Power handling | 100 – 500 Watts RMS recommended amplifier power |
| Sensitivity | 97dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure type | Bass reflex, front vented |
| Low frequency driver | Single 255 mm (10.04 in) (10”) paper cone driver. 50 mm (1.97 in) (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion |
| High frequency driver | 26 mm (1.02 in) (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide |
| Input terminals | Nikel plated terminals featuring a 5 mm (0.20 in) hole to accept up to 10AWG cable |
| Dimensions | 940 mm (37.01 in) high x 315 mm (12.40 in) wide x 205 mm (8.07 in) deep (2040 mm (80.31 in) wide including subwoofer modules) |
| Weight | 15 kg (33.1 lb) each |
SUBWOOFER MODULES
| Frequency range | 25Hz-200Hz in room response |
|---|---|
| Power handling | 200 – 500* Watts RMS recommended amplifier power * The use of a power amplifier with high pass filter and soft limiter function is strongly recommended on MX subwoofers. |
| Recommended processing | High pass filter: 30Hz 24dB / Octave Butterworth Limiter: 500W (4 Ohms) |
| Sensitivity | 92dB for 2.83 volts at 1 metre |
| Impedance | 4 Ohms |
| Enclosure type | Bass reflex, down-firing vents |
| Low frequency driver | Nominal 305 mm (12.01 in) (12”) diameter paper cone driver with 50 mm (1.97 in) (2”) long throw voice coil developed for high level, low frequency reinforcement |
| Input terminals | Nickel plated spring terminals featuring a 5 mm (0.20 in) hole to accept up to 10AWG cable |
| Dimensions | 940 mm (37.01 in) high x 540 mm (21.26 in) wide x 205 mm (8.07 in) deep (2025 mm (79.72 in) wide including LCR modules) |
| Weight | 26 kg (57.3 lb) each |
