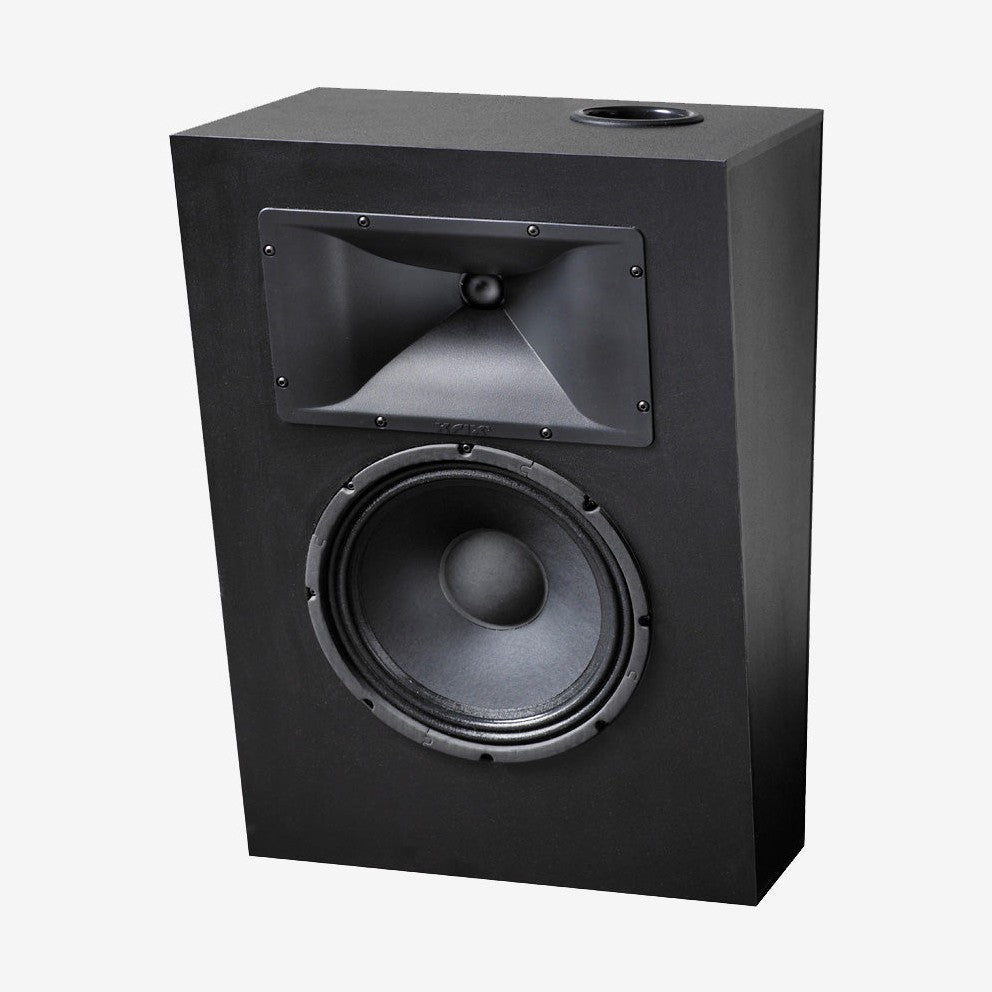

Krix Megaphonix On-Wall Speaker
Krix Megaphonix On-Wall Speaker
Sold As Pair - RRP $3250
Overview
Designed specifically for on-wall use in dedicated home cinemas, the Megaphonix uses high power handling and high sensitivity drivers to deliver all the impact and dynamics you need for the ultimate cinematic effect.
The 255mm bass driver has a 50mm voice coil and has been developed to offer low harmonic distortion, especially in the critical midband. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response.
The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter, and is coupled with Krix’s proprietary waveguide to provide consistently-maintained optimum dispersion of 90 degrees horizontal and 40 degrees vertical over the entire bandwidth. The combined high frequency response is exceptionally smooth and well controlled – a new benchmark in loudspeaker reproduction.
Designed with a 15 degree angled front baffle, the Megaphonix is ideal for wall mounting for rear or side surrounds and provides excellent pattern control and audio coverage to all listening positions. The enclosures are braced and critically damped to improve bass extension, and come with a black material grille and rear key hook mounts for easy installation.
The Megaphonix is the on-wall member of a five-speaker family, allowing you to combine it with main or surround speakers for a connected, clear and smooth sound experience.
Specifications
Technical specifications
| Frequency range | 40Hz-20kHz in room response |
|---|---|
| Power handling | 50-250 Watts RMS recommended amplifier power |
| Sensitivity | 95dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure type | Bass reflex, top vented |
| Low frequency driver | Single 255 mm (10.04 in) (10”) paper cone driver. 50 mm (1.97 in) (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion |
| High frequency driver | 26 mm (1.02 in) (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide |
| Crossover point | 1.8kHz |
| Input terminals | Nickel plated spring terminals featuring a 5 mm (0.20 in) hole to accept up to 10AWG cable |
| Dimensions | 560 mm (22.05 in) high x 390 mm (15.35 in) wide x 321 mm (12.64 in) deep at the top (171 mm (6.73 in) deep at the bottom) |
| Weight | 15 kg (33.1 lb) each |
