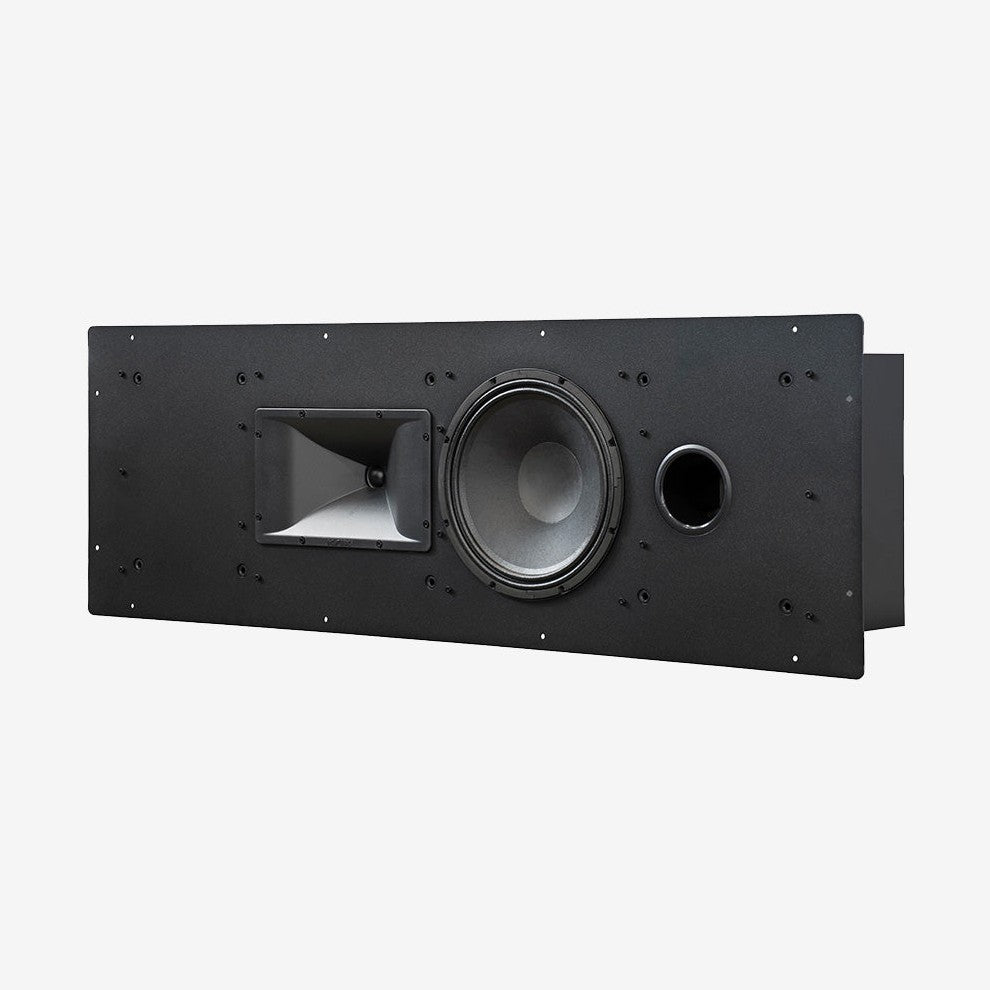

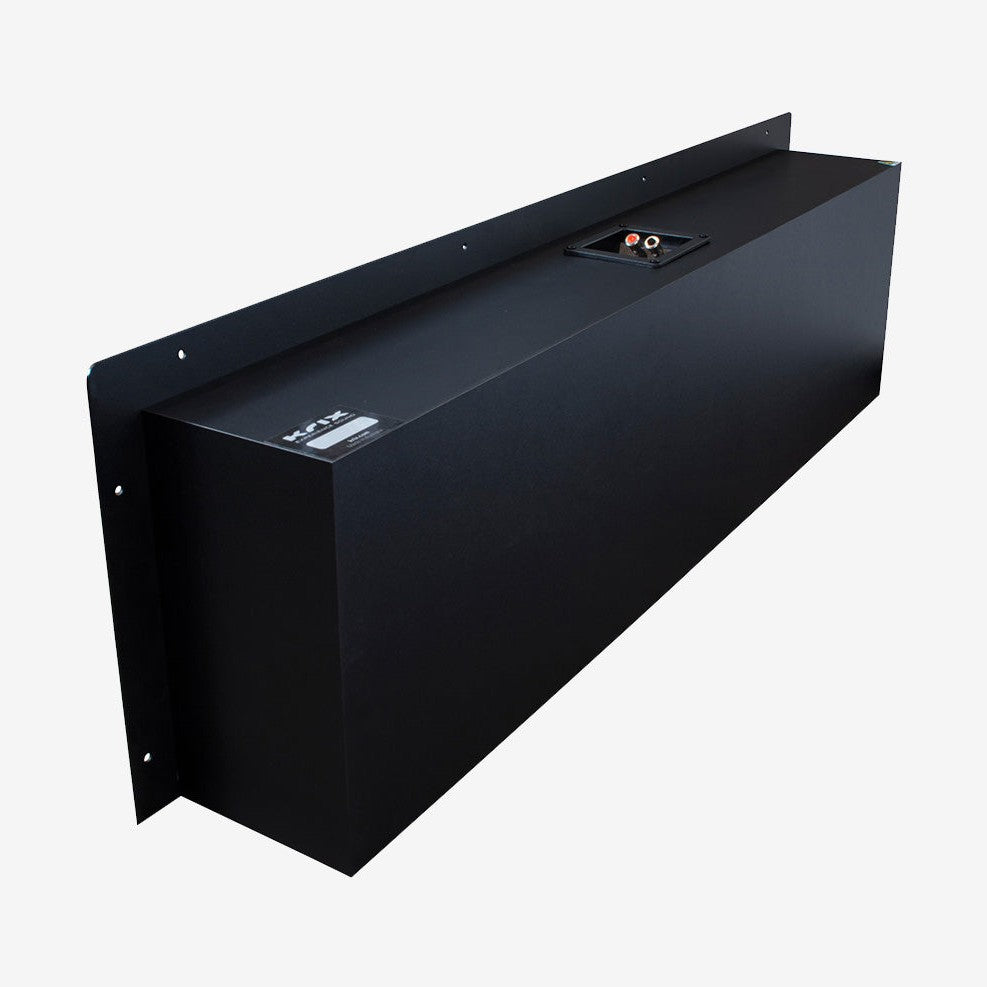

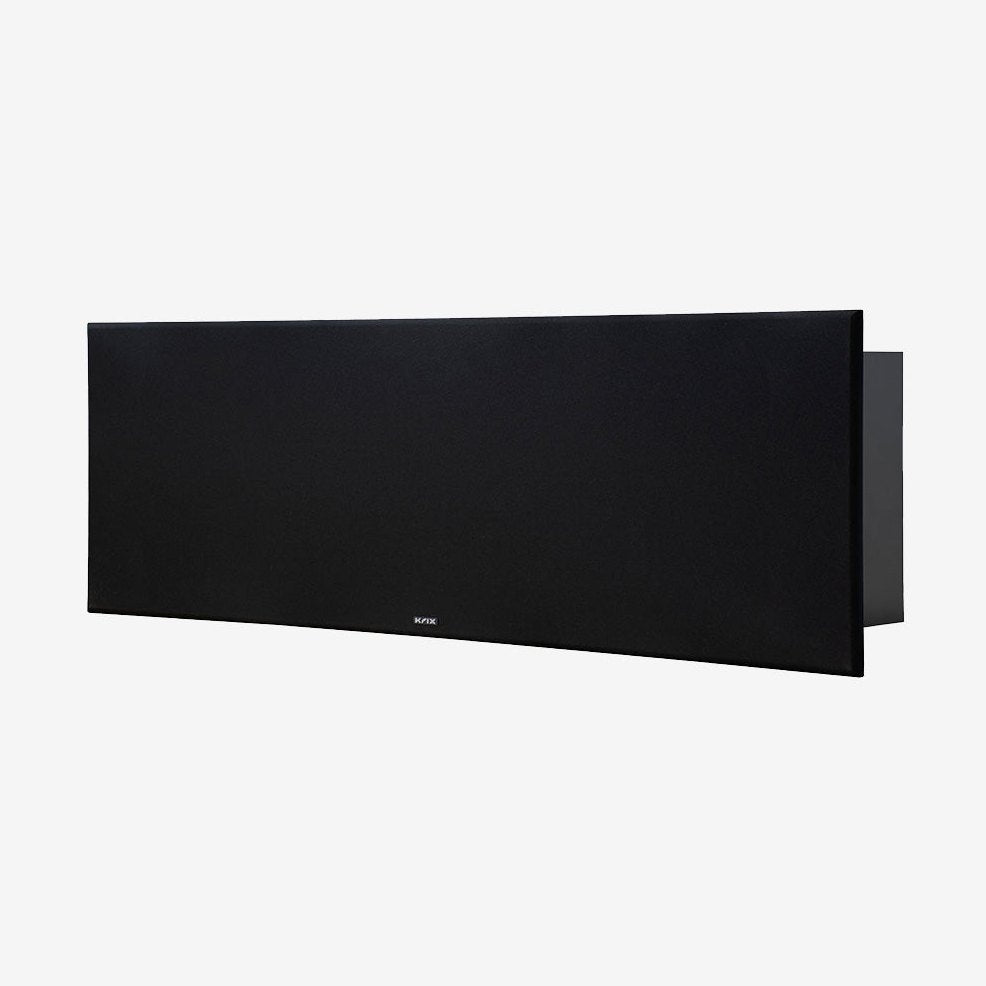

Krix Megaphonix Center In-Wall Speaker
Krix Megaphonix Center In-Wall Speaker
Sold As Each - RRP $2100
Overview
The Megaphonix In-Wall Centre is designed to be installed below televisions or non-acoustically transparent projector screens. Using high power handling and high sensitivity drivers, these speakers will deliver crystal clear dialogue and dynamic effects, for a real home cinema experience.
The 255mm bass driver has a 50mm voice coil and has been developed to offer low harmonic distortion, especially in the critical midband. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response. The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter, and is coupled with Krix’s proprietary waveguide to provide consistently-maintained optimum dispersion of 90 degrees horizontal and 40 degrees vertical over the entire working bandwidth.
The combined high frequency response is exceptionally smooth and well controlled – a new benchmark in loudspeaker reproduction.
Finished with a powder coated steel front baffle for easy installation, the Megaphonix In-Wall Centre is the perfect answer for a concealed, horizontal installation while maintaining exceptional performance.
Installation
Cut-out dimensions: 295mm high x 1045mm wide recommended
Specifications
Technical specifications
| Frequency range | 40Hz-20kHz in room response |
|---|---|
| Power handling | 50-250 Watts RMS recommended amplifier power |
| Sensitivity | 95dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure type | Bass reflex, front vented |
| Low frequency driver | Single 255 mm (10.04 in) (10”) paper cone driver. 50 mm (1.97 in) (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion |
| High frequency driver | 26 mm (1.02 in) (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide |
| Crossover point | 1.8kHz |
| Input terminals | Nickel plated spring terminals featuring a 5 mm (0.20 in) hole to accept up to 10AWG cable |
| Cut-out dimensions | 295 mm (11.61 in) high x 1045 mm (41.14 in) wide recommended |
| Dimensions | 285 mm (11.22 in) high x 1035 mm (40.75 in) wide x 150 mm (5.91 in) deep cabinet367 mm (14.45 in) high x 1117 mm (43.98 in) wide x 2 mm (0.08 in) thick faceplate |
| Weight | 23 kg (50.7 lb) each |
