Krix

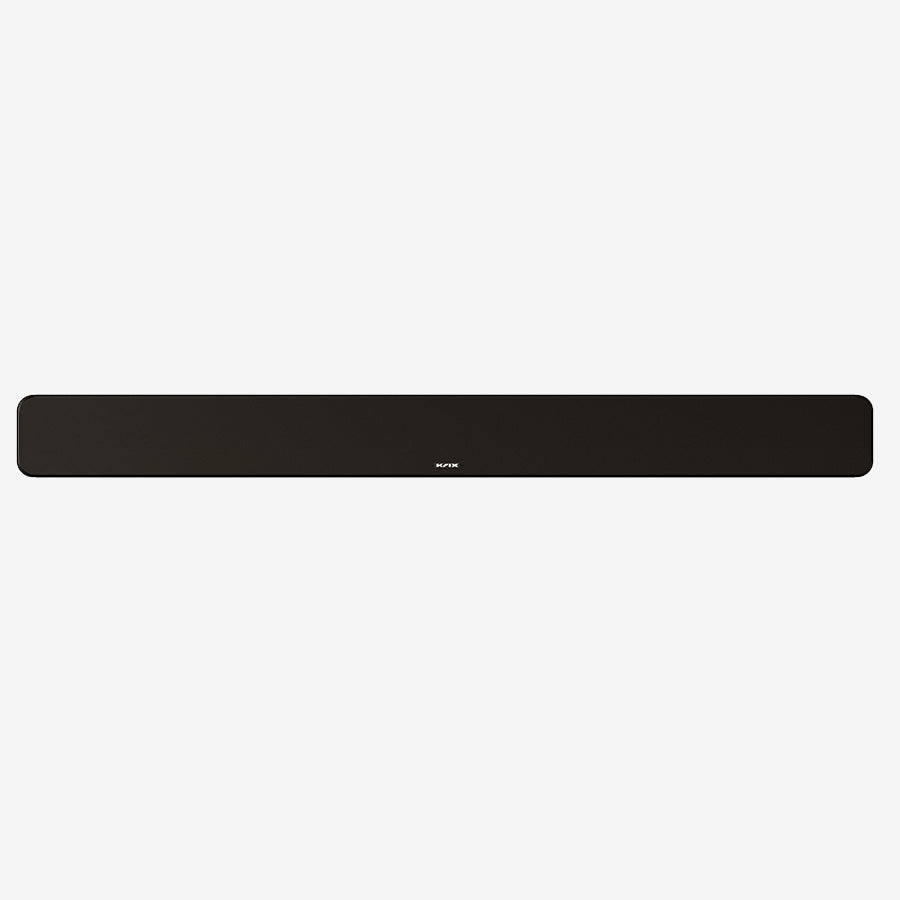

Krix LX-7 On-Wall Passive Soundbar
Krix LX-7 On-Wall Passive Soundbar
Sold As Each - RRP $5500
Overview

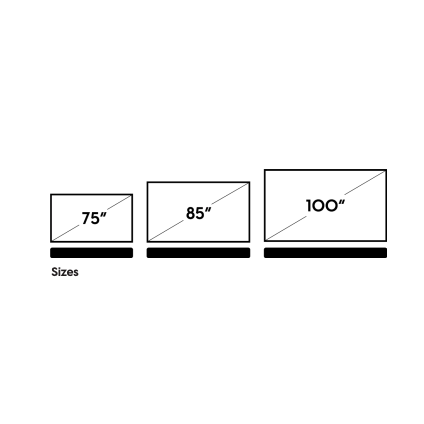

The LX-7 is a stylish, high-performance passive loudspeaker, custom-built in Australia for screen sizes 75 inch and above.
Featuring left, centre and right channels, it can be combined with surround speakers and an AVR/processor to create a genuine, immersive cinema soundscape without the need for virtual or ‘bouncing’ effects. The sleek design requires minimal space above or below your screen. The LX-7 is intended to be combined with a Krix subwoofer(s) to accurately reproduce the lowest frequencies for the very highest level of home cinema performance.
Tilting bracket
Using the included bracket, the LX-7 can be mounted flush against the wall or at adjustable angles up to 15 degrees for optimal sound dispersion.
Tonally matched
The LX-7 is tonally matched to all Krix surround and overhead speakers.
Unparalleled Sound

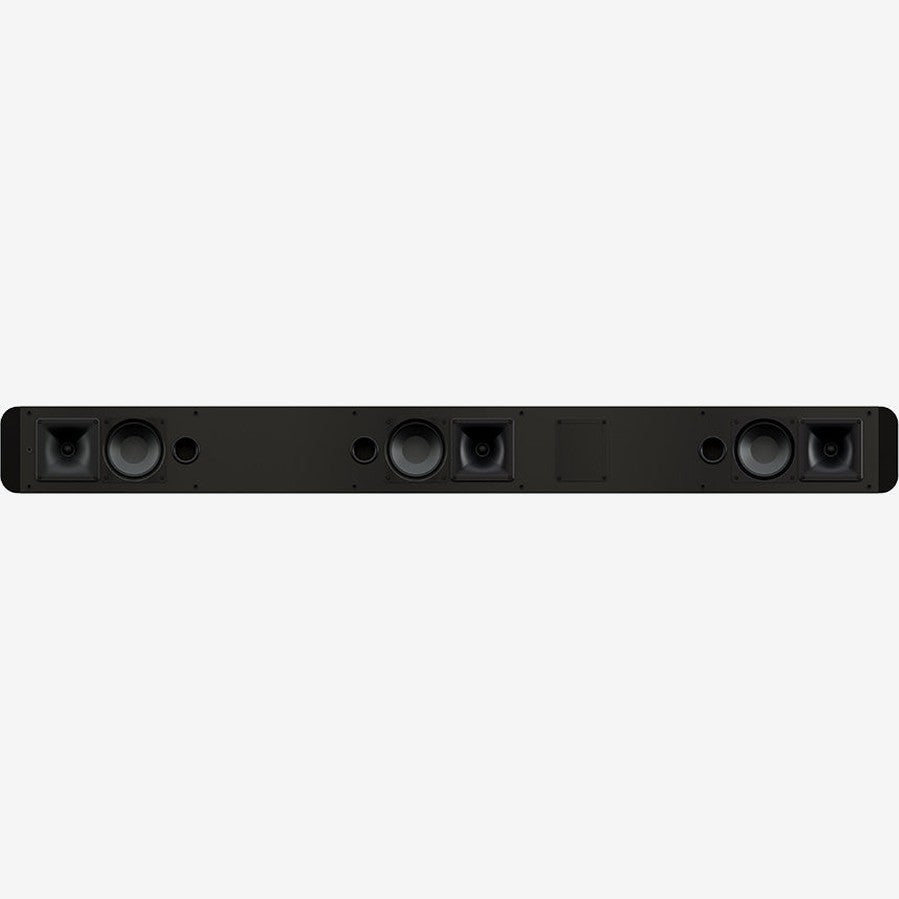

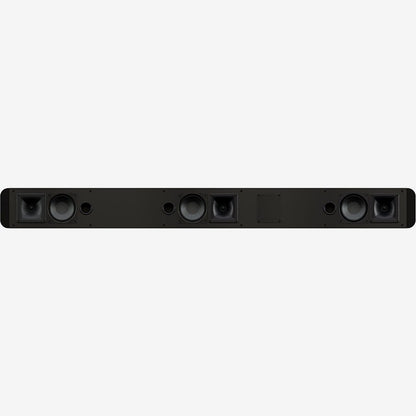

Three 90 x 90 Krix short throw waveguides significantly improve dispersion characteristics and increase efficiency for very high output levels.
Specifications
Technical specifications
| Frequency range | 60Hz-20kHz in room response |
|---|---|
| Power handling | 50-250 Watts RMS recommended amplifier power |
| Sensitivity | 92dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure type | Bass reflex, front vented, 12 mm (0.47 in) braced MDF |
| Low frequency driver | Single 165 mm (6.50 in) (6 1/2”) paper cone. 50 mm (1.97 in) (2”) voice coil wound on high powered kapton former, with ventilated spider and aluminum flux stabilisation ring for low distortion |
| High frequency driver | 26 mm (1.02 in) (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 90 short throw waveguide |
| Crossover point | 1.9kHz |
| Input terminals | High current terminals featuring 5 mm (0.20 in) hole to accept up to 10 AWG cable |
| Dimensions | Various – see specification sheet |
| Weight | Various – see specification sheet |
