Krix IC-50 In-Ceiling Speaker - Open Box

Krix IC-50 In-Ceiling Speaker - Open Box

Login to view price

Sold As Each - RRP $690 w/white grille. $730 w/ black grille

Overview

The discreet IC-50 (Atmospherix AS) performs remarkably for in ceiling stereo music listening and providing high quality background music for multiple rooms.

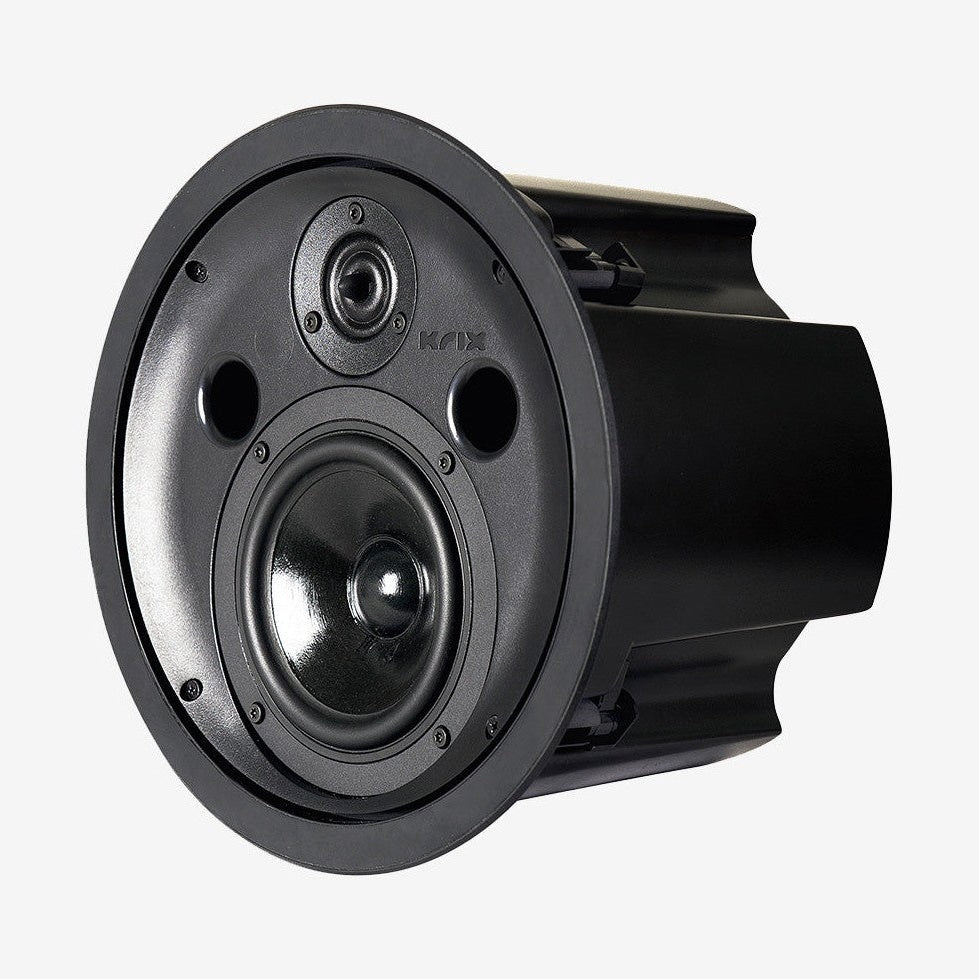

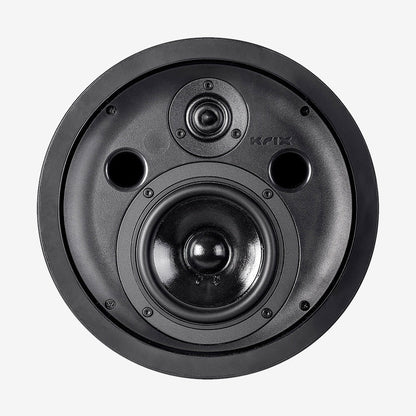

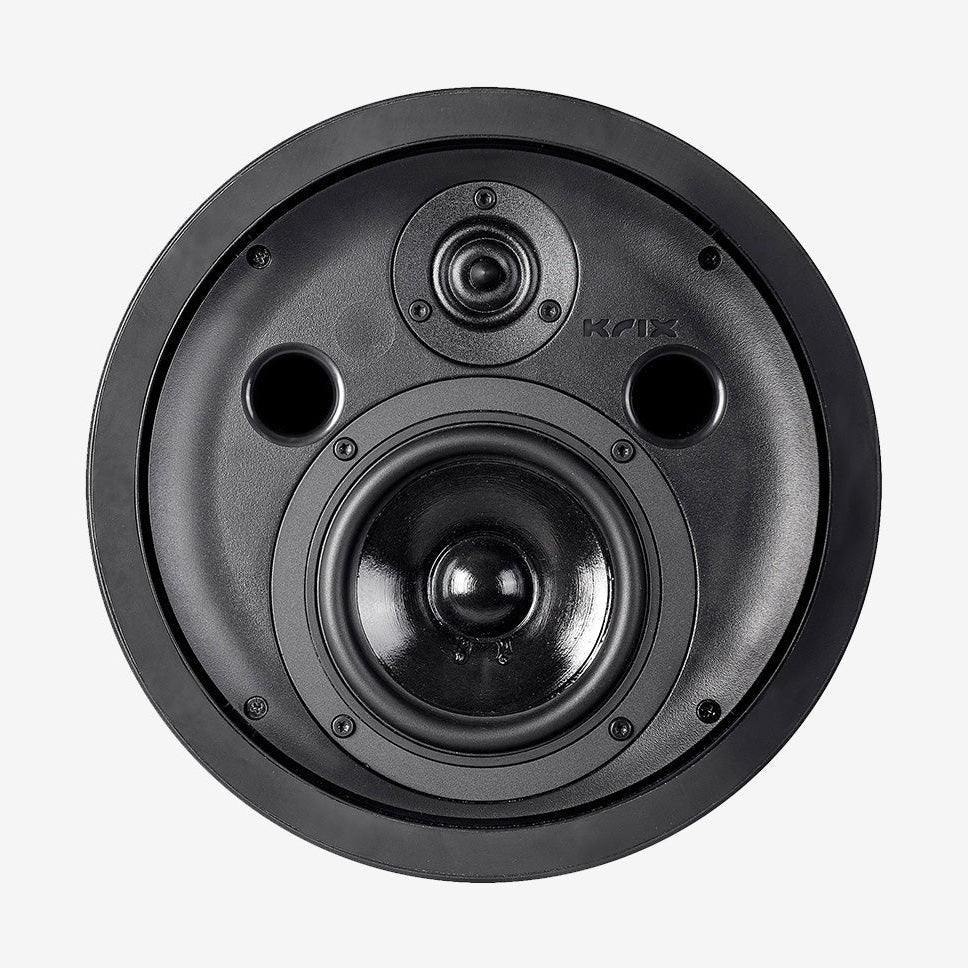

With speaker components mounted directly on the front baffle, the IC-50 delivers a true high fidelity performance, and maintains accurate and controlled bass performance from the discreet in-ceiling mounted enclosure.

Part of the Krix Architectural Series, the IC-50 is tonally balanced to the Krix floorstanding and bookshelf speaker ranges, making it an ideal speaker system for matching with a Krix home theatre. A large 130mm bass driver with large magnet and copper shorting ring delivers bass and midrange clarity, while a 26mm ring radiator provides extended high frequency performance.

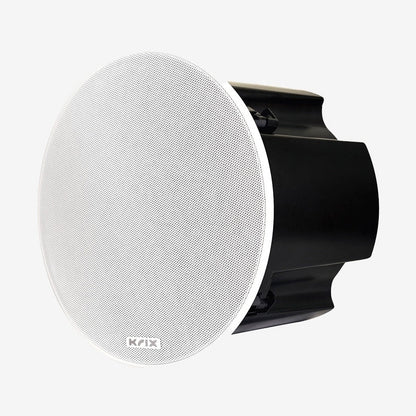

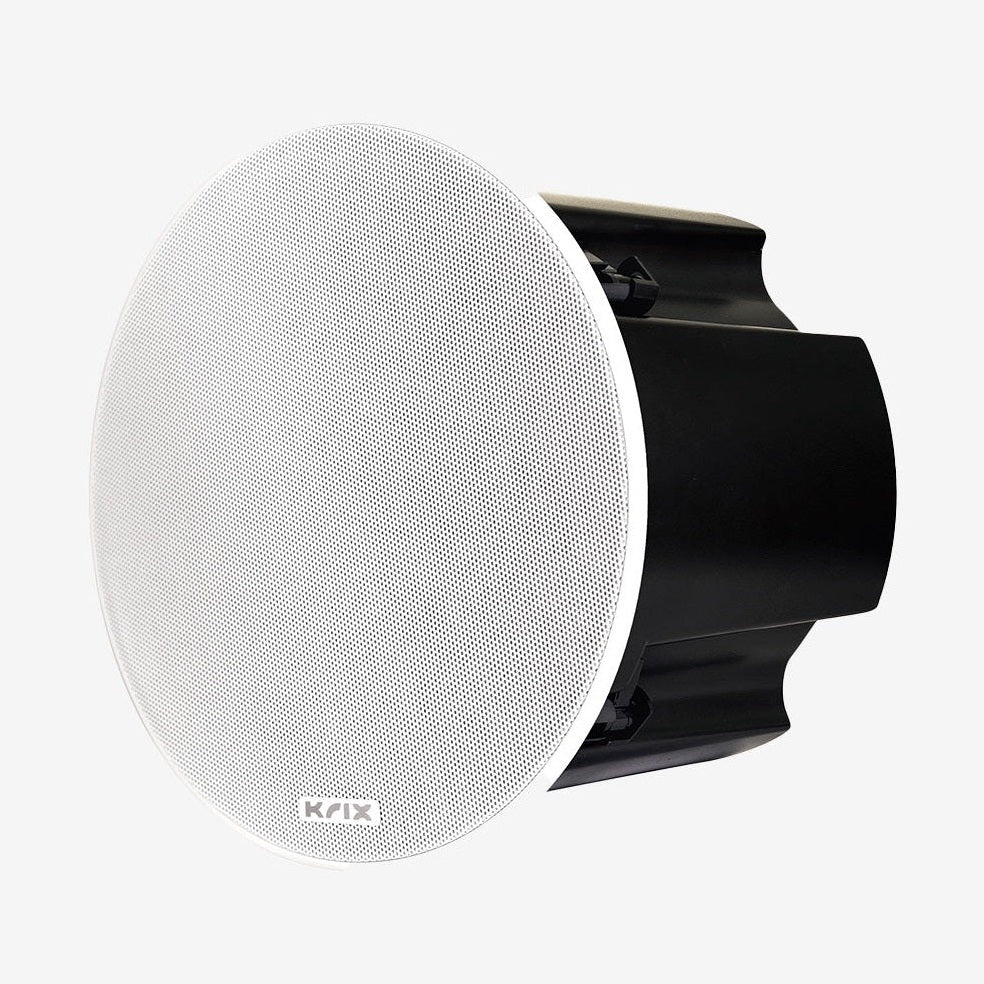

The moving components of the IC-50 are protected from dust and debris through a fully-enclosed back box, designed to optimise the performance from the bass driver, allowing maximum controlled bass and consistency while drastically reducing sound leakage to other rooms. The attractively styled, slim bezel grille is made from rust-resistant stainless steel and snaps into place with magnets, making installation easy. Being paintable, these speakers will involve you in their sound, while disappearing to be heard, but not seen.

Installation

Cut-out diameter: 247mm recommended

Specifications

Technical specifications

Frequency range 45Hz-40kHz in room response
Power handling 20 – 120 Watts RMS recommended amplifier power
Sensitivity 90dB for 2.83 volts at 1 metre
Impedance Nominally 6 Ohms (minimum 3.6 Ohms)
Configuration 2-way
Enclosure type Bass reflex, front vented
Low frequency driver Cast aluminium basket with a nominal 130mm (5″) doped curvilinear paper cone. 30mm (1.2″) vented magnet voice coil wound on high temperature kapton former, with copper shorting ring
High frequency driver 26 mm (1.02 in) (1”) ring radiator tweeter
Input terminals Gold plated spring terminals
Cut-out diameter 247 mm (9.72 in) recommended
Dimensions 295 mm (11.61 in) diameter x 183 mm (7.20 in) mounting depth
Weight 2.5 kg (5.5 lb) each
