Krix

Krix IC-32 In-Ceiling Speaker

Krix IC-32 In-Ceiling Speaker

Login to view price

Sold As Each - RRP $640 w/white grilles, $670 w/black grilles

Overview

Part of the Krix Architectural Series, the IC-32 (Hemispherix A20) can be used for home theatre, stereo listening, or high-quality background music. It features a 20 degree angled baffle to project the sound to your primary listening area, meaning less sound is reflected off walls and other surfaces. Your experience is clearer, there is a more three-dimensional soundstage, better definition for music listening, more articulate dialogue, and more realistic and involving sound effects in movies.

The fully-enclosed back box maximises and controls bass, protects from ceiling debris and drastically reduces sound leakage into adjoining rooms. With speaker components mounted directly to the front baffle of the speaker, the IC-32 delivers a true high fidelity sound in a neat package.

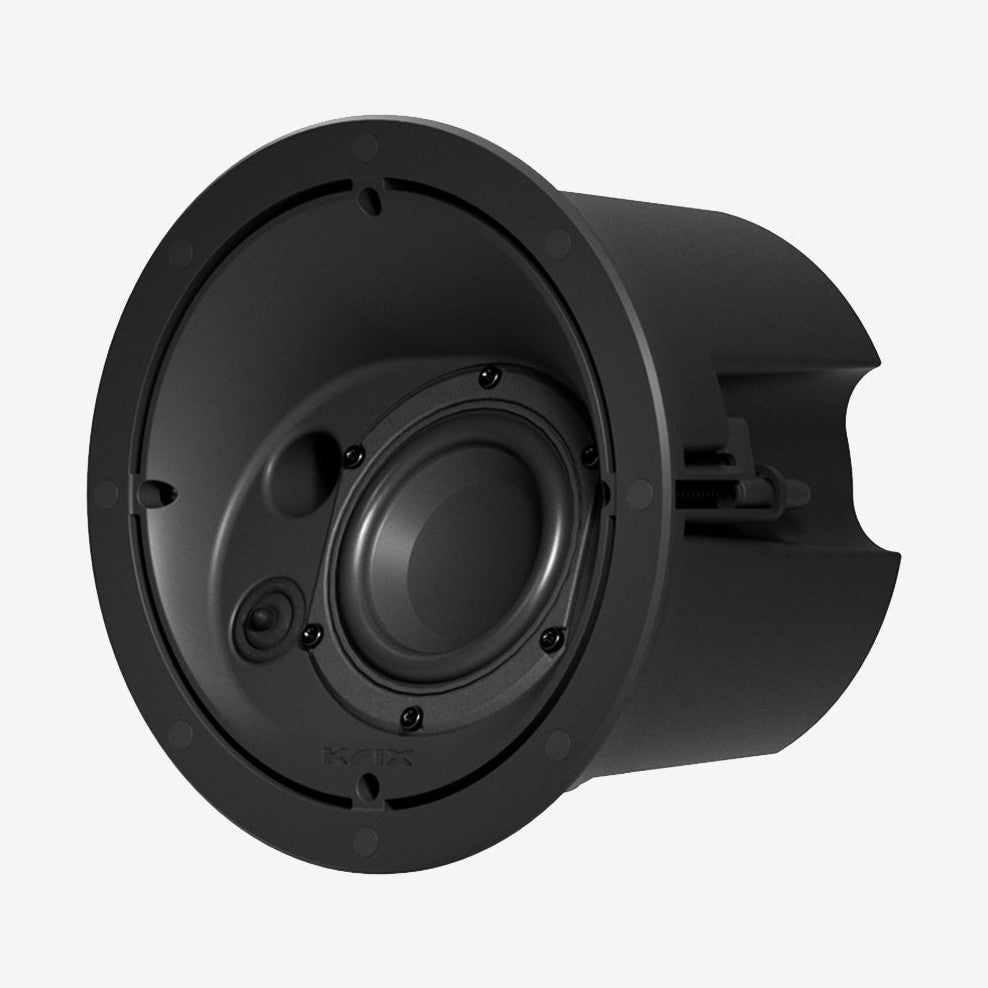

Tonally balanced to the Krix floorstanding and bookshelf range, the IC-32 allows you to enjoy accurate and controlled bass, as well as midrange clarity delivered by a 100mm driver with a large magnet and aluminium shorting ring. Extended high frequency performance is provided by the 26mm ring radiator tweeter.

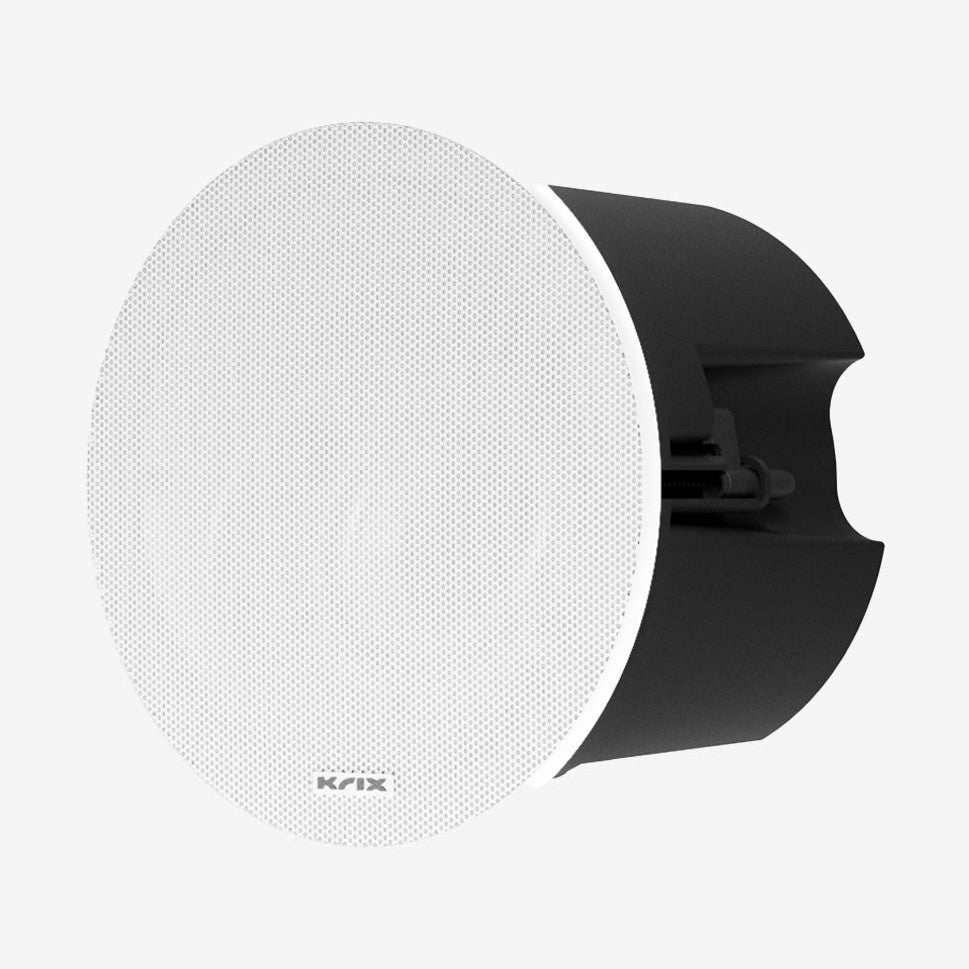

The paintable bezel grille, which is slim and attractively-styled in rust-resistant stainless steel, locks onto magnets at the front of the speaker for easy installation, producing the ultimate sound with magical simplicity.

Installation

Cut-out diameter: 207mm recommended

Specifications

Technical specifications

Frequency range 65Hz-40kHz in room response
Power handling 20 – 100 Watts RMS recommended amplifier power
Sensitivity 86dB for 2.83 volts at 1 metre
Impedance Nominally 6 Ohms (minimum 4.2 Ohms)
Configuration 2-way
Enclosure type Bass reflex, front vented
Low frequency driver Nominal 100 mm (3.94 in) (4”) doped paper cone. 25 mm (0.98 in) (1”) voice coil wound on high temperature Kapton former
High frequency driver 20mm (3/4″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Neodymium magnet
Input terminals Gold plated spring terminals
Cut-out diameter 207 mm (8.15 in) recommended
Dimensions 255 mm (10.04 in) diameter x 157 mm (6.18 in) mounting depth
Weight 2 kg (4.4 lb) each
