Krix

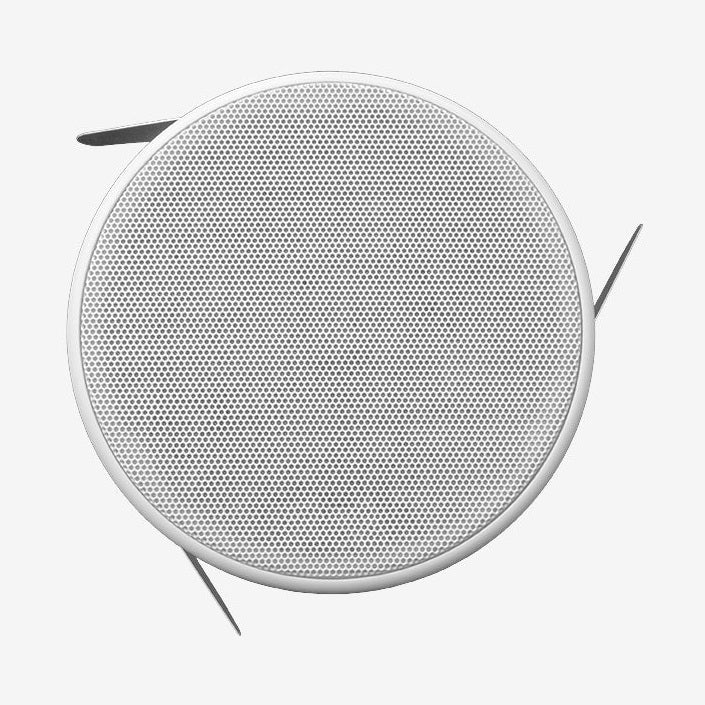

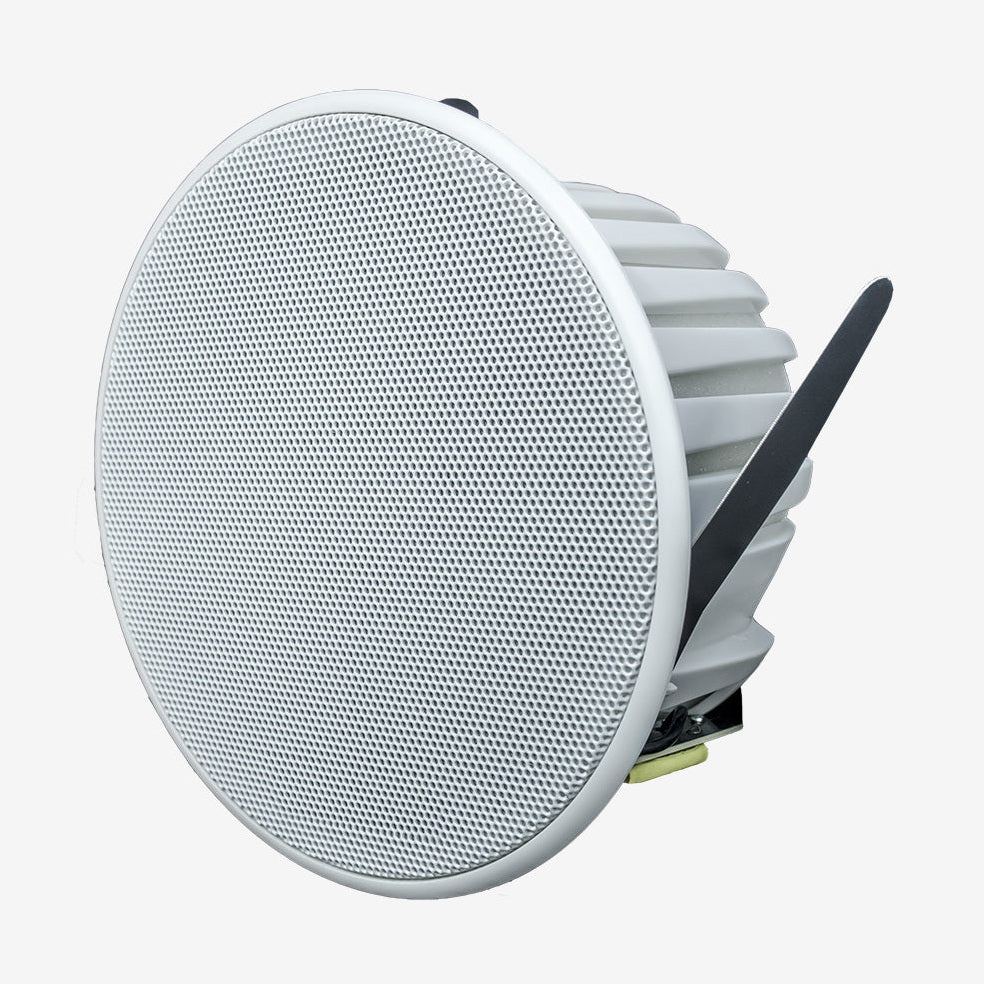

Krix IC-20 In-Ceiling/Outdoor Speaker

Krix IC-20 In-Ceiling/Outdoor Speaker

Login to view price

Sold As Each - RRP $520

Overview

Enjoy music inside and out with the IC-20 (Helix), our most versatile speaker yet. Stream your favourite tracks to your alfresco area while enjoying drinks with friends, or relax to chill-out remixes while indulging in a hot bath.

Featuring weather resistant materials and a rust resistant, stainless steel grille, the semi-enclosed construction measures a minimal 86mm mounting depth, meaning it can fit in places many speakers won’t. While the small depth ensures eaves and shallow roof cavities won’t be a problem, the IC-20 can also be used in entertainment areas like dining or family rooms where background music or surround effects are required.

Delivered by a large 150mm bass driver with oversized magnet, and 20mm dome tweeter, the dual concentric configuration guarantees uniform sound coverage in all directions. Whatever size and type of ceiling cavity or eave, the IC-20s semi-enclosed back box not only ensures consistent and extended bass, it protects against dust and debris.

The ‘twist and lock’ mounting system with fixed grille allows for easy installation. Simply cut out the hole, connect the speaker cables and then twist into place. Complete with a five-year warranty, you can enjoy the music or movies you love, indoors or out, without compromising on sound quality.

Installation

Cut-out diameter: 164mm recommended

Specifications

Technical specifications

Frequency range 45Hz-20kHz in room response
Power handling 10 – 120 Watts RMS recommended amplifier power
Sensitivity 86dB for 2.83 volts at 1 metre
Impedance Nominally 8 Ohms (minimum 6 Ohms)
Configuration Dual concentric 2-way
Enclosure type Semi-enclosed, infinite baffle
Low frequency driver 150 mm (5.91 in) (6”) curvilinear polypropylene driver, 38 mm (1.50 in) (1½”) voice coil wound on high temperature Kapton former
High frequency driver 20 mm (0.79 in) (¾”) dome, coaxially mounted
Input terminals Spring terminals
Cut-out diameter 164 mm (6.46 in) recommended
Ceiling material thickness 3-18 mm (0.71 in) recommended
Dimensions 180 mm (7.09 in) diameter x 86 mm (3.39 in) mounting depth
Weight 2 kg (4.4 lb) each
