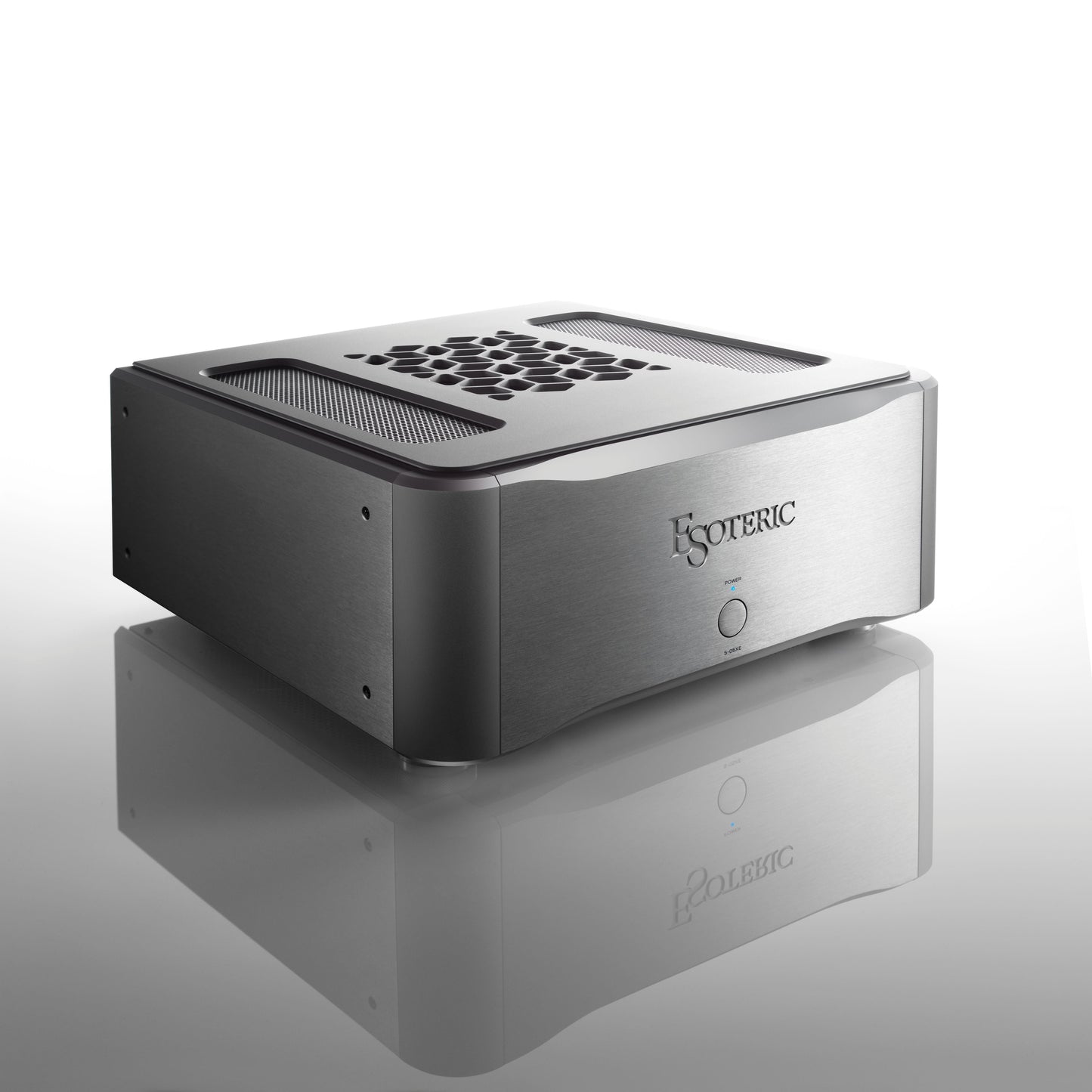

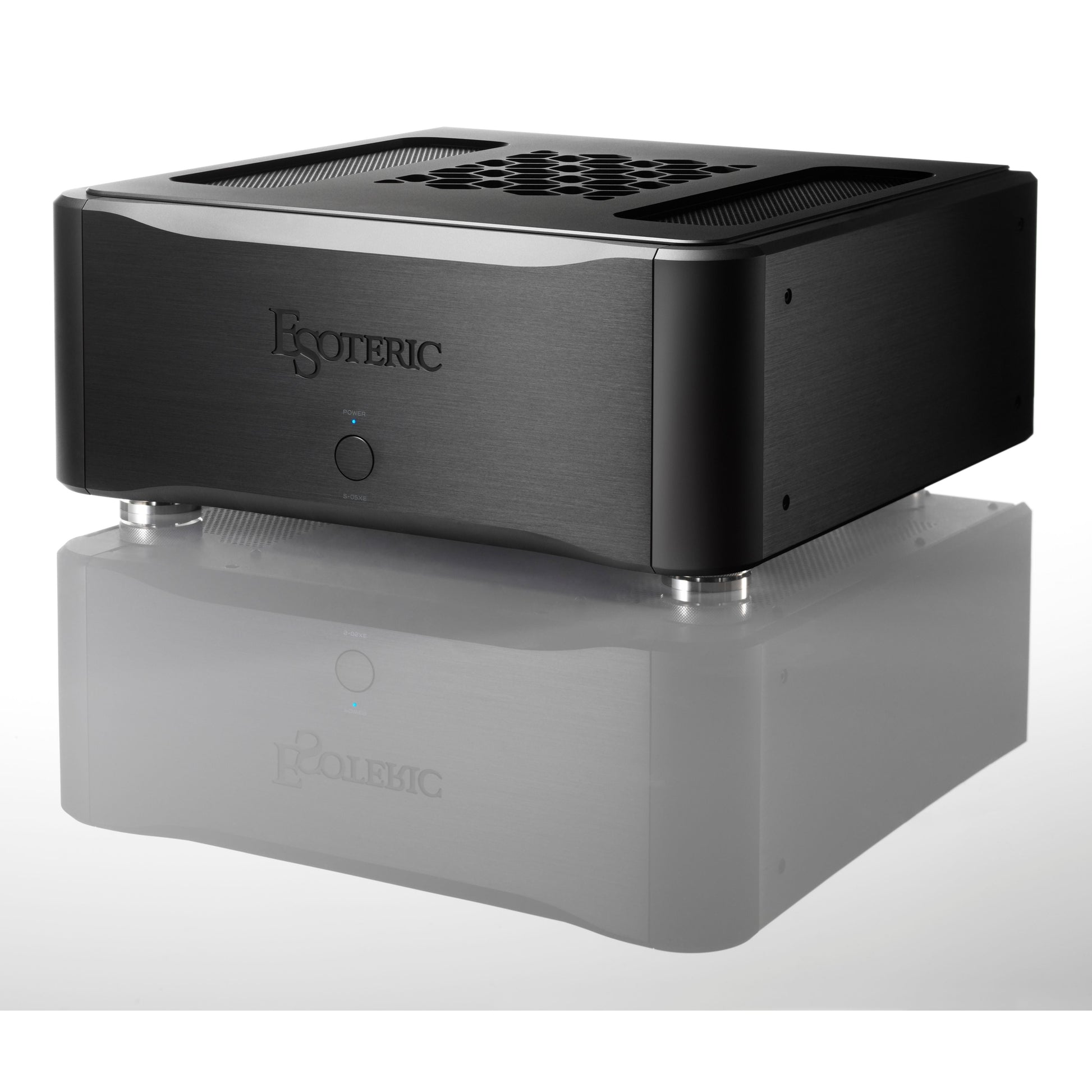

Esoteric S-05XE Class-A Stereo Amplifier

The S-05XE is a pure Class A amplifier featuring a powerful three-parallel push-pull configuration of bipolar transistors. It delivers 30 W per channel into 8 Ω (Class A), 60 W per channel into 4 Ω, and 120 W into 8 Ω (BTL). In practice, its performance far surpasses these figures, creating an impressive sense of scale and authority that belies its rated output.

The S-05XE’s exceptional sound quality vividly differentiates the timbre of each instrument, bringing music to life with dynamic energy and realism. This is achieved through the philosophy known as the “aesthetics of subtraction,” realized through advanced engineering techniques. With its pure single-ended design, signals take the shortest path. This minimalist design philosophy preserves the most vital harmonics in music, allowing it to be rendered with rich expression. The phase compensation circuit uses a simple, single-pole configuration, and the final stage is coil-less. Negative feedback (NFB) is minimized to prevent loss of dynamic energy.

Class A amplifiers inherently generate significant heat, stabilizing the temperature of the amplifier block is essential to achieving consistently high sound quality.
In a unique layout, all transistor elements are arranged in a single row at the lowest point of the amplifier block, where temperature variation is minimized. This ensures that all devices operate under identical thermal conditions. Comprehensive temperature management across the entire circuit enables optimal performance, with idle current stabilizing rapidly after power-up, allowing the S-05XE to deliver peak performance almost immediately.

The S-05XE employs high-fidelity components and minimizes internal impedance to deliver exceptional driving capability. This allows it to exert firm control over large-diameter speaker woofers and drive them effortlessly to their low-frequency limits. The PCB pattern utilizes 105 μm-thick copper conductors, while extra-thick gauge cables are securely fastened using bolt-mounted terminals rather than conventional clip-on connectors, significantly reducing contact resistance. In the drive stage, eight bus bars made from 1.0 mm-thick, high-purity OFC are employed. The speaker output section further adopts MOSFET switches to eliminate mechanical contacts and maintain signal integrity.

The S-05XE delicately renders the subtle gradation between silence and musical climaxes. A key contributor to its expressive low-level resolution is the newly designed, fully symmetrical balanced input buffer amplifier. This circuit converts all incoming music signals from upstream components into balanced signals before they reach the amplification stage, effectively eliminating common-mode noise.
In the XE model, the positive/negative and left/right balanced circuits are laid out in perfect symmetry to enhance operational accuracy. In addition, the power-supply smoothing circuits are independently designed for each channel, further refining overall sound quality. MOSFET switches, known for their minimal tonal coloration are used at all switching points within the audio signal path.

A photocoupler electrically isolates the input buffer amplifier from the control circuitry, further enhancing audio signal purity.

ES-Link Analog is an ideal signal transmission method that uses "current" instead of the conventional "voltage." Esoteric developed this method to improve the fidelity of signals transmitted from preamplifiers to power amplifiers. It transmits music energy purely from the preamplifier to the power amplifier using a current level approximately 100 times higher than that of conventional voltage transmission. Since it is unaffected by the impedance of the connecting cable, ES-Link Analog maintains an extremely high degree of signal integrity between the two components. Experience powerful, three-dimensional sound that is vividly lifelike, as if you were monitoring the performance directly from the analog console in the recording studio.
