In Stock in Black and Silver
The AP-701 stereo amplifier merges all of the elements desired in a power amp at a high level, creating a new standard.
With two toroidal core power supply transformers and two Ncore modules, the extravagant circuitry has a complete dual mono structure from input to output. A dual-mono structure, in which the channels are each completely mono, prevents interference between the left and right signals and achieves outstanding channel separation. This enables rich audio reproduction that provides a larger sound stage and more three-dimensional sound.
Hypex Ncore power amplifier modules realize both high efficiency and high audio quality. These two amplifier modules, which were tuned and designed specifically for TEAC, drive the speakers without losing any of the original musical expression, from delicate pianissimo to powerful fortissimo.
*1 4Ω *2 8Ω
The front, side, and rear panels are secured with 3mm-thick heavy sheet metal as the primary material. Then, joints that provide suspension are used at the junctures of the front, side, rear, and top panels. This enclosure with a flexible structure controls the vibration of the entire device to allow open and vibrant sound reproduction.
Despite the high output of this power amplifier, a fan-free design has been realized with circuit board placement calculated for airflow and precise layout of air inlets and outlets. Heat dispersion is increased by attaching the amplifier modules directly to the bottom panel. Along with the fin structure of the side panels, this reliably abates internal heat.
A floating structure keeps the transformers, which can easily cause vibration, detached from the bottom panel. The form of the side panel fins, which provide heat dispersion, have been adjusted to eliminate vibration.
In order to suppress vibrations that affect audio quality thoroughly, the TEAC original pin-point feet that utilize a new mechanism are attached to the bottom panel with appropriate allowance, while a number of screws fix the circuit boards to the chassis is minimized.

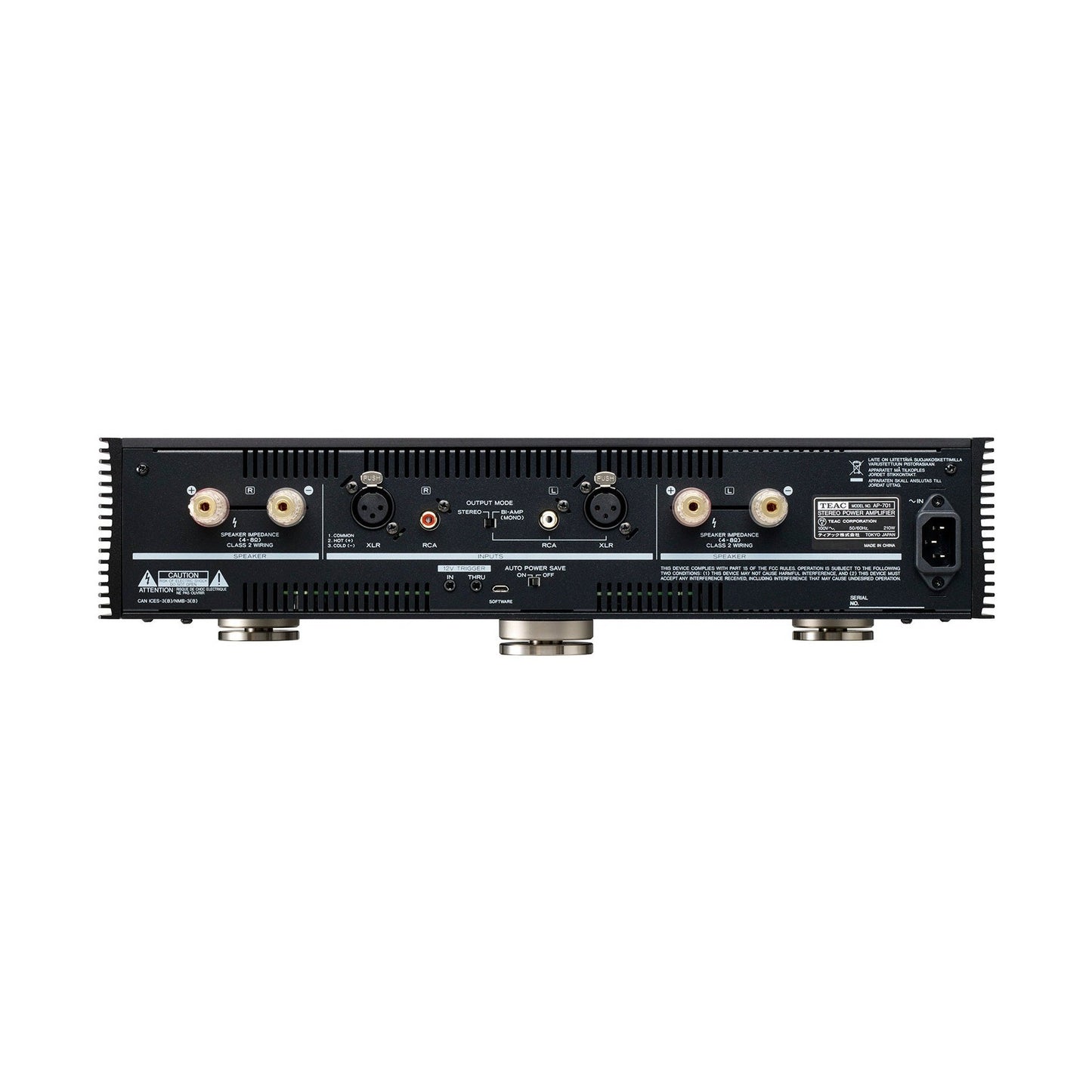

Slits are cut between each connector to ensure input circuit durability. In addition, direct wiring without connectors is used from the input circuits to deliver signals to the discrete buffer circuits without losing any of their clarity.
A reduction in height, as well as the chassis depth, gives you more placement options. Whether in the living room or home office, you can use this power amp to drive your favorite speakers as you like.
| Amplifier section | |
| Practical maximum output |
260W + 260W (4Ω, 1kHz, JEITA) 170W + 170W (8Ω, 1kHz, JEITA) |
| Rated output |
230W + 230W (4Ω, 1kHz, THD 1%) 125W + 125W (8Ω, 1kHz, THD 1%) |
| Total harmonic distortion |
0.003% (8Ω, 1kHz, 55W, JEITA) |
| S/N ratio |
110dB (8Ω, 1kHz, IHF-A) |
| Frequency response |
10Hz to 50,000Hz (+0dB, –6dB, 8Ω, JEITA) |
|
Analog audio inputs |
|
|
Balanced |
|
| Connectors |
XLR (HOT: 2) × 1 pair |
| Input sensitivity |
1.6V |
| Input impedance |
64kΩ (in STEREO mode), 32kΩ (in BI-AMP mode) |
|
Unbalanced |
|
| Connectors |
RCA (gold-plated) × 1 pair |
| Input sensitivity |
1.6V |
| Input impedance |
32kΩ (in STEREO mode), 16kΩ (in BI-AMP mode) |
|
Speaker output |
|
| Connectors |
Screw type × 1 pair (gold-plate, compatible with Banana plug) |
| Compatible speaker impedance |
4Ω to 8Ω |
|
External control |
|
|
Trigger input (12V TRIGGER IN) |
|
| Connector |
3.5mm Mono mini jack × 1 |
| Input level |
12V, 1mA |
|
Trigger output (12V TRIGGER THRU) |
|
| Connector |
3.5mm Mono mini jack × 1 |
|
Power |
AC120V, 60Hz (US/Canada) AC230V, 50Hz (UK/Europe) |
|
Power consumption |
210W |
|
Standby power |
0.4W |
|
Overall dimensions |
444 (W) × 111.3 (H) × 348.2 (D) mm (including protrusions) |
|
Weight |
9.9kg |
|
Operating Temperature |
＋5℃ to ＋35℃ |
|
Operating Humidity Range |
5% to 85% (no condensation) |
|
Storage Temperature Range |
–20℃ to ＋55℃ |
|
Included accessory |
Power cord, Footpad × 3, Owner's manual (including warranty) |
* Design and specification may be subject to change without notice.
* RoHS complied
