Advance Paris A12 APEX Integrated Amplifier

RRP - $4999

The APEX range is the result of the Advance Paris engineering team’s efforts to push the boundaries of our Classic range in terms of performance and functionality.

The A12 APEX features the hybrid design of our flagship integrated amplifiers, with high power output (190W in Class A/B under 8 Ω) and the same musicality that is recognized
worldwide. It has two power transformers to drive even the most demanding speakers on the market.

To celebrate the brand’s 30th anniversary, we are presenting a special limited edition 30TH EDITION with a black finish and white VU meters.

The A12 APEX combines timeless design with modern technology to deliver power, musicality and ease of use.

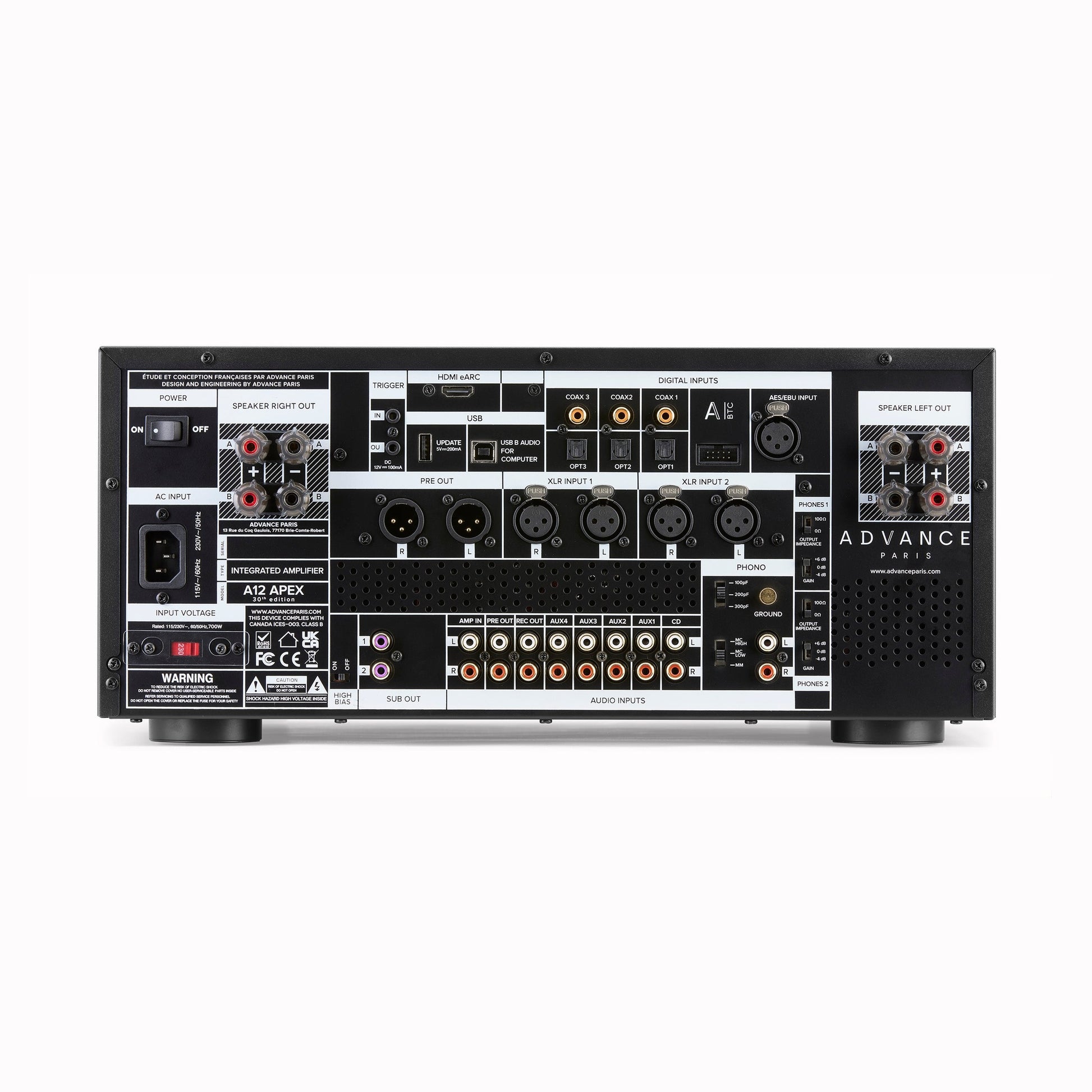

Connections & sources

• 8 analogue inputs: (5x) RCA, (1x) Phono MM/MC, (2x) XLR
• 8 digital inputs: 3 optical
  • 3 coaxial
  • 1 USB for computer
  • 1 AES-EBU
  • Bluetooth aptX HD - LL option (optional A-BTC module)
  • 1 HDMI eARC socket with A12 APEX start-up when the TV is switched on and volume control is engaged.


Functions & settings

• Settings: loudness, bass, treble, balance
• Automatic standby adjustable from 5 to 60 minutes

• Trigger OUT to synchronize the switching on/off of a separate power amplifier
• Trigger IN to power the A10 APEX on with the use of a compatible preamp/processor (typically using AMP-IN input)
• Connection possible for 2 subwoofers + separate PREOUT output (RCA and XLR) and AMP-IN input (RCA)
• Fixed REC-OUT output for recorder (cassette, MD, etc.)
• 110-220V voltage selector

Advanced options

• High-Bias switch: activates double Class A bias to enjoy Class A at higher power levels.

Key features

• Preamplifier with 2 ECC81/12AT7 tubes offering warm sound and great musicality.
• 2x190W Class A/B amplifier combining power and listening refinement with dual toroidal power supplies.
• High-Bias function activates double Class A bias to enjoy Class A at a higher power.
• Bluetooth aptX HD - LL option (A-BTC module): allows you to send music from your smartphone/tablet/computer to the A12 APEX or send sound from a source connected to the A12 APEX to Bluetooth headphones.
• Zone A and B: Dual speaker outputs

TECHNICAL SPECIFICATIONS

• Output power 8Ω 190W (THD+N 1%, 1kHz, 2 channels driven)
• Output power 8Ω (20Hz - 20kHz, THD+N inf. to 0.07% 180W (2 channels driven)
• Output power 4 Ω 292W (THD+N 1%, 1kHz, 2 channels driven)
• Output power 4Ω (20Hz - 20kHz, THD+N inf. to 0.07% 272W (2 channels driven)
• Frequency response (+/-1dB) 20Hz > 80 kHz (43W, 8 Ω)
• Distortion 0.047% (1 kHz, 135W, 8 Ω)
• Signal-to-noise ratio 104,8 dB (1 kHz, 135W, 8 Ω)
• AC input compatibility 115/230V 50/60Hz
• Transformer type/power (2x) Toroïdal / (2x) 280 VA
• DAC ESS9039
• Digital inputs (3x) Optique : 24bit - 192kHz PCM
  • (3x) Coaxial : 24bit - 192kHz PCM
  • (1x) USB audio 24bit/192 kHz PCM - DSD64 - DSD128
  • HDMI eARC : PCM Stereo
  • AES-EBU : 24bit - 192kHz PCM
• A-BTC input For A-BTC Bluetooth receiver (optional)
• Analogue inputs
  • RCA LINE level (5x)
  • MM PHONO level (1x) + GROUND
  • XLR Line level (2x)
• Analogue outputs REC-OUT (x1), PRE-OUT (x1) RCA - (1x) XLR, SUB-OUT (x2)
• Headphone jack  Jack 6.35mm, Mini-jack 3.5mm
• High Bias  Yes, ON/OFF switch
• Update  Via USB key on ‘UPDATE’ port
• Speaker terminals  (2x) Screw terminals compatible with bare cable, spade and banana plugs
• Remote control  Infrared, REM-19, compatible with A12 APEX and ACD
• Trigger jack  (2x) Input and Output, 12V
• Product dimensions (WxHxD in cm)  43x19.2x45.4
• Packaging dimensions (WxHxD in cm)  54.5x29.5x53.5
• Gross weight (kg) / Net weight (kg)  21.9 / 18.25
• Model no.  A12 APEX 30TH EDITION
• EAN code  3 760 179 292 770
